Advantech PCI-1274-12AE Multiple 12 Channel Latch/Compare Trigger Function

PB Tech price

NZD $ 996 .80

$ 996 .80

Advantech PCI-1274-12AE Multiple 12 Channel Latch/Compare Trigger Function

Brand: Advantech
MPN: PCI-1274-12AE
Part #: IPCAVH220964
UPC:

PB Tech price

NZD $ 996 .80

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

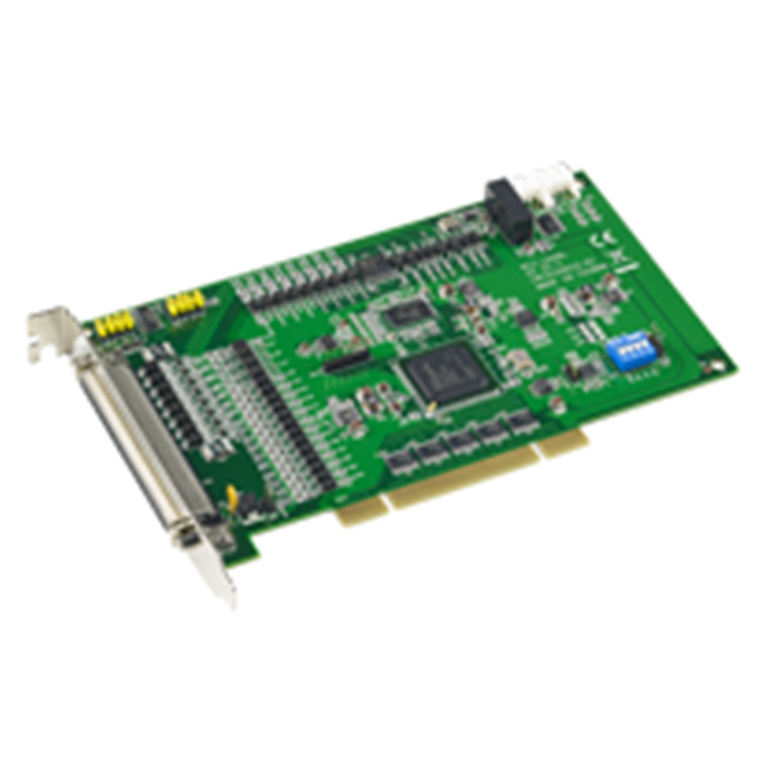

Click or hover over image to enlarge

Brand: Advantech
MPN: PCI-1274-12AE
Part #: IPCAVH220964
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The PCI-1274 is a basic motion control PCI card with multi-latch/compare trigger function. PCI-1274 utilizes the high-performance FPGA to provide Point-to-Point, Latch and Compare Trigger with a SoftMotion algorithm inside to perform precise position control. PCI-1274 also has internal FIFO to enable high speed position compare and trigger pulse output. Users can link compare trigger outputs to latch inputs one by one, or link all compare trigger outputs to single channel of latch input only. Integrating a camera and sensor realizes AOI applications such as linear screw, and IC and vision inspection sorting machine. In addition, all Advantech motion controllers use the "Common Motion API" architecture which is a unified user programming interface and graphical utility. This architecture saves application maintenance and upgrades. Programmers can benefit from integrating any Advantech SoftMotion controller without changing large amounts of the application code. User-friendly examples decrease programming workload, helping users complete configuration and diagnosis easily.

- Encoder input is 4 MHz for 4xAB mode, 1 MHz for CW/CCW mode
- Pulse output up to 1 Mpps and the output type can be switched to differential or single-end by jumper setting
- Support velocity motion
- Supports speed override
- Supports T/S-curve and programmable acceleration/deceleration rate
- Support 16 Home modes
- Support programmable interrupt
- Latch and Compare max. frequency up to 1kHz
- PCI-1274-12AE support 12-ch latch and 12-ch Compare function

Specifications

Pulse Type Motion Control

Motor Driver Support

Pulse-type servo/stepping

Number of Axes

4 (PCI-1274-12AE)

Interpolation

2-axis linear interpolation Only for PCI-1274-12AE

Max. Output Speed

1 Mpps

Step Count Range

±2, 147, 483, 646

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) , CW/CCW (2-pulse type) or single-ended +5V output

Position Counters

Range of command and actual position

Velocity Profiles

T-Curve, S-Curve

Local I/O

Machine Interfaces: LMT+, LMT-, ORG
Servo Driver Interfaces: ALM, INP

Encoder Interface

Input Type

Quadrature (A/B phase) or up/down

Counts per Enc. Cycle

x1, x2, x4 (A/B phase only)

Input Range

5~10 V

Isolation Protection

2,500 VDC

Max. Input Frequency

4 MHz under 4xAB mode

General

Bus Type

Universal PCI V2.2

Connectors

1 x 100-pin SCSI female connector

Dimensions (L x H)

175 x 100 mm (6.9" x 3.9")

Power Consumption

Typical: 5 V @ 0.6 A
Max.: 5 V @ 1 A

Humidity

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Storage Temperature

-20 ~ 85°C (-4 ~ 185°F)

Manufacturer Part No:

PCI-1274-12AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220964

Product Model:

PCI-1274-12AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
