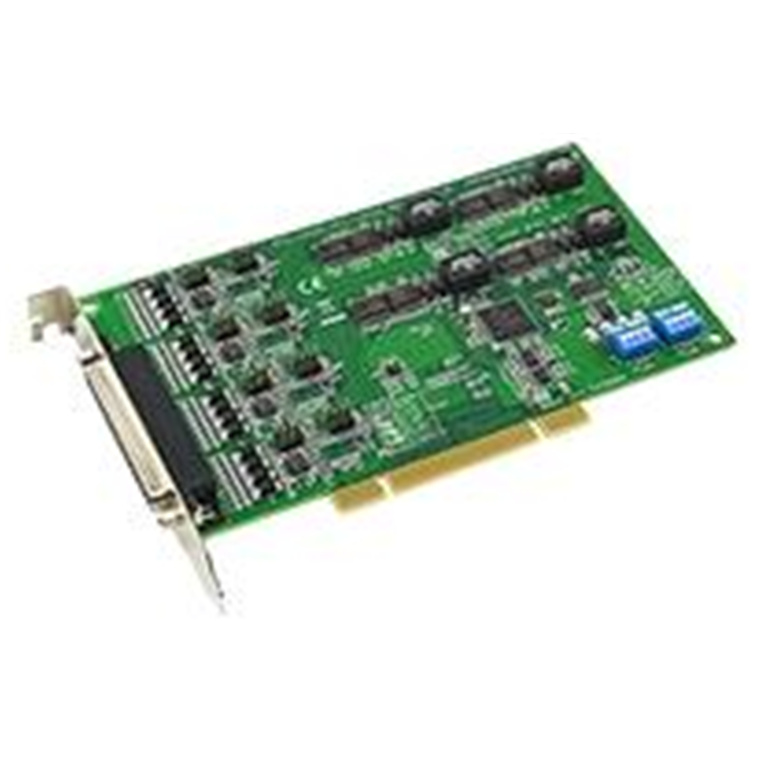

Advantech PCI-1612C-CE 4-port RS-232/422/485 PCI Communication Card with Isolation
- Brand: Advantech
- MPN: PCI-1612C-CE
- Part #: IPCAVH220972

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220972/Advantech-PCI-1612C-CE-4-port-RS-232422485-PCI-Com
Features
- Universal PCI v2.2
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting
- 4 x RS-232 or RS- 232/422/485 ports
- Supported operating systems: Windows 7/8/10, and Linux.
- XR17V354 UART with 256-byte FIFOs
For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1610/file/PCI-1602_1604_1610_1612_DS(082219)20190829165712.pdf
Specifications
General
Bus Type
Universal PCI v2.2
Certification
CE, FCC class A
Connectors 1x Female
DB37
Dimensions (L x W)
174.65 x 106.67 mm (6.88"x 4.2")
Power Consumption
260 mA @ +3.3 V (typ.)
Communications
Comm. Controller
XR17V354
Data Bits
5, 6, 7, 8
FIFO
256 bytes
Parity
None, Odd, Even, Mark and Space
Speed
50 bps ~ 921.6 kbps
Stop Bits
1, 1.5, 2
Software
Bundled Software ICOM Tools
OS Support
Windows 7/8/10, and Linux. (You can reference the SW release note to know the supported OS version.)
Environment
Operating Humidity
5 ~ 95 % RH, non-condensing
Operating Temperature
-10 ~ 60°C (14 ~ 140°F)
Storage Temperature
-25 ~ 85°C (-13 ~ 185°F)
Protection
Model Name
PCI-1612C
ESD Protection
15KV (air), 8KV (contact)
EFT Protection
1000 V
Surge Protection
1000 V
Isolation Protection
3000 VDC
