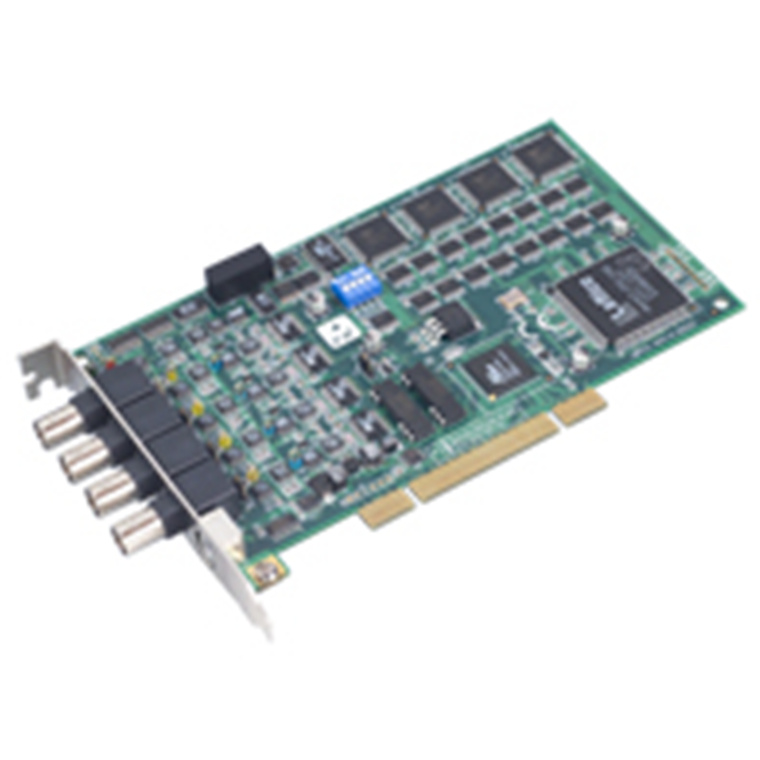

Advantech PCI-1714U-BE 30 MS/s, 12-bit, 4-ch Simultaneous Analog Input PCI Card

PB Tech price

NZD $ 2,854 .26

$ 2,854 .26

Advantech PCI-1714U-BE 30 MS/s, 12-bit, 4-ch Simultaneous Analog Input PCI Card

Brand: Advantech
MPN: PCI-1714U-BE
Part #: IPCAVH220991
UPC:

PB Tech price

NZD $ 2,854 .26

In stock at Supplier

Delivery: Order now and it ships on 29 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCI-1714U-BE
Part #: IPCAVH220991
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech PCI-1714U-BE 30 MS/s, 12-bit, 4-ch Simultaneous Analog Input PCI Card

PCI-1714U ais advanced high-performance data acquisition cards based on the PCI bus. With a large FIFO of 32,768 for each channel, the maximum sampling rate of PCI-1714U can get up to 30 MS/s, on each channel, with an emphasis on continuous, non-stop, high-speed, streaming data of samples to host memory.

- 4 single-ended analog input channels
- 12-bit A/D converter, with up to 30 MHz sampling rate
- Multiple A/D triggering modes
- Onboard FIFO memory 32,768 samples
- 4 A/D converters simultaneously sampling
- Programmable gain
- Programmable pacer/counter
- BoardID™ switch
- Universal PCI Bus (supports 3.3 V or 5 V PCI bus signals)

For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1714/file/PCI-1714U_DS(072023)20230721161154.pdf

Specifications

Analog Input

Channels

Input Range

±0.5 V, ±1 V, ±2.5 V, ±5 V

Resolution(Bits)

12-bit

Sampling Rates(S/s)

30 MS/s (per channel)

General

Bus Type

Universal PCI V2.2

Programming Language

C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

I/O Connectors

4 x BNC connector (for AI)
1 x PS/2 connector (for Ext. clock and trigger)

Dimensions (L x H)

175 x 100 mm (6.9" x 3.9")

Power Consumption

Typical: 5 V @ 850 mA ; 12 V @ 600 mA
Max.: 5 V @ 1 A; 12 V @ 700m A

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Storage Temperature

-20 ~ 85°C (-4 ~ 185°F)

Storage Humidity

5 ~ 95% RH, non-condensing

Manufacturer Part No:

PCI-1714U-BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220991

Product Model:

PCI-1714U-BE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
