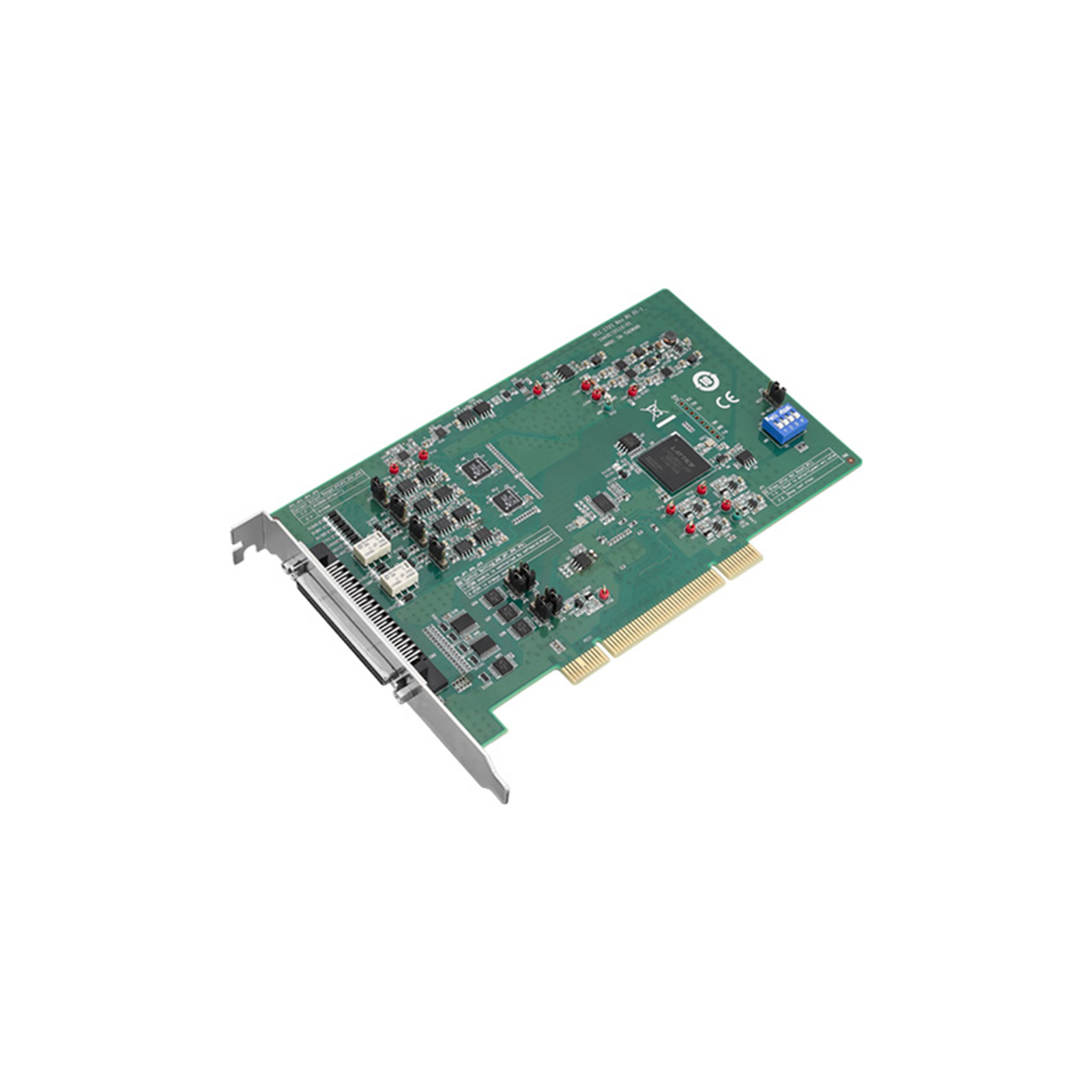

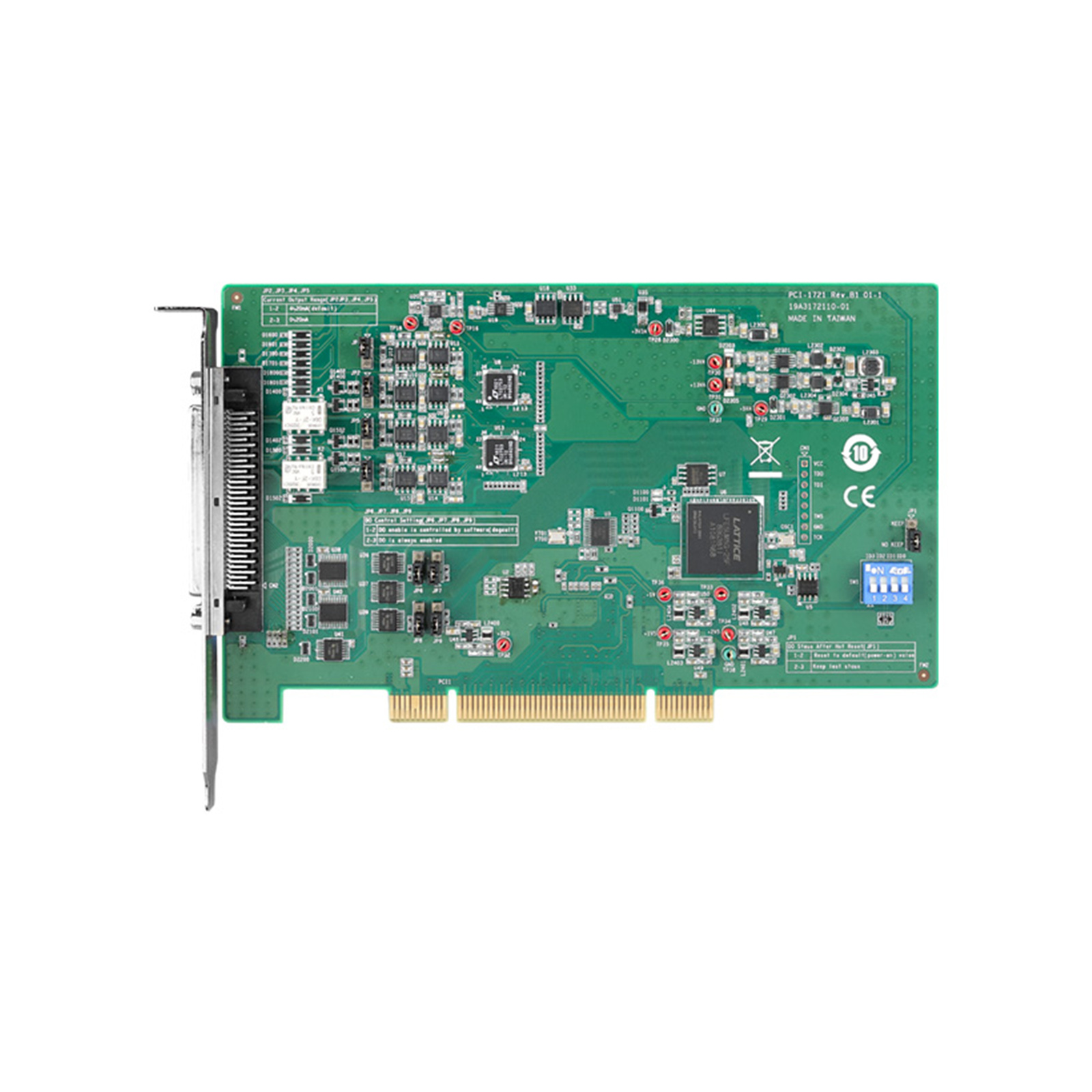

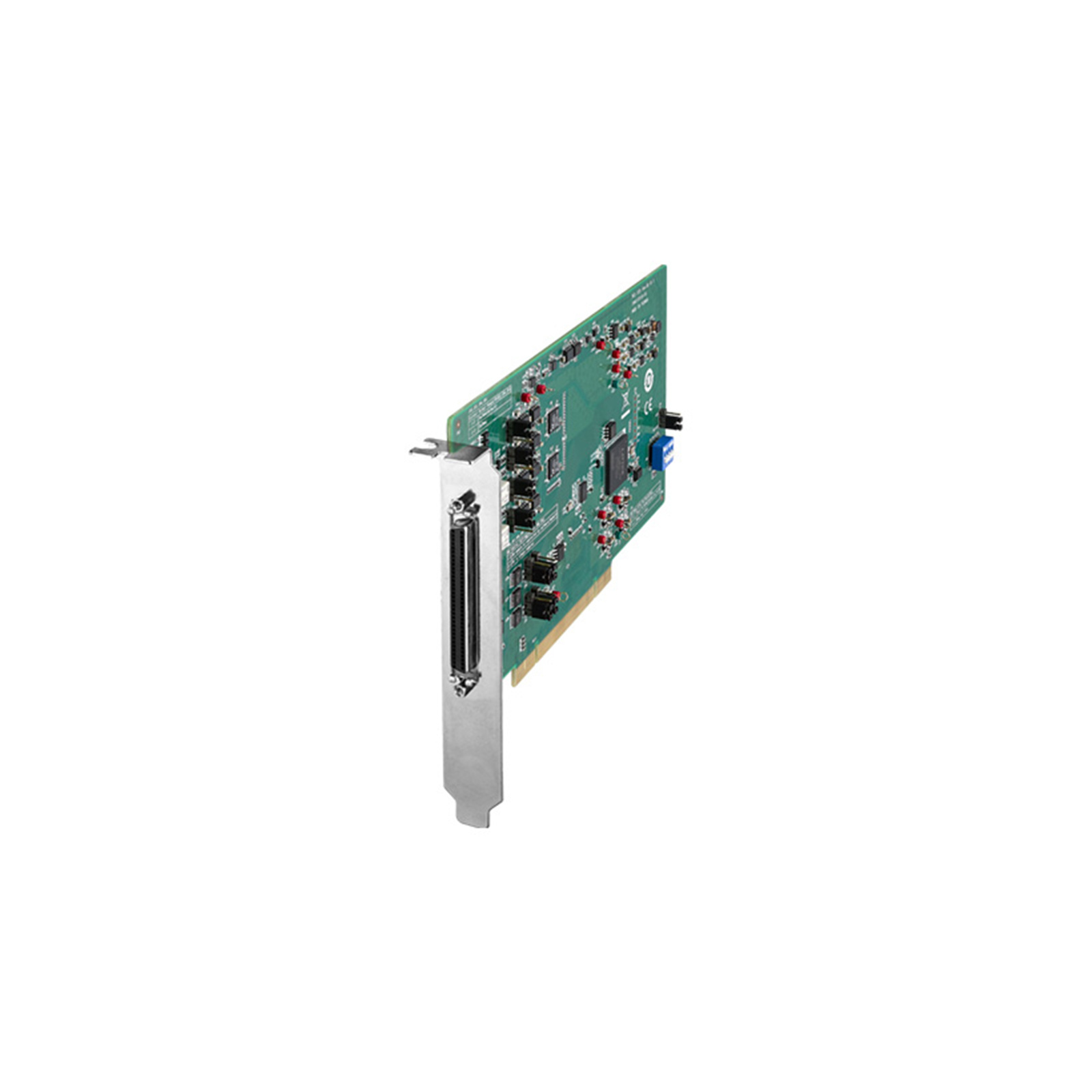

Advantech PCI-1721-BE 12bit, 4ch High-speed Analog Output Card

PB Tech price

NZD $ 1,251 .44

$ 1,251 .44

Advantech PCI-1721-BE 12bit, 4ch High-speed Analog Output Card

Brand: Advantech
MPN: PCI-1721-BE
Part #: IPCAVH221000
UPC:

PB Tech price

NZD $ 1,251 .44

In stock at Supplier

Delivery: Order now and it ships on 29 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCI-1721-BE
Part #: IPCAVH221000
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

12-bit, 4-ch Analog Output PCI Card with 16-ch Digital I/O

- 10 MHz maximum digital update rate
- Synchronized output function
- 16-ch DI/O and one 10 MHz 16-bit resolution counter
- Four analog output channels with 1,024 samples FIFO buffer
- A 12-bit DAC is equipped for each of analog output channels
- Real-time waveform output function with internal/external pacer
- Flexible output types and range settings
- Keeps the output settings and values after system hot reset
- Auto calibration function
- BoardID™ switch

Specifications

Analog Output

Channels

Output Ranges

0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA

Resolution

12-bit

Update Rate(S/s)

10 MS/s

Counter/Encoder Input

Channels

Counting Range

16-bit

Digital Input

Channels

16 (TTL)

Digital Output

Channels

16 (TTL)

General

Programming Language

C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

Manufacturer Part No:

PCI-1721-BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221000

Product Model:

PCI-1721-BE

Warranty: 12 months *
