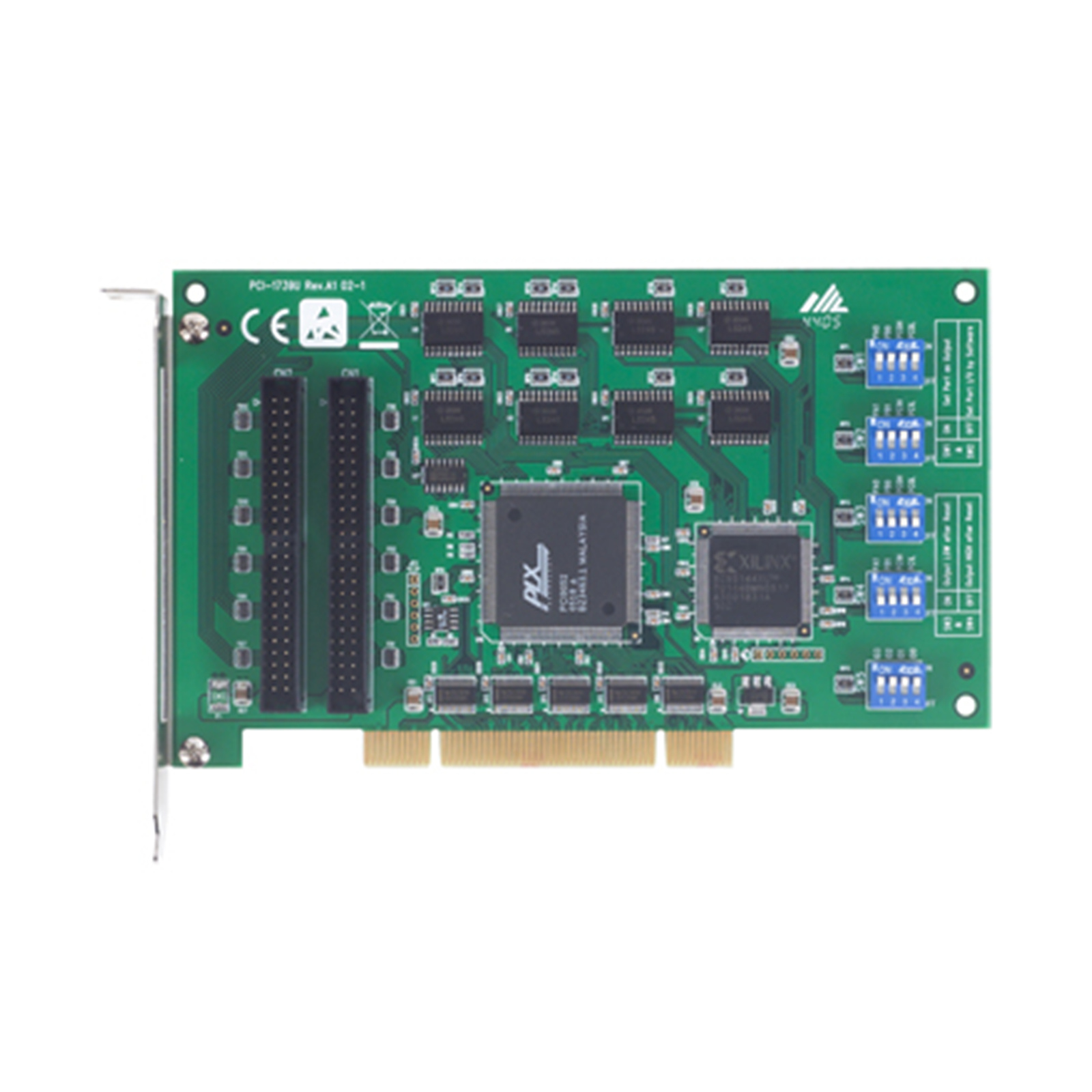

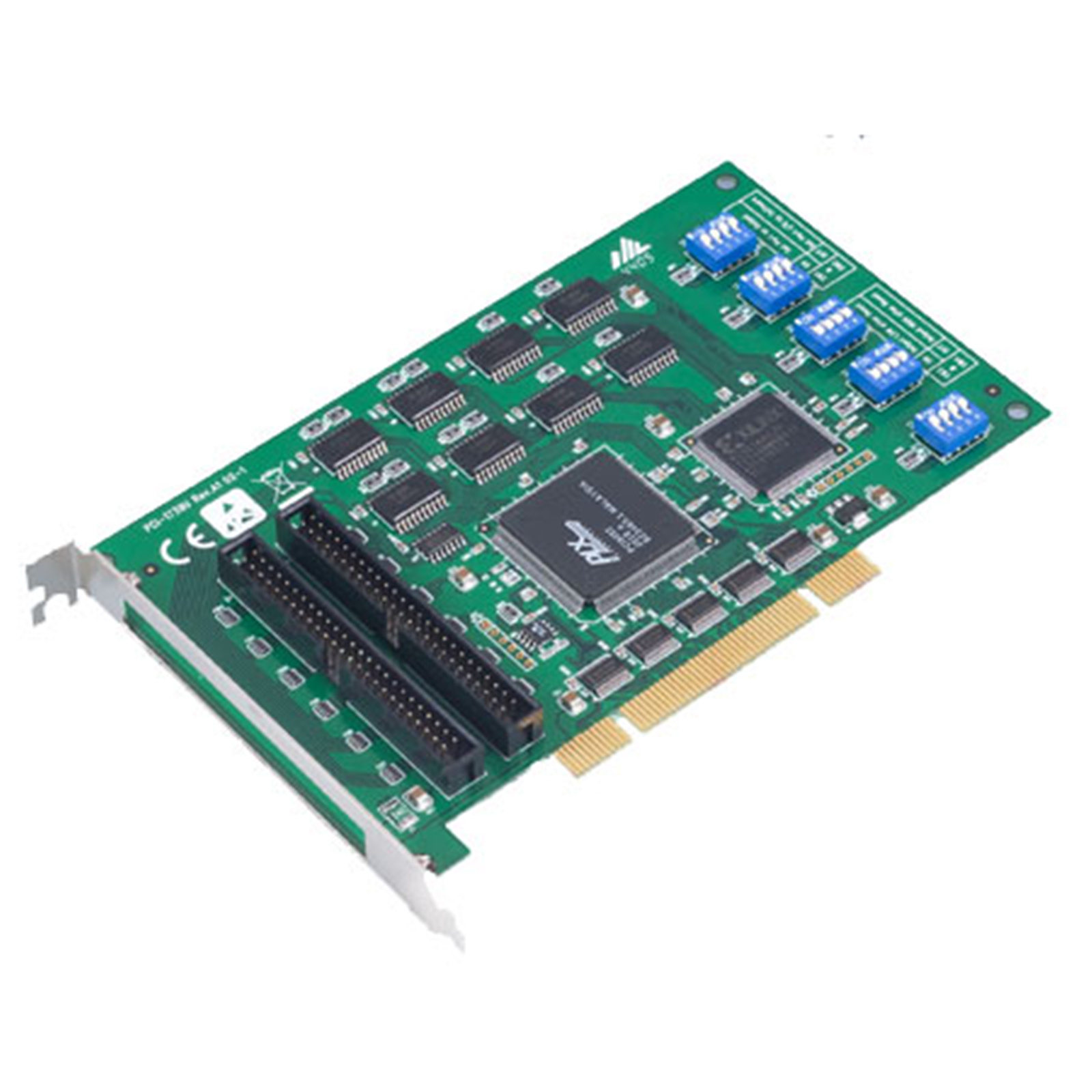

Advantech PCI-1739U-AE 48-ch Digital I/O Universal PCI Card
- Brand: Advantech
- MPN: PCI-1739U-AE
- Part #: IPCAVH221018

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221018/Advantech-PCI-1739U-AE-48-ch-Digital-IO-Universal
Features
48-ch Digital I/O Universal PCI Card
- ISA-Compatible with PCL-731
- 48 TTL digital I/O channels
- Emulates mode 0 of 8255 PPI
- Interrupt handling
- Opto-22 compatible 50-pin connectors
- Output status readback
- PCI universal card
Specifications
Digital Input
Channels
PCI-1739U: 48 (shared with output)
Compatibility
5 V/TTL
Input Voltage
PCI-1737U/1739U: Logic 0: 0.4V max.
Logic 1: 2.4V min.
Interrupt Capable
PCI-1739U: 2
Digital Output
Channels
PCI-1739U: 48 (shared with input)
Compatibility
5 V/TTL
Output Voltage
PCI-1737U/1739U: Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability
PCI-1737U/1739U: Sink: 0.4 V @ 24 mA
Source: 2.4 V @ 15 mA
General
Bus Type Universal
PCI V2.2
I/O Connectors
PCI-1739U: 2 x 50-pin box header
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
PCI-1739U: 5V @720 mA (max.)
Operating Temperature
0 ~ 65°C (32 ~ 149°F)
Storage Temperature
-25 ~ 80°C (-13 ~ 176°F)
Storage Humidity
5 ~ 95% RH, non-condensing
