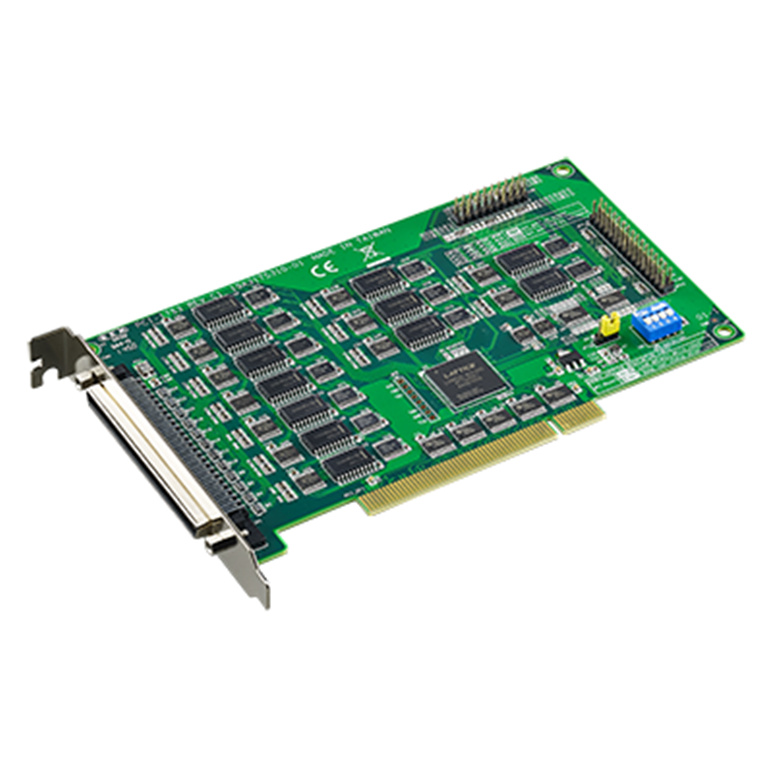

Advantech PCI-1753-CE 96-ch Digital I/O PCI Card
- Brand: Advantech
- MPN: PCI-1753-CE
- Part #: IPCAVH221031

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221031/Advantech-PCI-1753-CE-96-ch-Digital-IO-PCI-Card
Features
- Up to 96 TTL digital I/O lines
- Emulates mode 0 of 8255 PPI
- Buffered circuits for higher driving capacity than the 8255
- Multiple-source interrupt handling capability
- Interrupt output pin for simultaneously triggering external devices with the interrupt
- Output status read-back
- "Pattern match" and "Change of state" interrupt functions for critical I/O monitoring
- Keeps the output settings and values after system hot reset
- Supports both dry and wet contact
- High-density 100-pin SCSI connector
For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1753/file/PCI-1753_DS(061623)20230616164033.pdf
Specifications
MPN
PCI-1753-CE
96-ch Digital I/O PCI Card
Digital Input/Output
Channels
96 digital I/O lines for PCI-1753
Programming Mode
8255 PPI mode 0
Compatibility
5 V/TTL
Input Voltage
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Output Voltage
Logic level 0:0.8 V max. @+24mA (Sink)
Logic level 1:2.0 V min. @-15mA (Source)
Interrupt Inputs
4 (PC00,PC10,PC20,PC30)
General
Bus Type
PCI V2.2
I/O Connector
1 x 100-pin SCSI female connector
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
Typical: 5 V @ 400 mA
Max.: 5 V @ 2.7 A
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-20 ~ 70°C (-4 ~ 158°F)
Storage Humidity
5 ~ 95% RH, non-condensing
