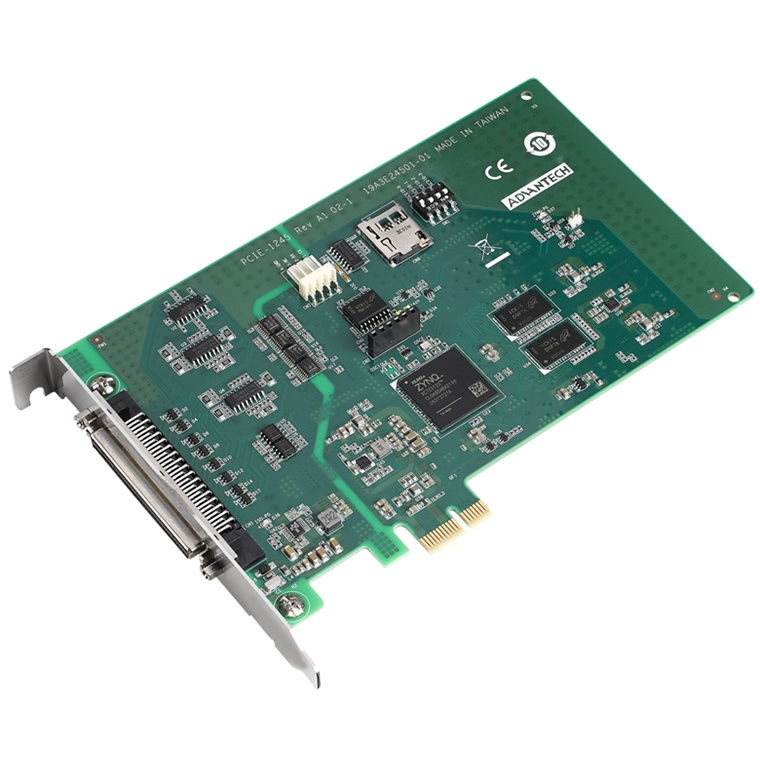

Advantech PCIE-1245-AE Full 4-Axis Motion Control Universal PCI Express Card

PB Tech price

NZD $ 1,333 .34

$ 1,333 .34

Advantech PCIE-1245-AE Full 4-Axis Motion Control Universal PCI Express Card

Brand: Advantech
MPN: PCIE-1245-AE
Part #: IPCAVH221058
UPC:

PB Tech price

NZD $ 1,333 .34

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCIE-1245-AE
Part #: IPCAVH221058
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech PCIE-1245-AE Full 4-Axis Motion Control Universal PCI Express Card

- Encoder input: 5 MHz for CW/CCW,P/D,AB mode; Pulse output: up to 5 MHz
- Supports memory buffer (10 K points) for trajectory planning
- Supports point-to-point, line and E-Gear; Supports hardware emergency input
- Circular and helical interpolation (PCIE-1245 only)
- Position latch up to 10KHz and memory buffer 1K points (PCIE-1245 only)
- Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points (PCIE-1245 only)
- 1D&2D plane position compensation (PCIE-1245 only)
- Gantry mode by semi-closed loop pulse train control (PCIE-1245 only)
- Dynamic PWM output for velocity following (PCIE-1245 only)

For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1245/file/PCIE-1245_1245E_DS(052722)20220530104958.pdf

Specifications

Pulse Type Motion Control

Motor Driver Support

Pulse-type servo/stepping

Number of Axes

Interpolation

Linear, circular, helical interpolation

Max. Output Speed

5 MHz

Step Count Range

±2, 147, 483, 646

Pulse Output Type

Pulse/Direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type), AB phase

Position Counters

Range of command and actual position

Velocity Profiles

T-Curve, S-Curve

Local I/O

Machine Interfaces: LMT+, LMT-, ORG
Servo Driver Interfaces: ALM, INP
Motion I/O: 2-ch CMP, 2-ch LTC
General Digital I/O: 8-ch DI, 8-ch DO

Encoder Interface

Input Type

CW/CCW, Pulse/Direction, AB x1, x2, x4

Input Range

EIA Standard RS-422

Isolation Protection

All isolation 1400 V

Max. Input Frequency

5MHz x1, x2, x4 (A/B phase only)

General

Bus Type

PCI Express x1

Connectors

1x 68-pin SCSI female connector

Dimensions (L x H)

175 x 100 mm (6.9" x 3.9")

Power Consumption

Typical: 3.3 V@530 mA; 12 V@25 mA
Max: 3.3 V@800 mA; 12 V@45 mA

Humidity

5~95% RH non-condensing (refer to IEC 60068-2-3)

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Storage Temperature

-20 ~ 85°C (-4 ~ 185°F)

Manufacturer Part No:

PCIE-1245-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221058

Product Model:

PCIE-1245-AE

Warranty: 12 months *
