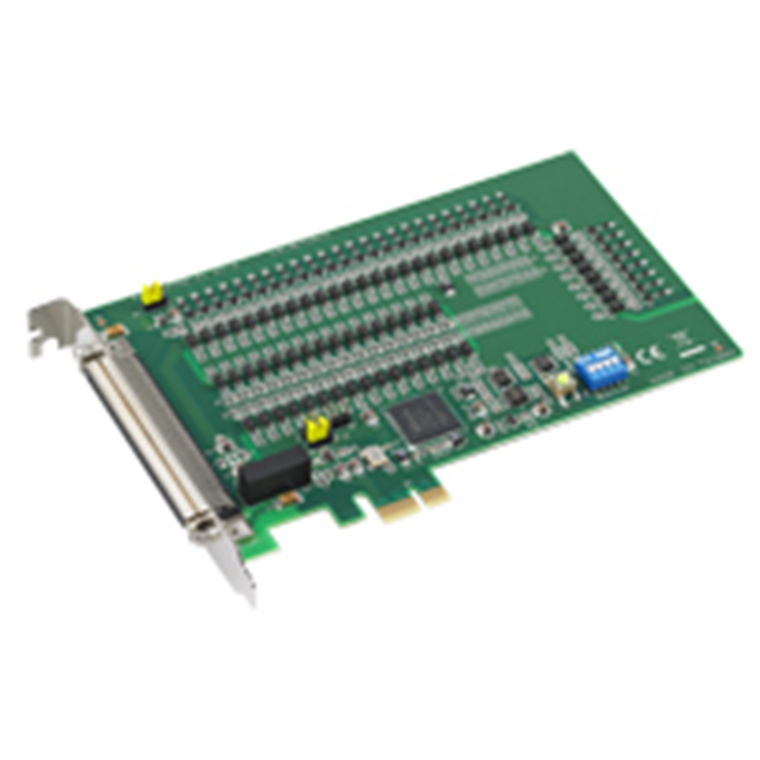

Advantech PCIE-1756H-BE 64-ch Isolated Digital I/O PCI Express Card
- Brand: Advantech
- MPN: PCIE-1756H-BE
- Part #: IPCAVH221085

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221085/Advantech-PCIE-1756H-BE-64-ch-Isolated-Digital-IO
Features
Advantech PCIE-1756H-BE 64-ch Isolated Digital I/O PCI Express Card
- 32-ch isolated digital input
- 32-ch isolated digital output with wide output range (5 ~ 40 VDC)
- Interrupt handling capability
- Software-selectable digital filter time for all DI channels (PCIE-1756H only)
- Output status read back
- Retains the output settings and values after system hot reset
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1756/file/PCIE-1756_H_DS(080922)20221003181349.pdf
Specifications
Isolated Digital Input
Channels
32
Input Voltage
Logic 03 V max.
Logic 110 V min. (30 VDC max.)
Input Current
10 VDC @ 2.97 mA
20 VDC @ 6.35 mA
30 VDC @ 9.73 mA
Interruptible Channels
PCIE-1756H: 32
Isolation Protection
2,500 VDC
Overvoltage Protection
70 VDC
ESD Protection
2,000 VDC
Opto-Isolator Response
50 µs
Isolated Digital Output
Channels
32
Output Type
Sink (NPN)
Isolation Protection
2,500 VDC
Output Voltage
5 ~ 40 VDC
Sink Current
500 mA max./channel
Opto-isolator Response
50 µs
General
Bus Type
PCI Express V1.0
I/O Connectors
1 x 100-pin SCSI, female
Dimensions (L x H)
168 x 100 mm (6.6" x 3.9")
Power Consumption
Typical3.3 V @ 385 mA
Max.3.3 V @ 430 mA; 12V @ 55 mA
Operating Temperature
0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature
-20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity
5 ~ 95% RH, non-condensing
