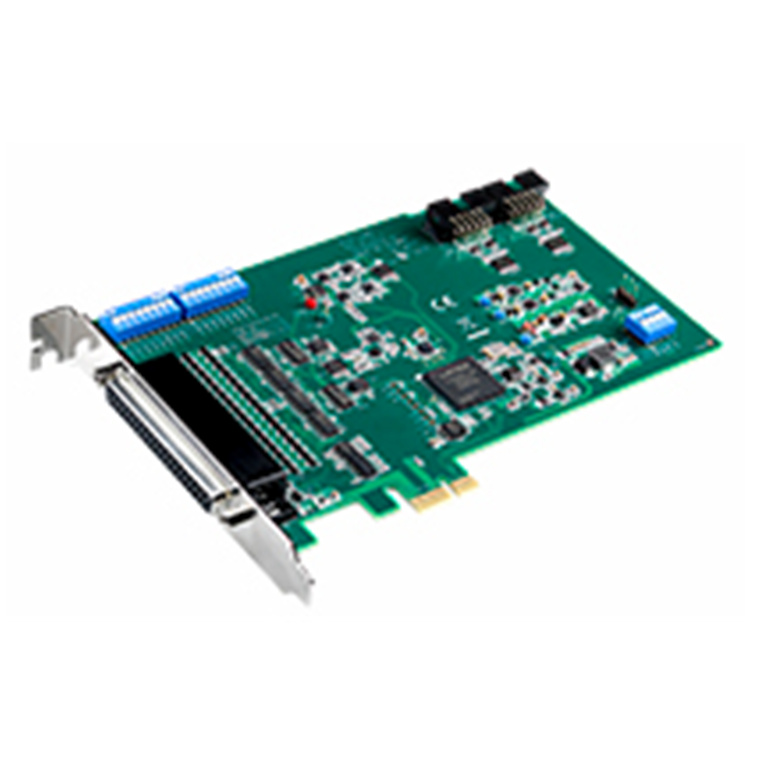

Advantech PCIE-1805-AE 1MS/s, 16-bit, 32-ch Analog Input PCIE Card

Brand: Advantech
MPN: PCIE-1805-AE
Part #: IPCAVH221098
UPC:

PB Tech price

NZD $ 1,009 .40

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCIE-1805-AE
Part #: IPCAVH221098
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- 32-ch single-ended or 16-ch differential or a combination of analog input
- 16-bit A/D converter, with up to 1MHz sampling rate
- Auto calibration
- Current measurement (0-20mA or 4-20mA)
- Support digital and analog triggers
- Multi-card synchronization

For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1805/file/PCIE-1805_DS(031220)20200313115253.pdf

Specifications

MPN

PCIE-1805-AE
1MS/s, 16bit, 32-ch Analog Input PCIE Card

Analog Input

Channels

32 single-ended, 16 differential, or combination

Resolution

16 bits

Max. Sampling Rate

1MS/s, shared by all enabled channels

Overvoltage Protection

30 Vp-p

Input Impedance

AI+ to AGND (Single Ended): >1000 GO in parallel with 9 pF
AI+ to AI- (Differential): >1000 GO in parallel with 6 pF

Sampling Modes

Software and onboard programmable pacer

Input Range

±10 V/±5 V/±2 V/±1 V/0 ~ 20 mA/4 ~ 20 mA

Offset error

< ±0.5 mV (Voltage Mode);
< ±2.5 µA (Current Mode)

Gain error

< ±0.01 % (Voltage Mode);
< ±0.05 % (Current Mode)

RMS Noise

0.1mV

Auto calibration

Yes

Multi-card synchronization

Yes

Trigger & Clock Input

Trigger mode

Start, delay to start, stop, delay to stop

Trigger source

2 external digital triggers and 2 analog triggers from AI channels

Clock input

2 digital trigger inputs, and 1 conversion clock input

Trigger Input voltage

Logic 0: 0.8 V max. (0 V min.)
Logic 1: 2.0 V min. (5 V max.)

Trigger and Clock Output

Channels

2 multi-function outputs

Output capability

Logic 0: 0.8 V max. @ 10 mA
Logic 1: 2.0 V min. @ -10 mA

General

Bus Type

PCI Express x1

I/O Connector

1 x DB62 female connector

Dimensions (L x H)

168 x 98 mm (6.6" x 3.9")

Power Consumption

+3.3 V 300 mA typ./320mA max.
+12 V 70mA typ. / 90mA max.

Operating Temperature

0 ~ 60° C (32 ~ 140° F) (refer to IEC 68-2-1, 2)

Storage Temperature

-20 ~ 70° C (-4 ~ 158° F)

Storage Humidity

5 ~ 95% RH, non-condensing (refer to IEC 68-2-3)

Manufacturer Part No:

PCIE-1805-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221098

Product Model:

PCIE-1805-AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
