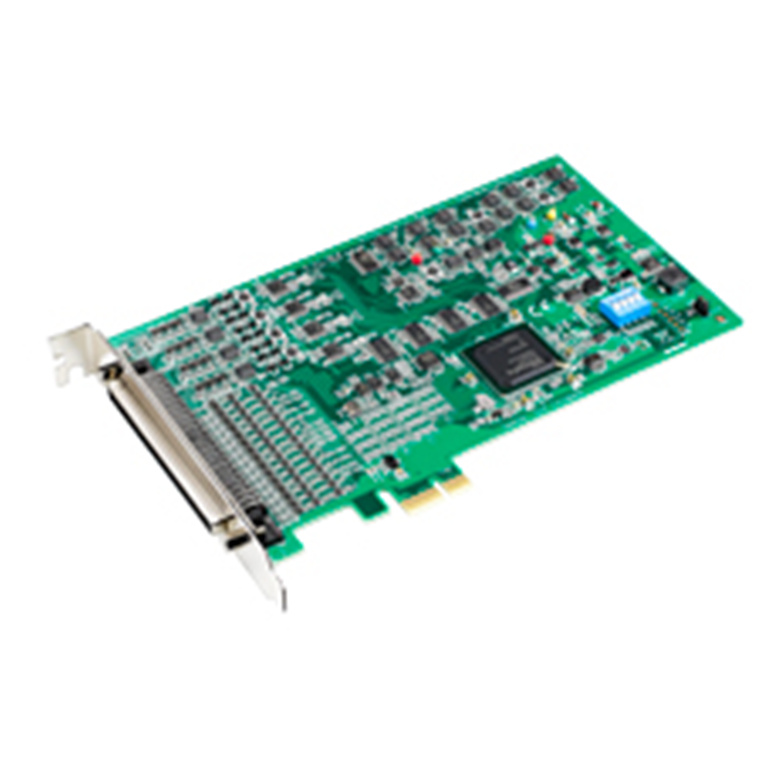

Advantech PCIE-1813-AE 38.4 kS/s/ch, 26-bit, 4-ch, Multifunction PCIE Card

PB Tech price
PB Tech price
NZD $ 1,814 .64
$ 1,814 .64
$1,814.64  +GST
$1,814.64

Advantech PCIE-1813-AE 38.4 kS/s/ch, 26-bit, 4-ch, Multifunction PCIE Card

  • Brand: Advantech
  • MPN: PCIE-1813-AE
  • Part #: IPCAVH221101
  • UPC:
PB Tech price
NZD $ 1,814 .64 $ 1,814 .64


Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,814.64  +GST
$1,814.64

Features

- 4 simultaneous sampling analog inputs, up to 38.4 kS/s, 26-bit resolution
- Full, half, and quarter-bridge sensor input with built-in anti-aliasing filter
- 2 analog outputs, up to 3 MS/s, 16-bit resolution
- Four 32-bit programmable encoder counters/ timers/ encoder counters
- 32 programmable DI/Os with interrupt functions
- Board ID switch
- Full automatic calibration

For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1813/Product%20-%20Datasheet/PCIE-1813_DS(01.16.19)20190116154050.pdf

Specifications

MPN

PCIE-1813-AE
38.4 kS/s, 26-bit, 4-ch, simultaneous sampling, universal bridge input, multifunction PCI Express card

Analog Input Overview

Channels

4

Resolution

26 bits

Sample Rate

38.4 kS/s max. simultaneous

Voltage Input

Input Ranges

±10 V, ±5 V, ±2.5 V, ±1.25 V, ±625 mV, ±312.5 mV

Accuracy

±0.01% of FSR

Bridge Input

Input Ranges

±31.25 mV/V, ±62.5 mV/V, ±125 mV/V, ±250 mV/V,±500 mV/V, and ±1 V/V

Bridge Mode

Full, half, quarter

Bridge Resistance

120 Ohm, 350 Ohm, 1 kOhm

Shunt Calibration

33.333 kOhm, 50 kOhm, 100 kOhm

Excitation Voltage

0 ~ 10 V

Remote Sensing

Yes

Analog Output

Channels

2

Resolution

16 bits

Output Rate

3 MSPS max.

Slew Rate

20 V/µs

Driving Capability

5 mA

Operation Mode

Static update, waveform generation

Accuracy

±0.01% of FSR

Analog Trigger

Channels

2

Resolution

16 bits

Input Range

-10 V ~ +10 V

Hysteresis

Yes. Hysteresis range is configurable

Trigger Edge

Rising edge or falling edge, selected by software

Digital Trigger

Channels

2

Input Voltage

Logic 0: 1.5 V max.
Logic 1: 3.5 V min.

Trigger Edge

Rising edge or falling edge, selected by software

Digital I/O

Channels

32 (shared)

Input Voltage

Logic 0: 1.5 V max.
Logic 1: 3.5 V min.

Output Voltage

Low 0.5 V max.@ +20 mA (sink)
High 4.5 V min.@ -20 mA (source)

Counter/ Timer/ Encoder Counter

Channels

4

Resolution

32 bits

Input/Output Voltage

Same as that for digital I/O

Max. Input Frequency

10 MHz

Counter/Timer Functions

Frequency measurement, pulse width measurement, pulse output, PWM output

Encoder Functions

Quadrature (X1, X2, X4), dual pulse (CW/CCW), signed pulse (OUT/DIR)

General

Form Factor

PCI Express x1

I/O Connector

100-pin SCSI female ribbon-type connector

Dimensions (L x W)

167 x 100 mm (6.6" x 3.9")

Operating Temperature

0 ~ 60 °C (32 ~ 140 °F) (refer to IEC 68-2-1, 2)

Storage Temperature

-40 ~ 70 °C (-40 ~ 158 °F)

Storage Humidity

5 ~ 95% RH non-condensing (refer to IEC 68-2-3)

Board ID

TM switch

Manufacturer Part No:
PCIE-1813-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221101
Product Model:
PCIE-1813-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
