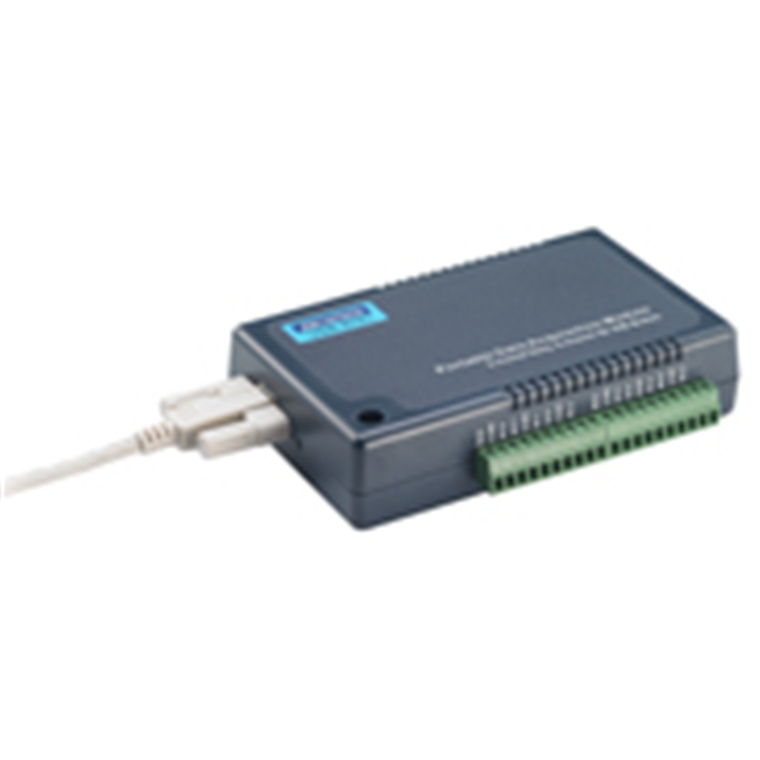

Advantech USB-4761-CE 8ch Relay & 8ch Isolated DI USB Module
- Brand: Advantech
- MPN: USB-4761-CE
- Part #: IPCAVH221198

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221198/Advantech-USB-4761-CE-8ch-Relay--8ch-Isolated-DI-U
Features
- Compatible with USB 1.1/2.0
- Portable
- Bus powered
- 8 x Relay output and 8 x isolated digital input channels
- LED indicators to show activated relays
- 8 x Form C-type relay output channels
- High-voltage isolation on input channels (2,500 VDC)
- High ESD protection (2,000 V)
- Wide input range (5 ~ 30 VDC)
- Interrupt handling capability
- Detachable screw terminal on modules
- Suitable for DIN rail mounting
- 1 x Lockable USB cable included for connection security
For more information: https://advdownload.advantech.com/productfile/PIS/USB-4761/file/USB-4750_4761_DS(041423)20230417133801.pdf
Specifications
MPN
USB-4761-CE
8-ch relay/isolated digital input USB module
Isolated Digital Input
Channels
8
Input Voltage
Logic 0: 2 V max.
Logic 1: 5 V min. (30 V max.)
Isolation Protection
2,500 VDC
Opto-Isolator Response
50 µs
Relay Output
Contact Rating
0.25 A @ 240 VAC, 1 A @ 30 VDC
Max. Switching Power
62.5 VA, 60 W
Max. Switching Voltage
250 VAC, 220 VDC
Max. Switching Current
5 A
Operate/Release Time
Max. 5 / 4 ms
Life Expectancy (Electrical)
5 x 107 cycles typ. @ 10 mA/12 V
2 x 105 cycles typ. @ 2000 mA/30 V
General
Bus Type
USB 1.1/2.0
I/O Connector
Onboard screw terminal
Dimensions (L x W x H)
132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Power Consumption
Typical: 5 V @ 60 mA
Max.: 5 V @ 400 mA
Operating Temperature
0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature
-20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity
5 ~ 95 % RH, non-condensing
