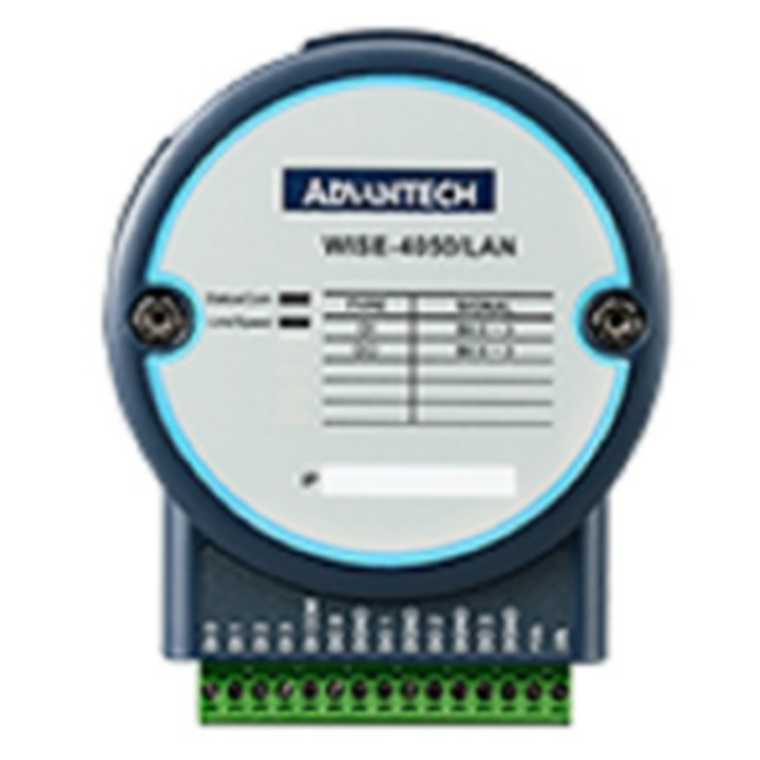

Advantech WISE-4050LAN-B 4-ch DI and 4-ch DO IoT Ethernet I/O Module
- Brand: Advantech
- MPN: WISE-4050LAN-B
- Part #: IPCAVH221215

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221215/Advantech-WISE-4050LAN-B-4-ch-DI-and-4-ch-DO-IoT-E
Features
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports RESTful web API in JSON format
- Supports local logging with RTC time stamp
- Supports mobile device web configuration in HTML5
- Supports 10~30VDC power with reverse protection
For more infomation: https://advdownload.advantech.com/productfile/PIS/WISE-4050LAN/file/DS_WISE-4000LAN-Series_(101421)20220217103440.pdf
Specifications
MPN
WISE-4050LAN-B
Communications
Interface
Ethernet
Environment
Operating Temperature
-40~70 °C (-40~158 °F)
Storage Humidity
0~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
General
Connectors
1 x RJ45, 1 x 15-pin plug-in screw terminal
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Isolated Digital Input
Channels
4
Input Voltage
Dry Contact
Logic level 1: close to DI COM
Logic level 0: open
Wet Contact
Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC
Isolation Protection
3000 Vrms
Isolated Digital Output
Channels
4
Isolation Protection
3000 Vrms
Output Type
Sink
Output Voltage
0~30 VDC
Sink Current
500 mA max./channel
Power Requirements
Input Voltage
10~30 VDC
