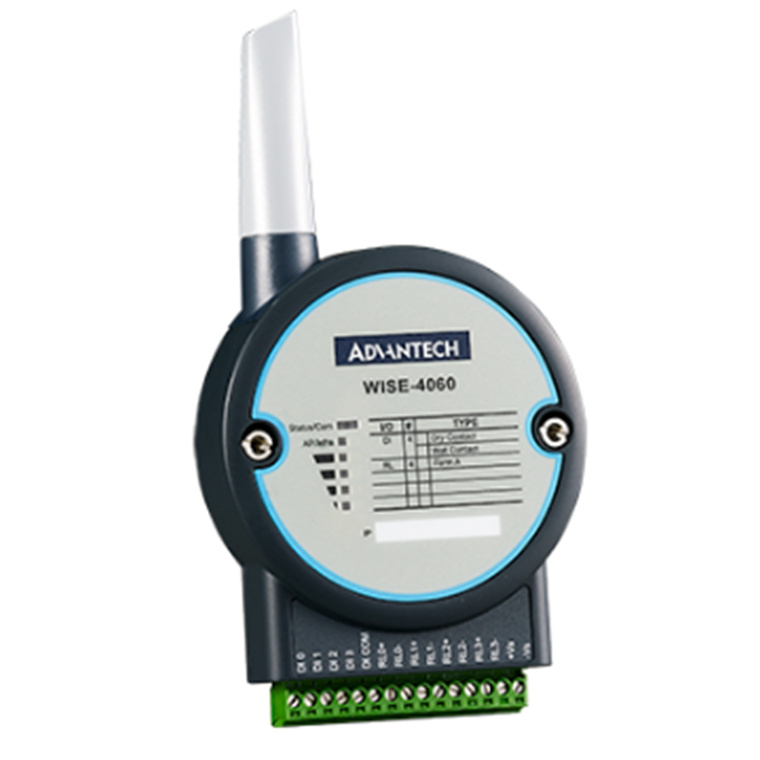

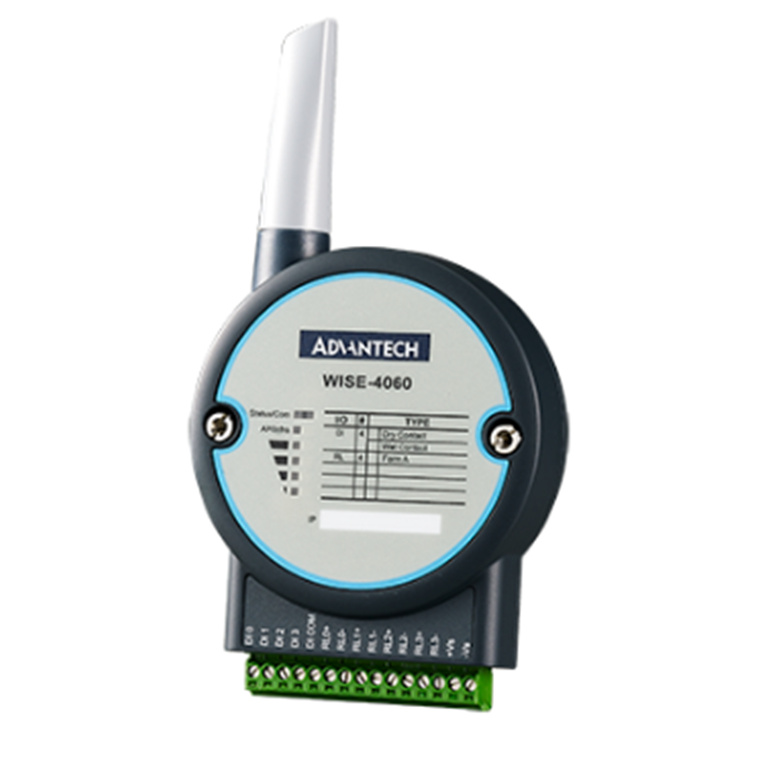

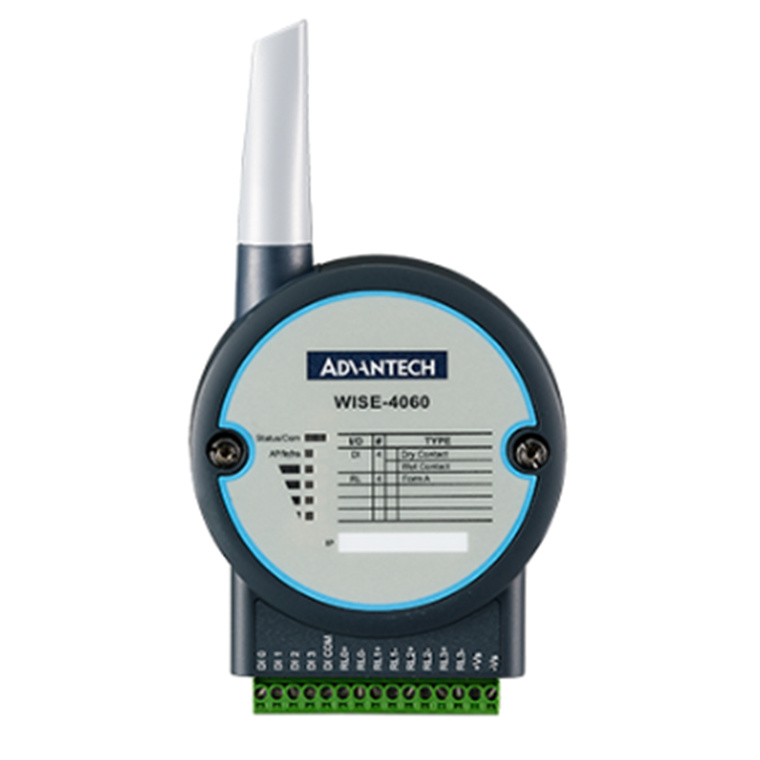

Advantech WISE-4060-B 4-ch DI and 4-ch Relay IoT Wireless I/O Module
- Brand: Advantech
- MPN: WISE-4060-B
- Part #: IPCAVH221217

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221217/Advantech-WISE-4060-B-4-ch-DI-and-4-ch-Relay-IoT-W
Features
- WiFi 2.4 GHz IEEE 802.11b/g/n WLAN
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports file-based cloud storage and local logging with RTC time stamp
?- Supports RESTful web API in JSON format for IoT integration
- Configured by mobile devices directly without installing software or App
For more infomation: https://advdownload.advantech.com/productfile/PIS/WISE-4060/file/WISE-4060-B_DS(062724)20240628105013.pdf
Specifications
MPN
WISE-4060-B
Digital Input
Channels
4 (TTL)
Input Voltage
Dry Contact
Logic level 0: Open
Logic level 1: Close to DI COM
Wet Contact
Logic level 0: 0~3 VDC
Logic level 1: 10~30 VDC
Isolation Protection
4,200 VDC
Environment
Operating Temperature
-25~70 °C (-13~158 °F)
Relative Humidity
20~95% RH (non-condensing)
Storage Humidity
0~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
General
Connectors
1 x Plug-in screw terminal
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
Hardware
Certification
CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, ANATEL
LED Indicators
Status, Com, AP/Station, Signal Strength
Power Consumption
2.5 W @ 24 VDC
Power Input
10~30 VDC
Watchdog Timer
1.6 s
Mechanical
Dimension (W x H x D)
80 x 148 x 25 mm
Enclosure
PC
Mounting
DIN-rail, Wall, Stack
Weight (Net)
0.15 kg
Power Requirements
Input Voltage
10~30 VDC
Relay Output
Channels
4 Form A
Contact Rating (Resistive)
3 A @ 30 VDC
Relay Type
4 x Form A
Resistance
Min. 1 GO min.
Wireless Communication
Frequency Band
IEEE 802.11 b/g/n 2.4 (GHz)
Standard (Technology)
WIFI
