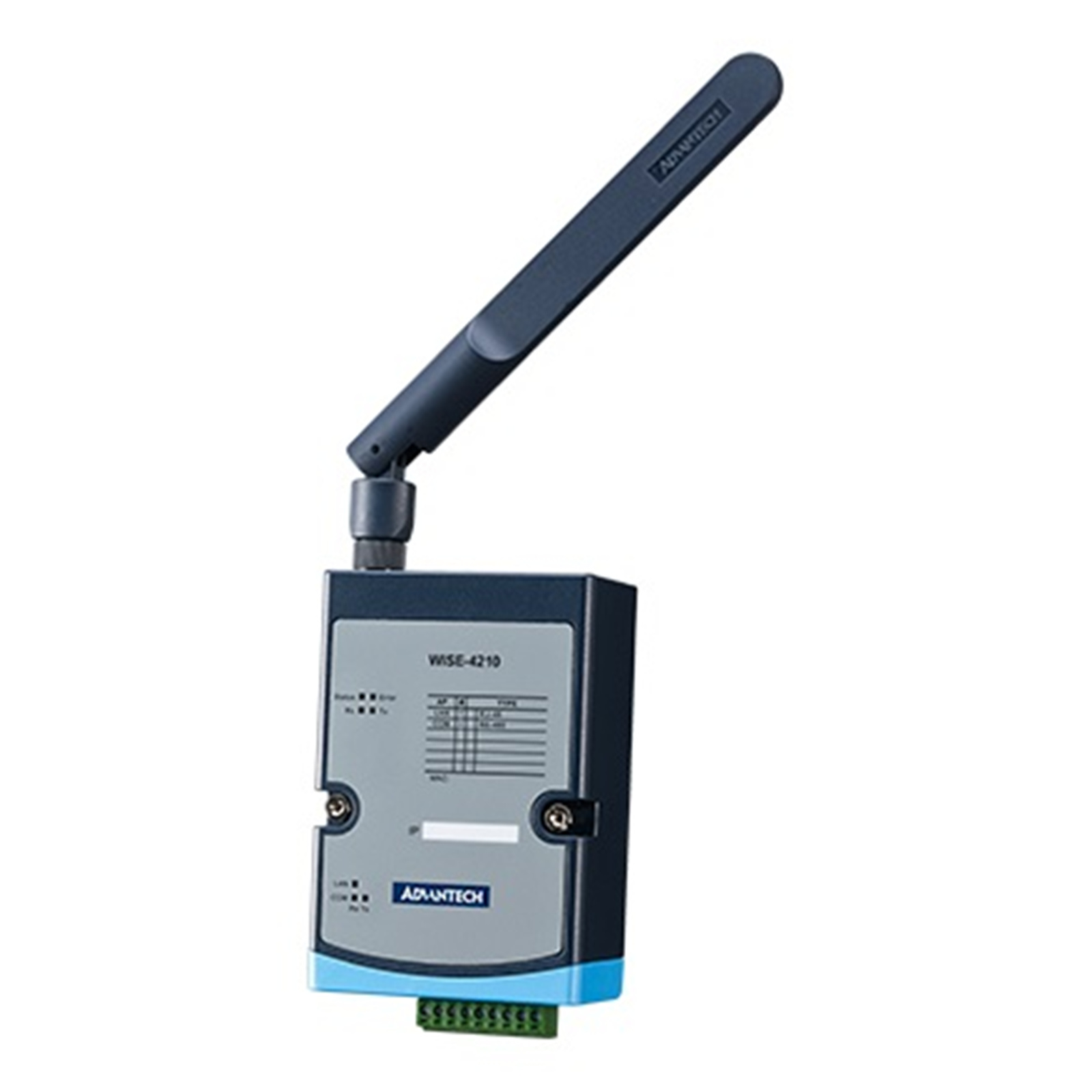

Advantech WISE-4210-APNA Proprietary LPWAN Wireless to Ethernet AP
- Brand: Advantech
- MPN: WISE-4210-APNA
- Part #: IPCAVH221219

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221219/Advantech-WISE-4210-APNA-Proprietary-LPWAN-Wireles
Features
Proprietary LPWAN Wireless to Ethernet AP
- Proprietary LPWAN (Sub-G) wireless technology
- Support MQTT & Modbus/TCP protocol
- Wireless to ethernet access point
- Longer communication range than 2.4GHz
- Better penetration through concrete and steel than 2.4GHz
Specifications
Communications
Data Transfer Rates
625 bps, 2.5 kbps, 5 kbps, 50 kbps
Environment
Operating Temperature
-25~70 °C (-13~158 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Humidity
0~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Ethernet
Speed
10/100 Mbps
General
Connectors
1 x RJ45
Protocol
Modbus/TCP, TCP, UDP, HTTP, HTTPS, DHCP, MQTT, SNTP, Modbus/RTU, REST
Hardware
Certification
CE, FCC Class A, IC, NCC, TELEC
LED Indicators
Status, Error, Tx, Rx, Battery/Signal Level
Power Consumption
0.8 W @ 24 VDC
Power Input
10~50 VDC
I/O Interface
LAN Ports
1 x 10/100 Mbps
Serial Ports
1 x RS-485
USB Ports
1 x Micro-B USB
Mechanical
Dimension (W x H x D)
70 x 102 x 38 mm
Mounting
DIN-rail, Wall, Pole, Stack
Weight (Net)
0.5 kg
Power Requirements
Input Voltage
10~50 VDC
Serial Communication
Data Signals
RS-485: DATA+, DATA-
Wireless Communication
Frequency Band
US 923 (MHz), EU 868 (MHz)
Standard (Technology)
Proprietary LPWAN
