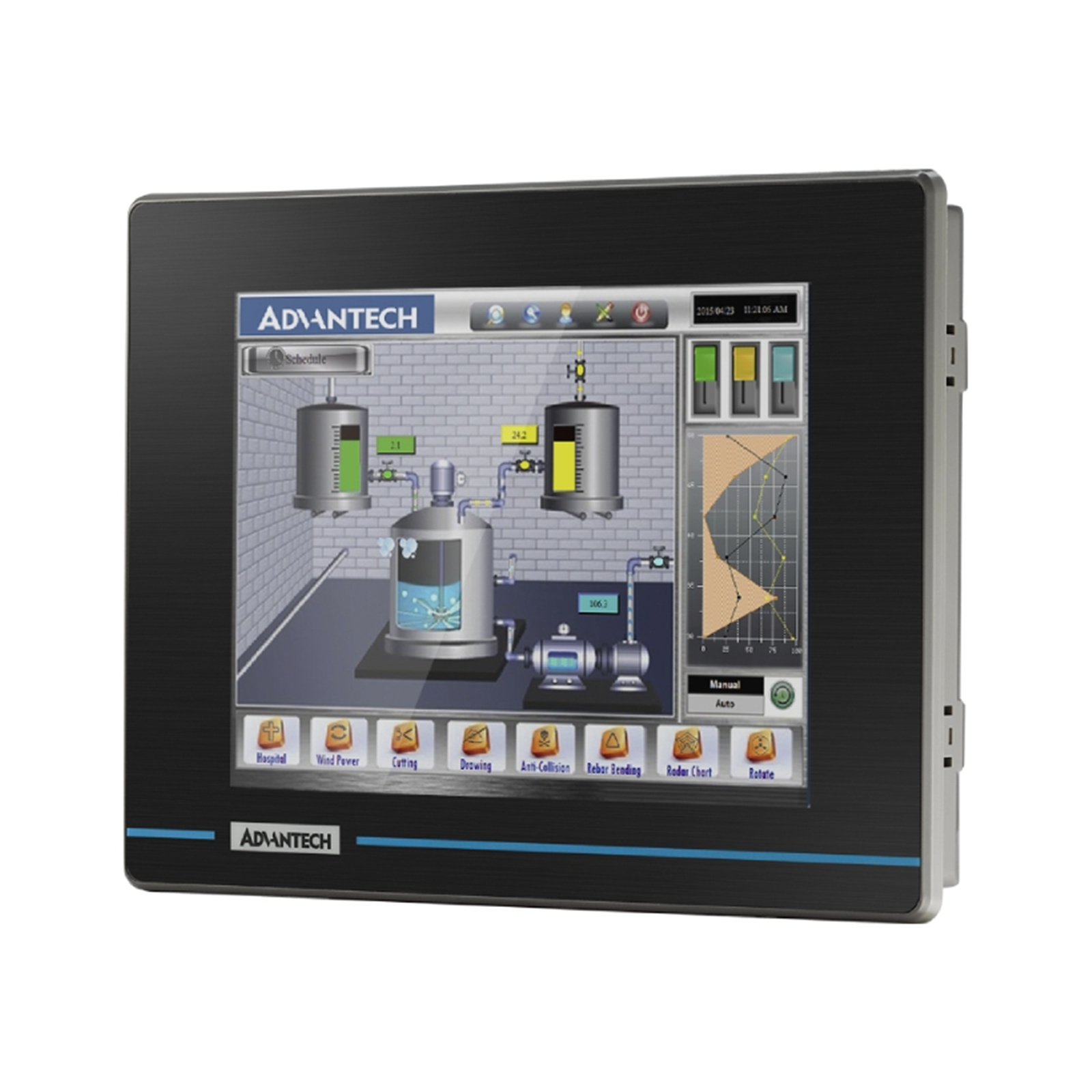

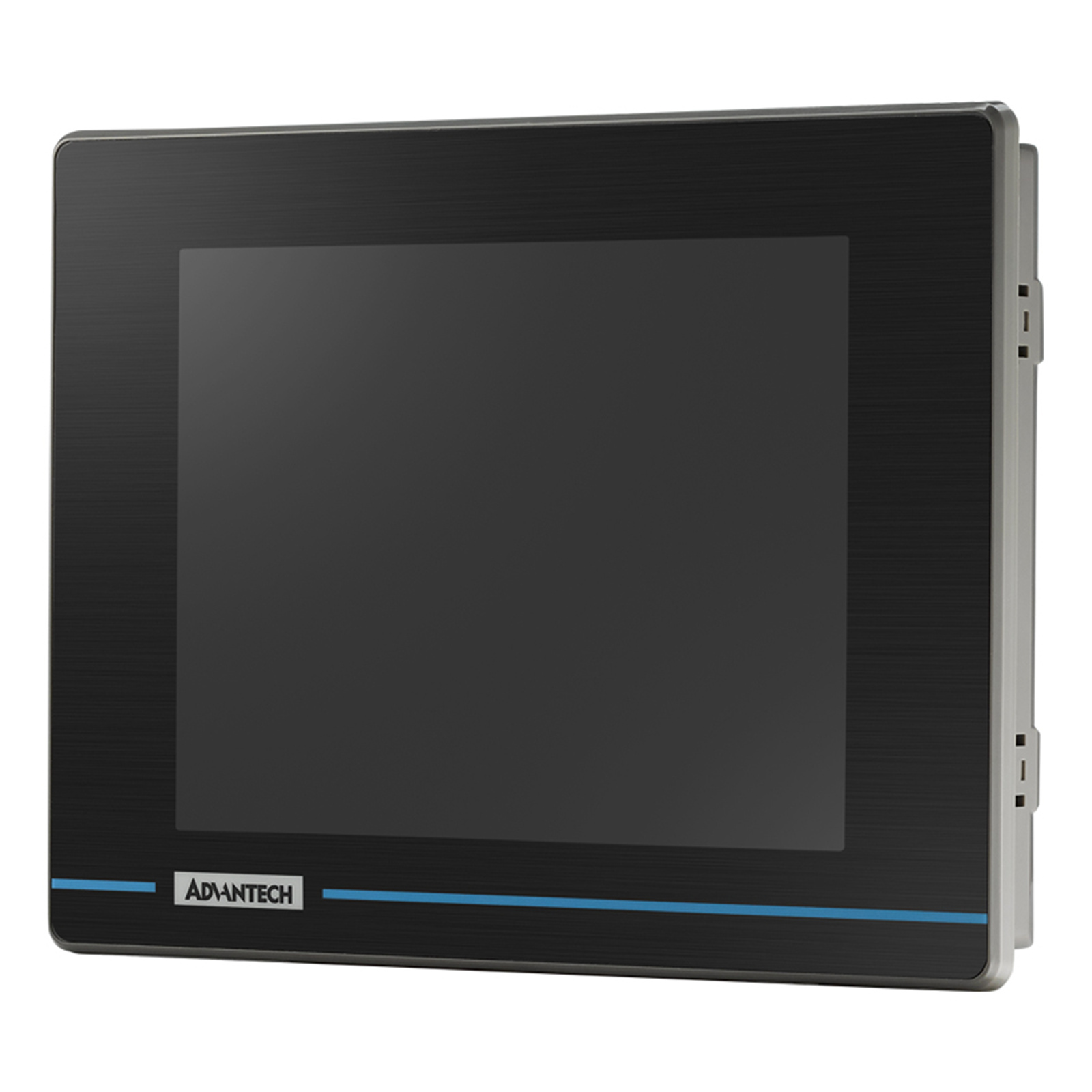

Advantech WOP-208K-NAE 8" SVGA, 64MB, 128MB(NAND), Serialx3,Ethernet
- Brand: Advantech
- MPN: WOP-208K-NAE
- Part #: IPCAVH221247

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221247/Advantech-WOP-208K-NAE-8-SVGA-64MB-128MBNAND-Seria
Features
8" SVGA, 64MB, 128MB(NAND), Serialx3,Ethernet
- ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
- Supports over 500+ PLC industrial communication protocols
- Backup memory 128KB for retaining critical data or parameter
- Supports the HMINavi Designer development tool free on Windows 10
- Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
- No limitation on the internal I/Os points used for variety application
- Easy to switch one application to different LCD sizes in seconds
- Supports operation in both landscape and portrait mode
- Panel mount design ensures easy installation and IP66-rated front panel
Specifications
Environment
Ingress Protection
Front Panel IP66
Operating Temperature
-15~65 °C (5~149 °F)
Relative Humidity
5~95% RH (non-condensing)
Vibration Protection
1 Grms, random
General

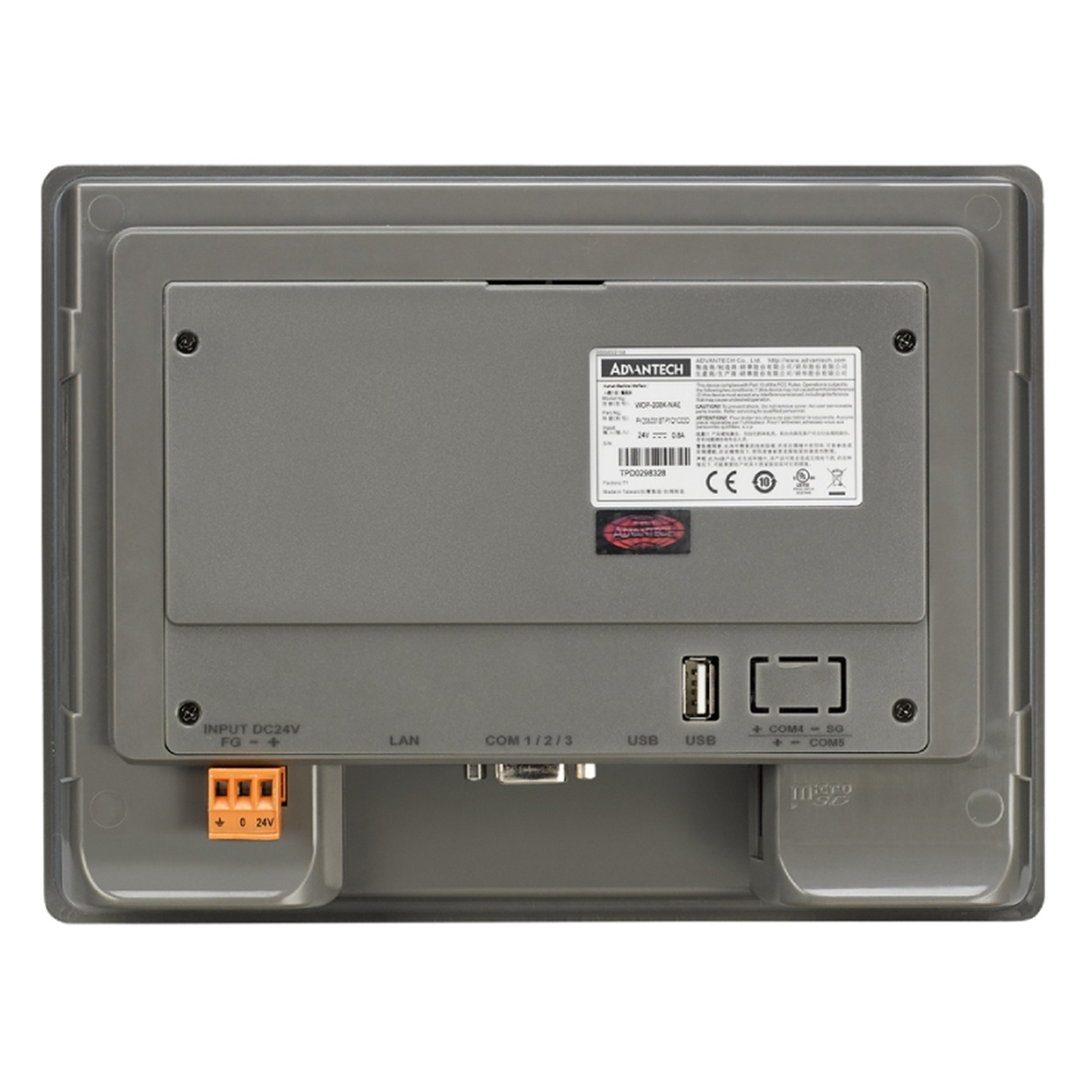

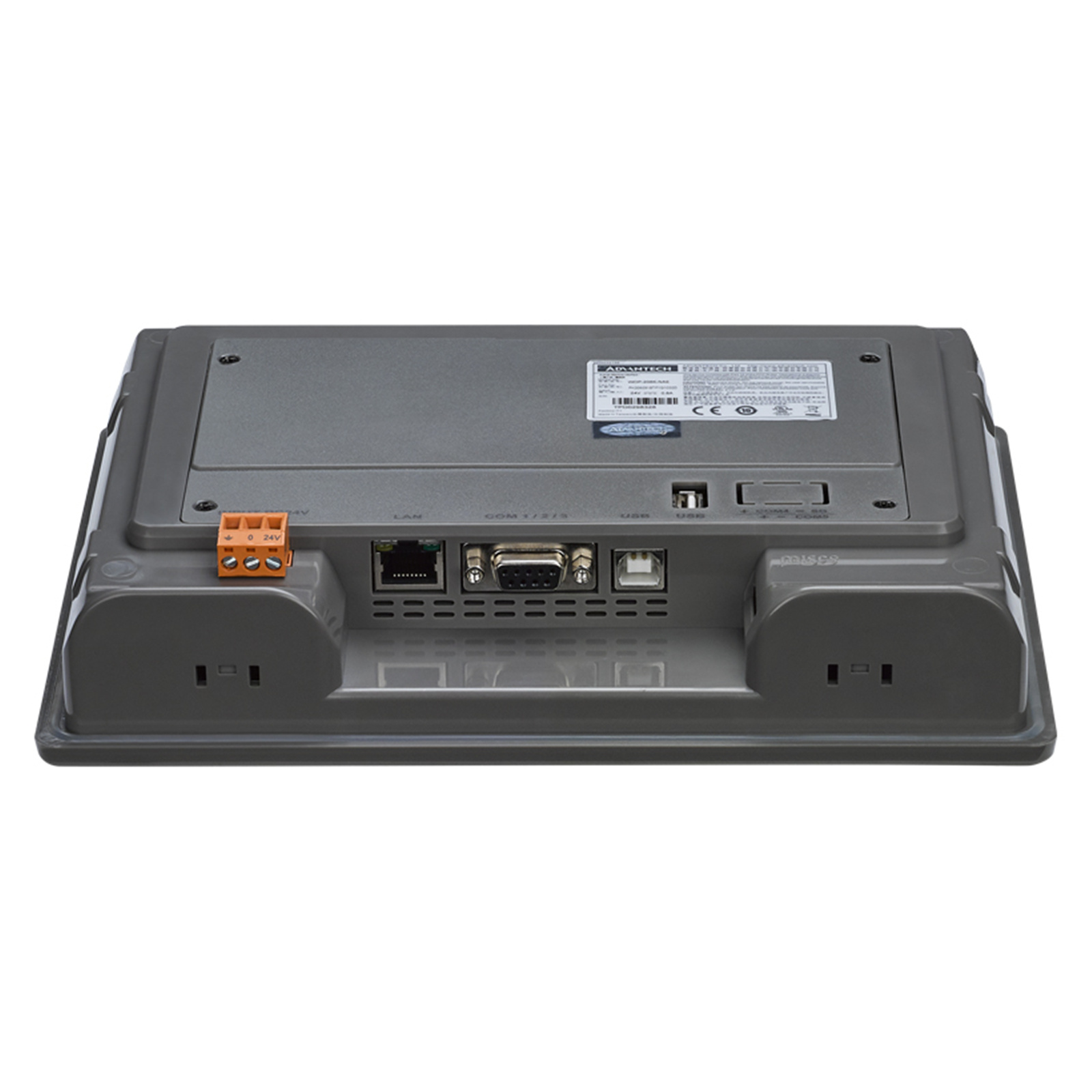

Connectors
1 x RJ45, 1 x DB9 female
Programming Language
HMINavi Designer
Protocol
500+ PLC Drivers
Rated Voltage
24 VDC (±10%)
Hardware
Certification
CE, FCC class A, UL-61010
CPU
ARM9™ 32-bit RISC processor
LAN
1 x 10/100 Mbps
Memory
1 x 64 MB SDRAM
OS Support
RTOS
Power Consumption
20 W @ 24 VDC
Power Requirement
24 VDC ±10%
Storage
1 x 128M NAND Flash
I/O Interface
Serial Ports
1 x RS-232, 1 x RS-422/485, 1 x RS-485
USB Ports
1 x USB (Host), 1 x USB (Client)
LCD Display
Backlight Life (hrs)
20,000
Display Size
8"
Luminance (cd/m2)
250
Max. Resolution
800 x 600
Mechanical
Dimension (W x H x D)
233 x 176 x 43.3 mm
Enclosure
PC + ABS
Mounting
Panel
Weight (Net)
1 kg (2.2 lb)
Touchscreen
Touch Type
4-wire resistive
