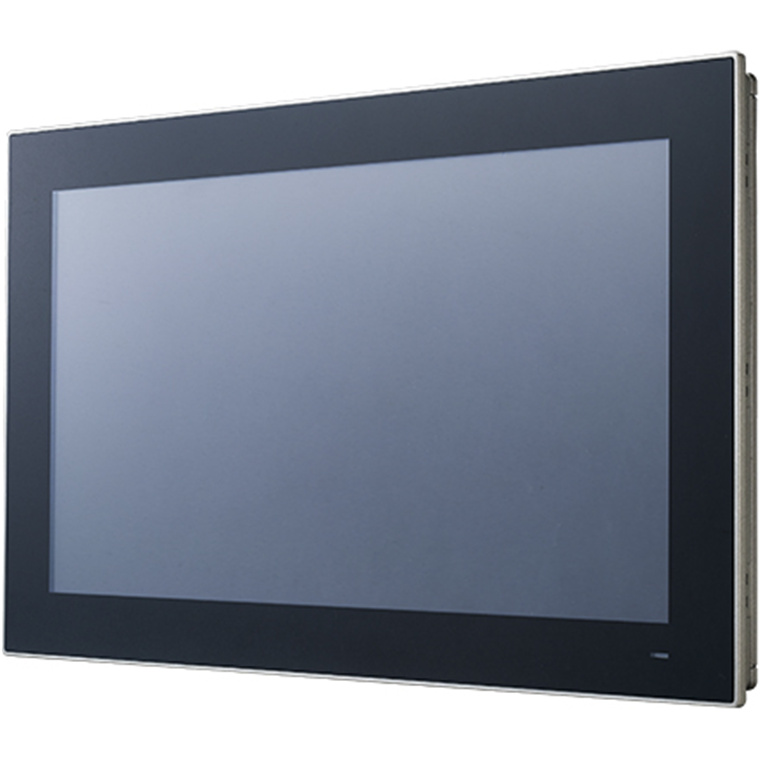

Advantech PPC-3181SW-P65B 18.5" PPC w/Intel i5-6300U, P-Cap

PB Tech price

NZD $ 4,313 .24

$ 4,313 .24

Advantech PPC-3181SW-P65B 18.5" PPC w/Intel i5-6300U, P-Cap

Brand: Advantech
MPN: PPC-3181SW-P65B
Part #: IPCAVH221287
UPC:

PB Tech price

NZD $ 4,313 .24

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PPC-3181SW-P65B
Part #: IPCAVH221287
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The PPC-3181SW is an all-in-one light panel PC with a wide format 18.5" industrial-grade LCD. Powered by 6th generation Intel® Core™ i processor, PPC-3181SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability design, PPC-3181SW features a true-flat touchscreen with IP66-rated front panel, and die cast aluminum alloy enclosure, making it ideal for diverse applications.

- Industrial-grade 18.5" LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- High-performance, fanless 6th generation Intel® Core™ i processor
- Up to 16 GB DDR4 SDRAM
- Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 x external HDMI)
- Supports full-size mini PCIe expansion
- Supports USB 3.0
- Supports VESA 100
- Supports TPM 2.0 (optional)

For more information: https://advdownload.advantech.com/productfile/PIS/PPC-3181SW/file/PPC-3181SW_DS(081423)20230816162301.pdf

Specifications

MPN

PPC-3181SW-P65B
18.5" PPC w/Intel i5-6300U,P-Cap

System

CPU

i5-6300U

Cores

Dual Core

Frequency

3.0 GHz with turbo boost 2.6 GHz

L3 Cache

3 MB

TDP

15W

Memory

1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)

Storage

1 x 2.5" SATA bay
1 x mSATA bay

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I219LM; Realtek 8119i)

I/O

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0
1 x HDMI
1 x TPM 2.0 internal (optional)

Speaker

2 x 1W

Expansion

1 x Full-size mini PCIe slot

Watchdog Timer

255 timer levels, set up by software

Physical Characteristics

Dimensions

488 x 309 x 61.7 mm (19.2 x 12.1 x 2.4 in)

Weight

5.7 kg (12.56 lb)

OS Support

Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux

Power Consumption

Input Voltage

12 ~ 24 VDC

Power Consumption

65W

LCD

Display Type

18.5" TFT LCD (LED backlight)

Resolution

1366 x 768

Viewing Angle

85 (left), 85 (right), 80 (up), 80 (down)

Luminance (cd/m²)

450

Contrast Ratio

1000

Backlight Lifetime

50,000 hr

Touchscreen

Touch Type

10-point multi-touch projected capacitive

Light Transmission

90 % ± 3 %

Controller

USB interface

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity

95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE,FCC Class B, BSMI, UKCA

Safety

CB, UL, CCC, UKCA

Front Panel Protection

IP66 compliant

Manufacturer Part No:

PPC-3181SW-P65B

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221287

Product Model:

PPC-3181SW-P65B

Warranty: 12 months *
