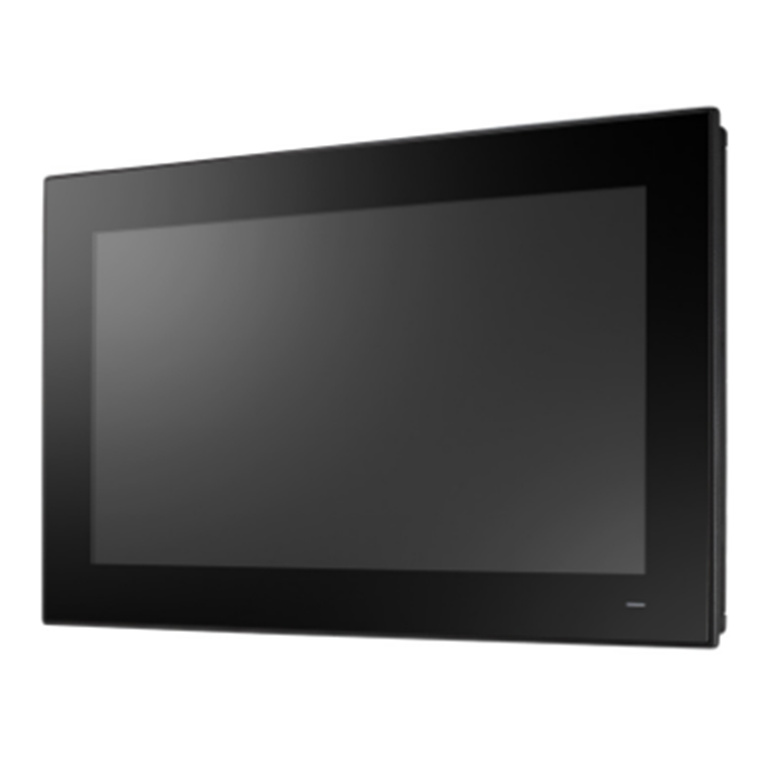

Advantech PPC-318W-PB7A 18.5" PPC w/Intel i7-1185G7E, P-Cap

PB Tech price
PB Tech price
NZD $ 4,300 .00
$ 4,300 .00
$4,300.00  +GST
$4,300.00

Advantech PPC-318W-PB7A 18.5" PPC w/Intel i7-1185G7E, P-Cap

  • Brand: Advantech
  • MPN: PPC-318W-PB7A
  • Part #: IPCAVH221291
  • UPC:
PB Tech price
NZD $ 4,300 .00 $ 4,300 .00


Delivery: Order now and it ships on 24 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$4,300.00  +GST
$4,300.00

Features

PPC-318w TGL is an 18.5" Fanless Panel PC equipped Intel 11th Gen Core i7/i5/i3, providing high computing performance with robust aluminum alloy enclosure. It also leverages M.2 M key NVMe PCIe to accommodate extremely high date rate and low latency advantage. PPC-318w TGL features 3 x USB 3.2, 2 x series ports and 1 x HDMI for flexible access and connection. The PPC-318w TGL is an excellent solution to enable quick date capture, processing and data digitalization in various industrial applications.

- Industrial-grade 18.5" LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- High-performance, fanless 11th generation Intel® Core™ i processor
- Dual channel memory slots, max 64G
- Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
- 1 x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- Supports VESA 100, TPM2.0 hardware security and Type C (USB only)

For more information: https://advdownload.advantech.com/productfile/PIS/PPC-318W%20TGL/file/PPC-318W-TGL_DS(062024)20240621104407.pdf

Specifications

MPN

PPC-318W-PB7A
18.5" PPC w/Intel i7-1185G7E, P-Cap

System

CPU

i7-1185G7E

Cores

Quad Core

Frequency

1.8 GHz; 4.4 GHz with turbo boost

Cache

12 MB

TDP

15W

Memory

2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2)

Storage

1 x 2.5" SATA bay
1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1

Network (LAN)

1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
1 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2500M

I/O

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
3 x USB 3.2, 1 x USB 2.0, 2 x USB 2.0 (internal), 1 x Type C (USB only)
1 x HDMI1.4
1 x TPM 2.0
1 x Line out

Speaker

2 x 1W

Expansion

1 x M.2 2230 E-key for wireless card

Watchdog Timer

255 timer levels, set up by software

Physical Characteristics

Dimensions

488 x 309 x 61.7 mm (19.2 x 12.1 x 2.4 in)

Weight

5.7 kg (12.56 lb)

OS Support

OS Support

Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux

Power Consumption

Input Voltage

12 ~ 30 VDC

Power Consumption

70W (Burn-in test 8.1 in Windows 10 64-bit)

LCD

Display Type

18.5" LCD (LED backlight)

Resolution

1366 x 768

Viewing Angle

85(left), 85(right), 80(up), 80(down)

Luminance (cd/m²)

450

Contrast Ratio

1000

Backlight Lifetime

50,000 hrs

Touchscreen

Touch Type

10-point multi-touch projected capacitive

Light Transmission

>= 88%

Controller

USB interface

Environment

Operating Temperature

-10 ~ 50 °C (14~122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity

95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC Class B, BSMI, VCCI, UKCA, EN60601-1-2

Safety

CB, UL, CCC, UKCA

Front Panel Protection

IP66 compliant

Manufacturer Part No:
PPC-318W-PB7A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221291
Product Model:
PPC-318W-PB7A
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
