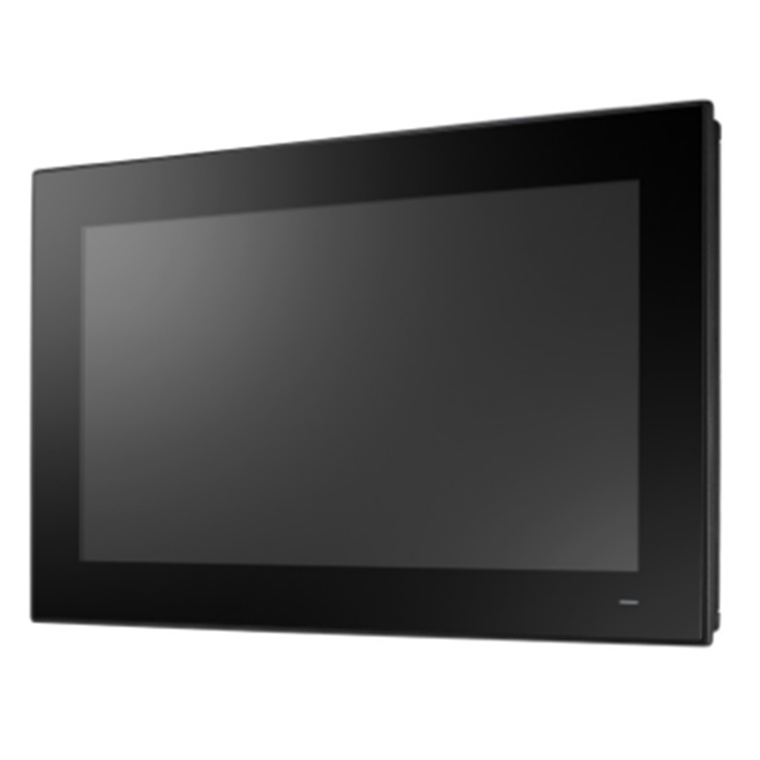

Advantech PPC-324W-PB5A 23.8" FHD PPC w/Intel i5-1145G7E, P-Cap

PB Tech price

NZD $ 4,333 .34

$ 4,333 .34

Advantech PPC-324W-PB5A 23.8" FHD PPC w/Intel i5-1145G7E, P-Cap

Brand: Advantech
MPN: PPC-324W-PB5A
Part #: IPCAVH221306
UPC:

PB Tech price

NZD $ 4,333 .34

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PPC-324W-PB5A
Part #: IPCAVH221306
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

PPC-324W TGL is an 23.8" Fanless Panel PC equipped Intel 11th Gen Core i7/i5/i3, providing high computing performance with robust aluminum alloy enclosure. It also leverages M.2 M key NVMe PCIe to accommodate extremely high date rate and low latency advantage. PPC-324W TGL features 3 x USB 3.2, 2 x series ports and 1 x HDMI for flexible access and connection. The PPC-324W TGL is an excellent solution to enable quick date capture, processing and data digitalization in various industrial applications.

- Industrial-grade 23.8" LCD panel with 30k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- High-performance, fanless 11th generation Intel® Core™ i processor
- Dual channel memory slots, max 64G
- Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 x external HDMI)
- 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
- 1 x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology

For more information: https://advdownload.advantech.com/productfile/PIS/PPC-324W%20TGL/file/PPC-324W-TGL_DS(062024)20240621104602.pdf

Specifications

MPN

PPC-324W-PB5A
23.8" PPC w/Intel i5-1145G7E, P-Cap

System

CPU

i5-1145G7E

Cores

Quad Core

Frequency

1.5GHz; 4.1GHz with turbo boost

Cache

8 MB

TDP

15W

Memory

2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2)

Storage

1 x 2.5" SATA bay
1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1

Network (LAN)

1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
1 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2500M

I/O

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
3 x USB 3.2, 1 x USB 2.0, 2 x USB 2.0 (internal), 1 x Type C (USB only)
1 x HDMI1.4
1 x TPM 2.0
1 x Line out

Speaker

2 x 1W

Expansion

1 x M.2 2230 E-key for wireless card

Watchdog Timer

255 timer levels, set up by software

Physical Characteristics

Dimensions

595.9 x 347.1 x 61.5 mm (23.5" x 14.7" x 2.4")

Weight

8.6kg (18.96lb)

OS Support

Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux

Power Consumption

Input Voltage

12 ~ 30 VDC

Power Consumption

80W (Burn-in test 8.1 in Windows 10 64-bit)

LCD

Display Type

23.8" LCD (LED backlight)

Resolution

1920 x 1080

Viewing Angle

89(left), 89(right), 89(up), 89(down)

Luminance (cd/m²)

350

Contrast Ratio

1000

Backlight Lifetime

30,000 hrs

Touchscreen

Touch Type

10-point multi-touch projected capacitive

Light Transmission

>= 88%

Controller

USB interface

Environment

Operating Temperature

-10 ~ 50 °C (14~122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity

95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC Class B, BSMI, VCCI, UKCA, EN60601-1-2

Safety

CB, UL, CCC, UKCA

Front Panel Protection

IP66 compliant

Manufacturer Part No:

PPC-324W-PB5A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221306

Product Model:

PPC-324W-PB5A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
