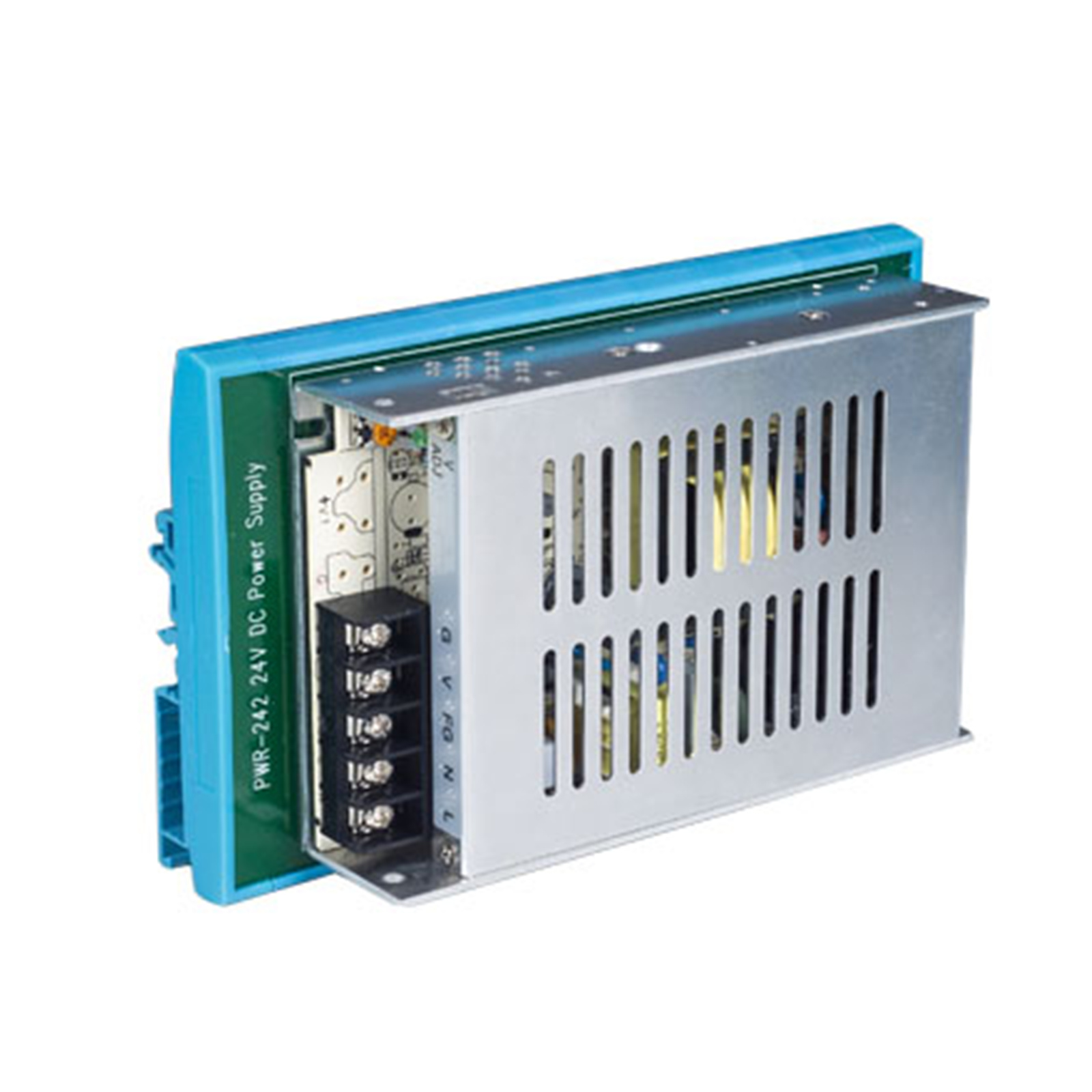

Advantech PWR-242-AE DIN-rail Power Supply
- Brand: Advantech
- MPN: PWR-242-AE
- Part #: IPCAVH221319

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221319/Advantech-PWR-242-AE-DIN-rail-Power-Supply
Features
DIN-rail Power Supply
- Input short protection
- Output overload protection
- Operation temperature: 0~50 ?
Specifications
Input
?Input Current
1.2 A max.
?Inrush Current (cold)
20 A/110 VAC
40 A/220 VAC
Input Frequency
47 ~ 63 Hz
Input Voltage
90 ~ 264 VAC wide input range
Short Protection
-
Output
Output Current
2.1 A max.
Output Voltage
+24 VDC ±10%
Overload Protection
-
General
Certifications
CE, FCC, UL
Connectors
Screw-terminal
Dimensions (L x W x H)
181 x 113 x 60 mm (7.01" x 4.43" x 2.35")
Enclosure
Sheet metal
MTBF
85,000 hrs
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
