Features

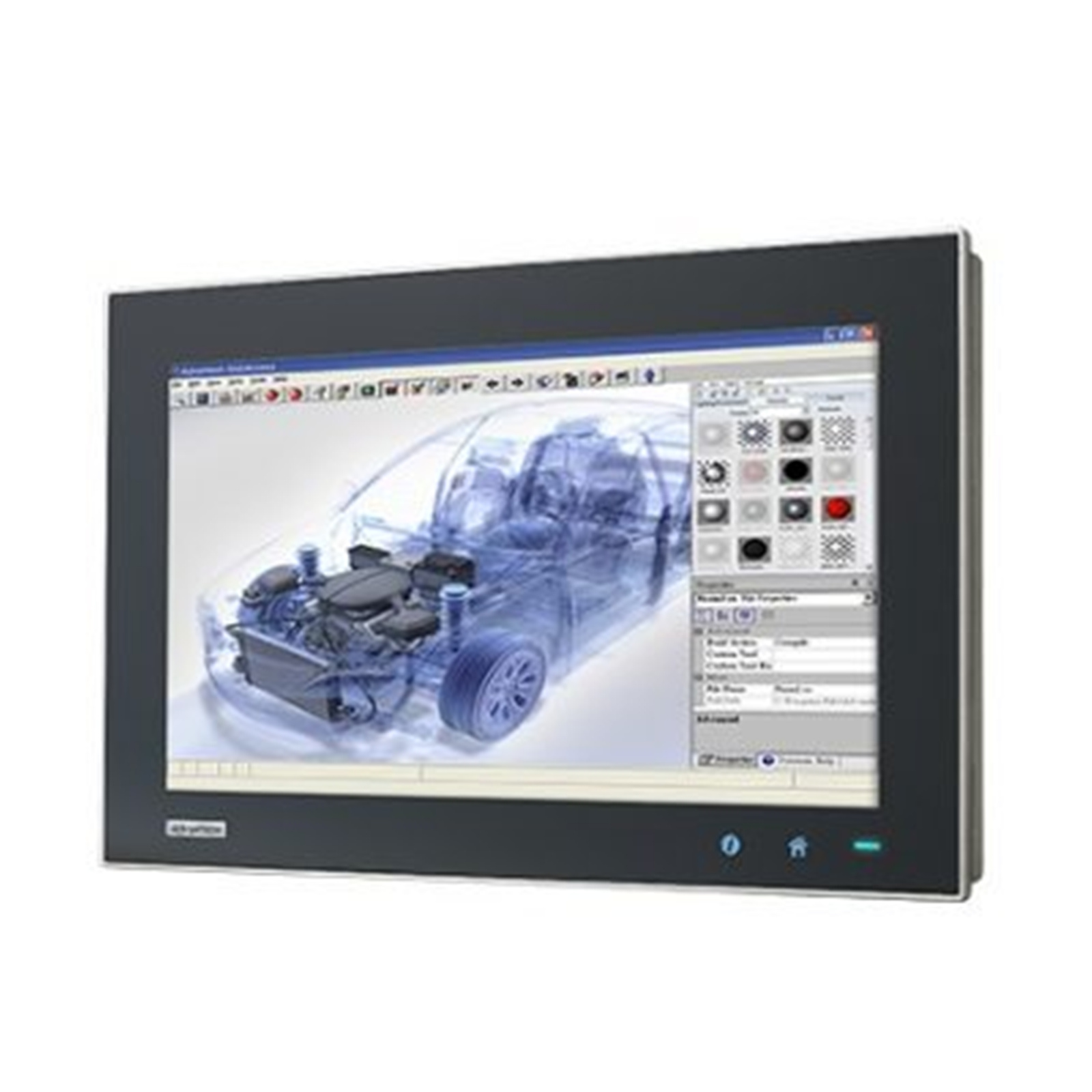

21.5" Full HD LED LCD Stationary Multi-Touch Panel Computer
With a brand-new ID design, the SPC-221 series have high resolution 21.5" displays and PCT multi-touch screens in 16:9 wide format. By embedding an Intel® Skylake Core™ i3- 6100U 2.3 GHz processor (Dual-Core), the SPC-221 can support advanced graphical performance in complex applications. It has built-in function and home key buttons for greater usability and also supports a Mini-PCIe slot for communication function expansion. It also has an all-round IP66 waterproof casing design with M12 connectors. With this vertical I/O connector, cable routing is simplified, safer, and more reliable for stationary / VESA arm applications.
- 21.5" Full HD TFT LED LCD display
- Intel® Skylake Core™ i3-6100U 2.3 GHz processor (Dual-Core)
- 16:9 wide screen with PCT multi-touch
- Built-in function and home key buttons for intuitive UI
- Anti-scratch touch surface: 7H hardness

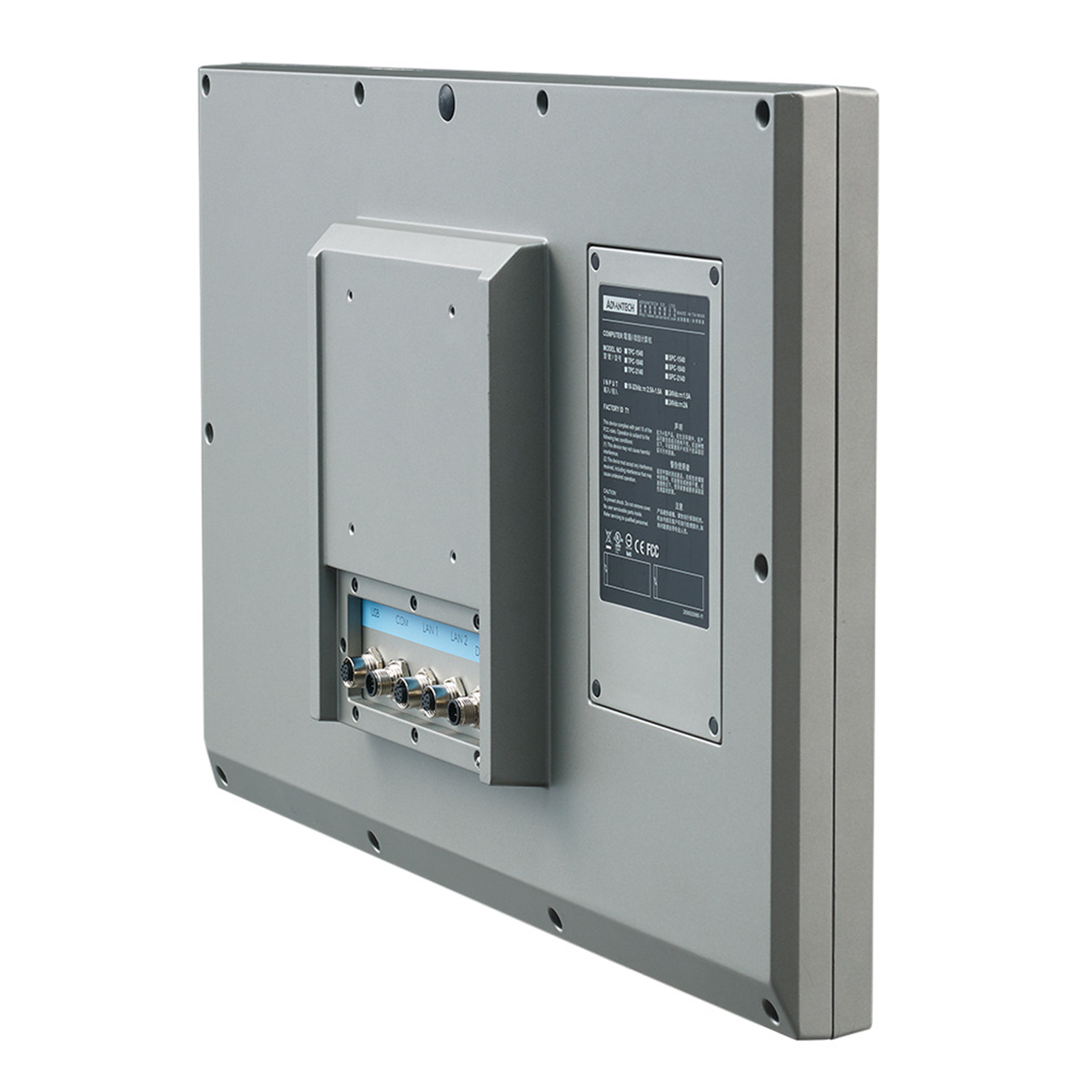

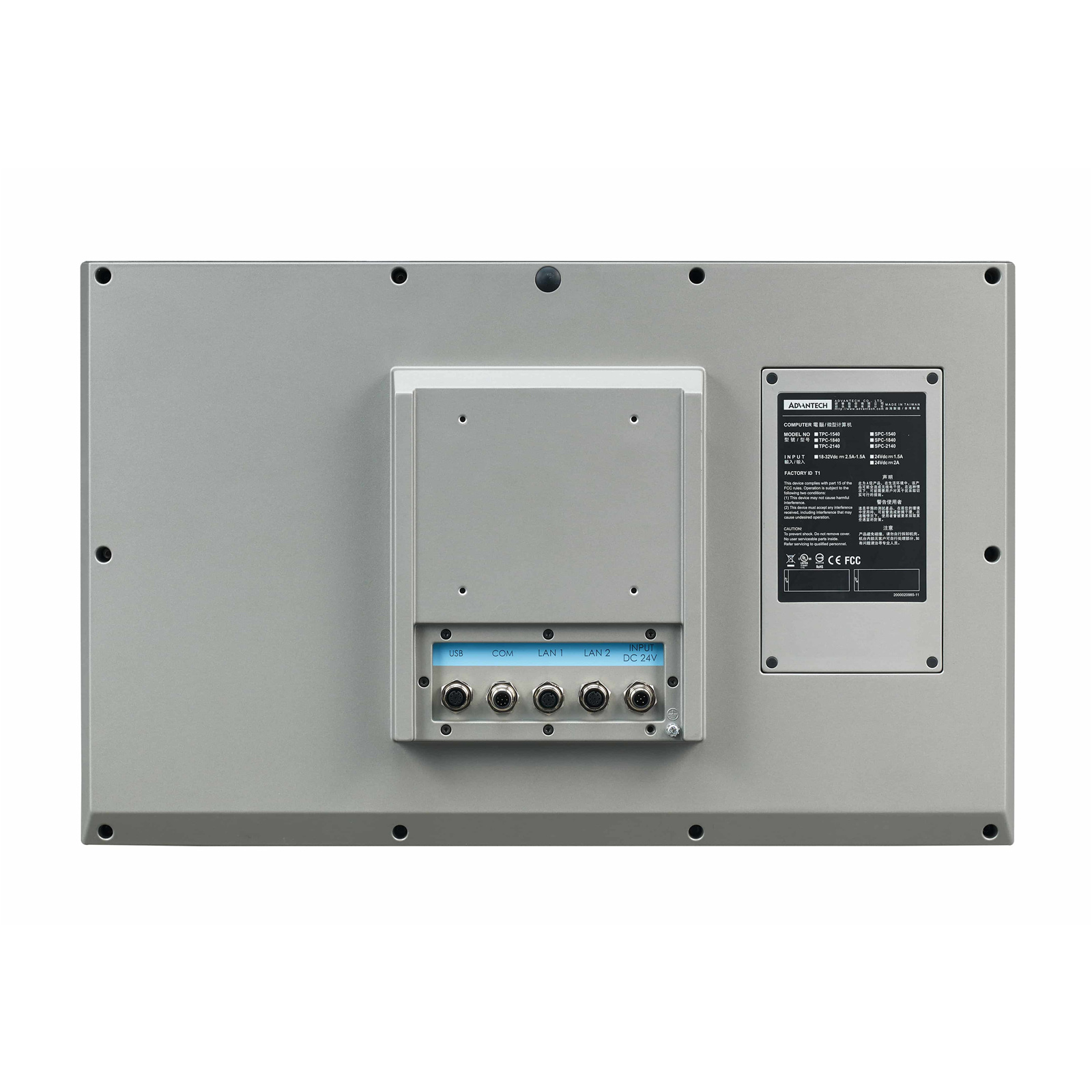

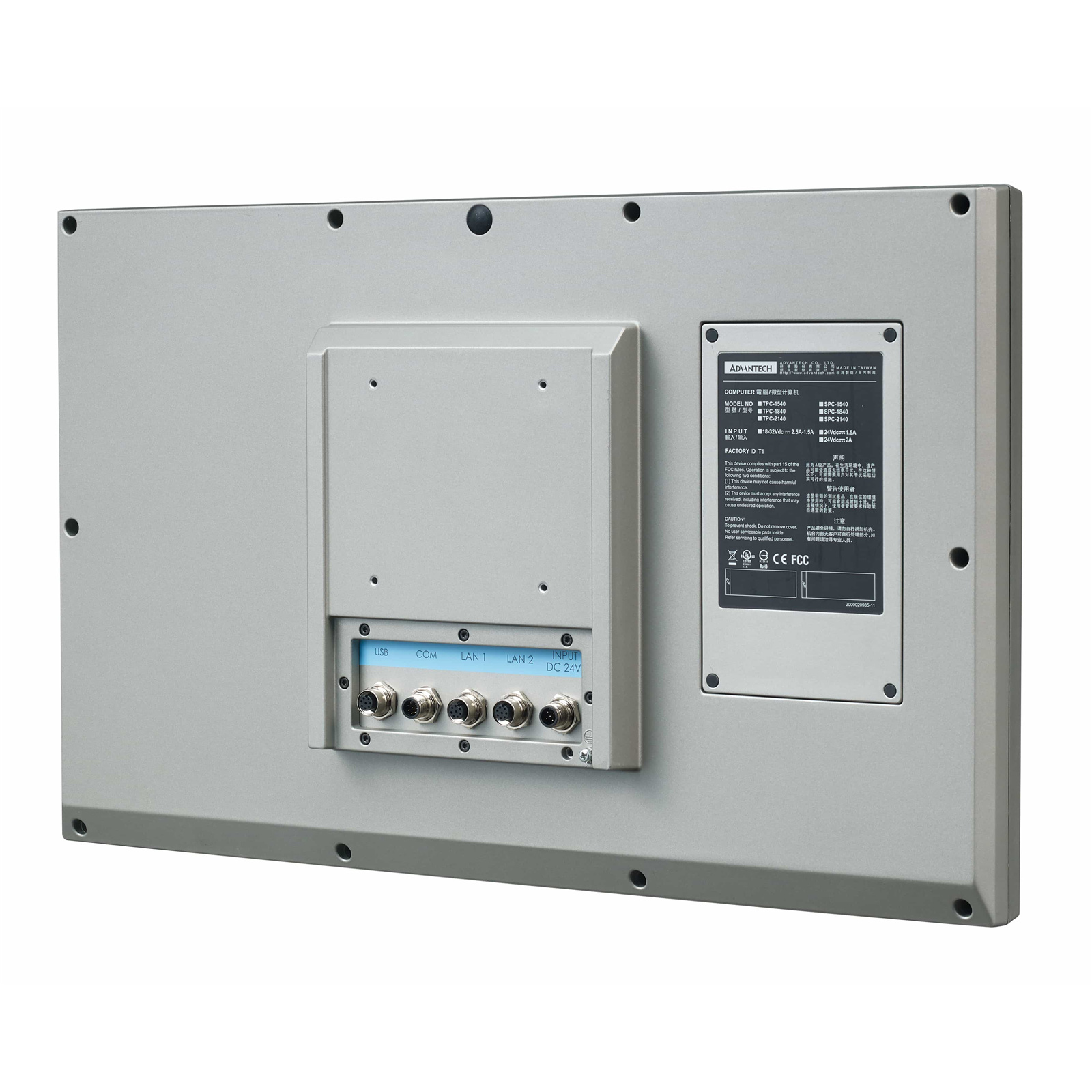

- All-round IP66 protection with waterproof M12 connector
- Supports Mini-PCIe expansion slot
- Front LED indicator to show operating status
- Fanless cooling system
Specifications
Environment
Ingress Protection
All-around IP66
Operating Temperature
0~55 °C (32~131 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
1 Grms, random
General
Humidity (Operating)
10~95% RH (non-condensing)
Humidity (Storage)
10~95% RH (non-condensing)
Rated Voltage
24 VDC
Hardware
BIOS
AMI UEFI
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
CPU
Intel® CoreTM i3-6100U 2.3GHz Skylake Dual Core, 3MB L2
Hardware Security
Optional
I/O
1 x RS-232, 1 x USB 2.0
LAN
2 x 10/100/1000 Mbps
Memory
2 x SO-DIMM with 8GB DDR3L
OS Support
Microsoft® Windows 10 LTSC
Power Consumption
35 W @ 24 VDC
Power Input
24 VDC ±20%
Power Requirement
24 VDC ±20%
Storage
2.5" SATA HDD bracket x 1
I/O Interface
Expansion
Optional
LAN Ports
2 x 10/100/1000 Mbps
Power Connector
1 x M-12 A-coded 5 pin male
Serial Ports
1 x RS-232
USB Ports
1 x USB 2.0
LCD Display
Backlight Life (hrs)
50,000
Display Size
21.5"
Luminance (cd/m2)
300
Max. Resolution
1920 x 1080
Viewing Angle (H/V°)
178/178
Mechanical
Dimension (W x H x D)
558.4 x 349.8 x 65 mm
Enclosure
Die-cast aluminum alloy
Form Factor
Passive Cooling
Mounting
VESA
Weight (Net)
9 kg (19.8 lb)
Power Requirements
Input Voltage
19~29 VDC
Touchscreen
Touch Type
PCAP
