Advantech SPC-515-633AE 15" Multi-Touch Panel PC with Intel Core i3-6100U and Stainless Steel Housing and IP69K Rating

PB Tech price

NZD $ 5,627 .73

$ 5,627 .73

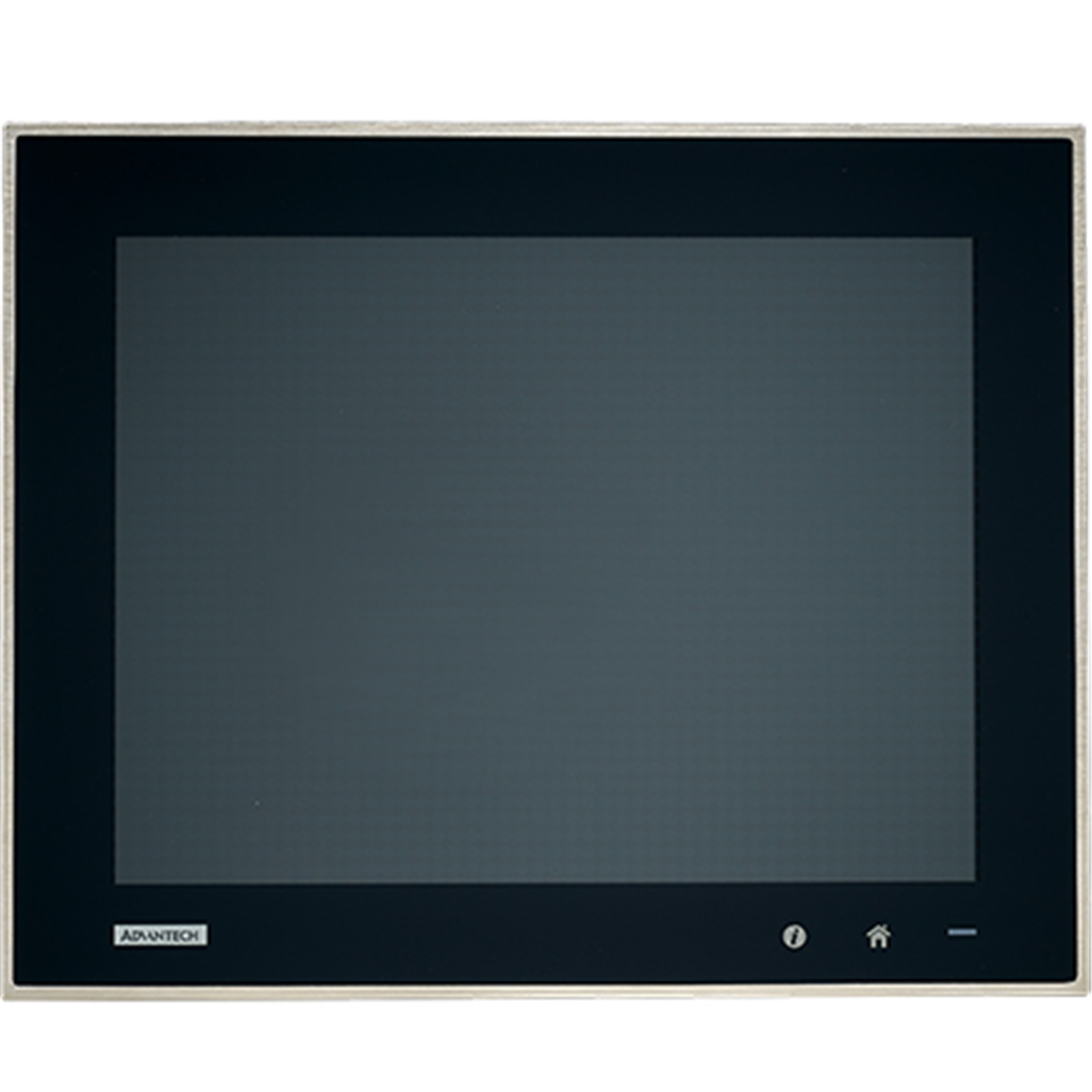

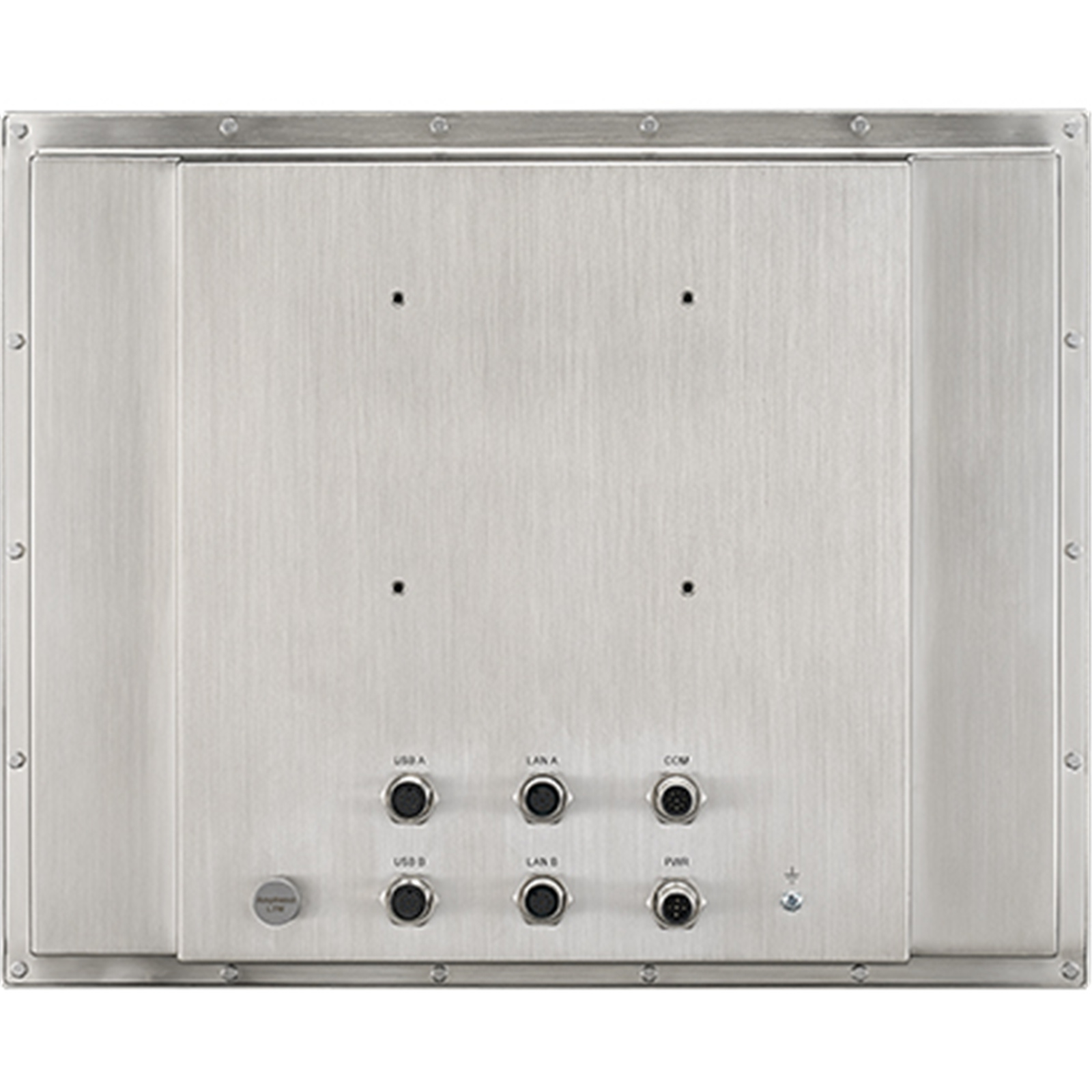

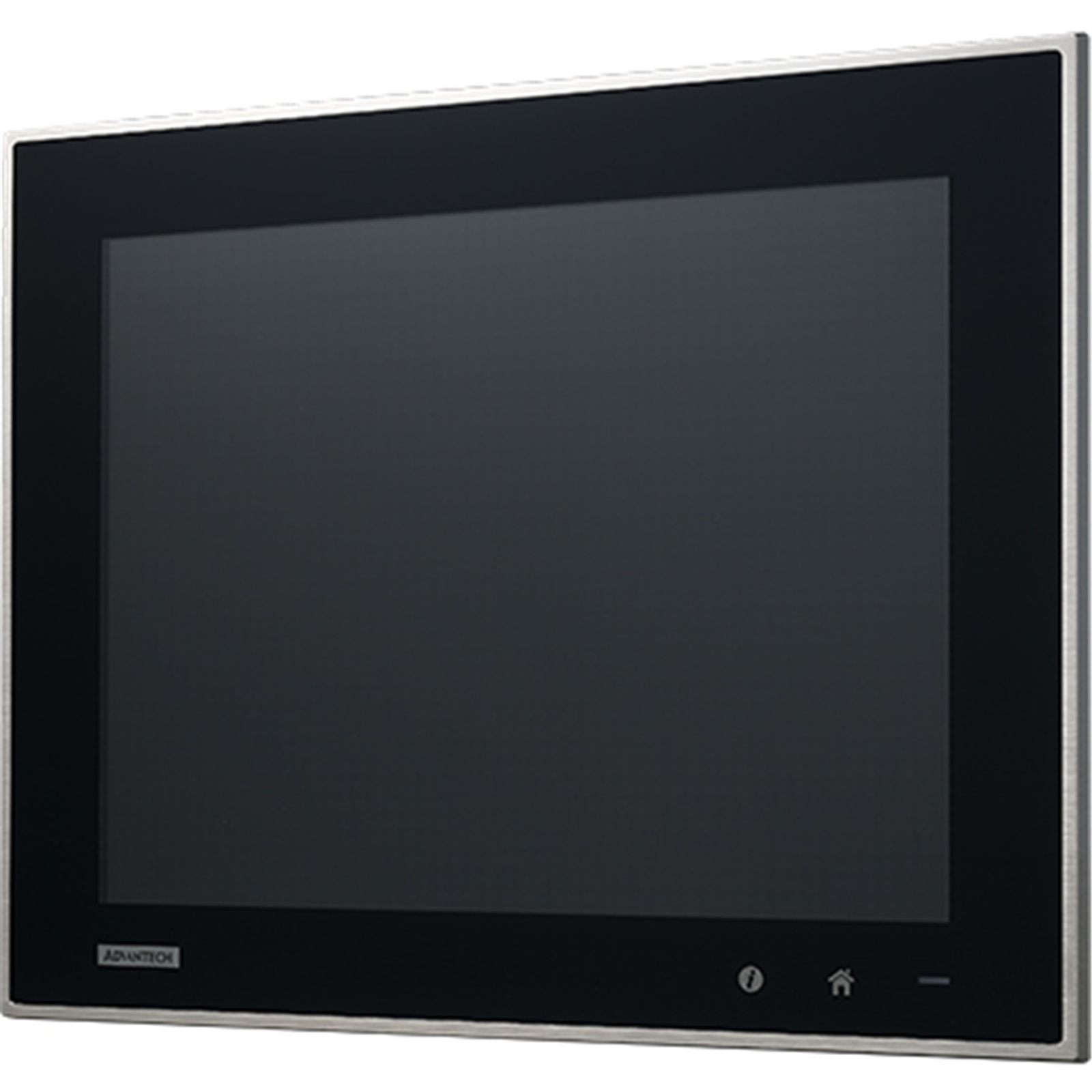

Advantech SPC-515-633AE 15" Multi-Touch Panel PC with Intel Core i3-6100U and Stainless Steel Housing and IP69K Rating

Brand: Advantech
MPN: SPC-515-633AE
Part #: IPCAVH221328
UPC:

PB Tech price

NZD $ 5,627 .73

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: SPC-515-633AE
Part #: IPCAVH221328
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

15" XGA TFT LED LCD Industrial Multi-Touch Panel PC with Stainless Steel Housing and IP69K Rating

The SPC-515 is a 15" multi-touch panel PC with a fully sealed, IP69k-rated 304L stainless steel housing, making it suitable for the food & beverage and pharmaceutical industries. Equipped with a 6th generation Intel® Core™ i3 processor that delivers high-performance computing, SPC-515 can be deployed as a data visualization gateway or control panel. The glass touchscreen is enhanced with shatter protection film that eliminates the potential for broken glass to cause safety hazards or food contamination issues. Moreover, the panel PC is compliant with EN 1672-2 specifications, ensuring adequate hygiene for food processing applications.

- All-around IP69K rating protects against dust and water
- 304L stainless steel housing
- 6th Gen Intel® Core™ processors (i3)
- Touchscreen equipped with shatter protection film
- PCAP multi-touch control
- Built-in function and home keys for intuitive operation
- Fanless cooling system
- Airflow valve design reduces condensation caused by temperature changes

Specifications

Environment

Ingress Protection

All-around IP69K

Operating Temperature

0~50 °C (32~122 °F)

Relative Humidity

95% RH (non-condensing)

Storage Temperature

-20~60 °C (-4~140 °F)

Vibration Protection

1 Grms, random

General

Humidity (Operating)

10~95% RH (non-condensing)

Humidity (Storage)

10~95% RH (non-condensing)

Rated Voltage

24 VDC (±10%)

Hardware

BIOS

AMI UEFI

Certification

CB, UL, CE, FCC Class A, CCC, BSMI

CPU

Intel® CoreTM i3-6100U 2.3GHz Skylake Dual Core, 3MB L2

Hardware Security

Optional

I/O

1 x RS-232, 2 x USB 2.0

LAN

2 x 10/100/1000 Mbps

Memory

2 x SO-DIMM with 8GB DDR3L

OS Support

Microsoft® Windows 10 LTSC

Power Consumption

60 W @ 24 VDC

Power Input

24 VDC ±10%

Power Requirement

24 VDC ±10%

I/O Interface

Expansion

Optional

LAN Ports

2 x 10/100/1000 Mbps

Power Connector

1 x M-12 A-coded 5 pin male

Serial Ports

1 x RS-232

USB Ports

2 x USB 2.0

LCD Display

Backlight Life (hrs)

70,000

Display Size

15"

Luminance (cd/m2)

300

Max. Resolution

1024 x 768

Viewing Angle (H/V°)

176/176

Mechanical

Dimension (W x H x D)

389.6 x 313.7 x 56 mm

Enclosure

Stainless steel

Form Factor

Passive Cooling

Mounting

VESA

Weight (Net)

10 kg (22.04 lb)

Power Requirements

Input Voltage

21~27 VDC

Touchscreen

Touch Type

PCAP

Manufacturer Part No:

SPC-515-633AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221328

Product Model:

SPC-515-633AE

Warranty: 12 months *
