Advantech SPC-815-633A 15.6"HD Panel PC SKYLAKE i3-6100U W/PIPE Mount
- Brand: Advantech
- MPN: SPC-815-633A
- Part #: IPCAVH221329

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221329/Advantech-SPC-815-633A-156HD-Panel-PC-SKYLAKE-i3-6
Features

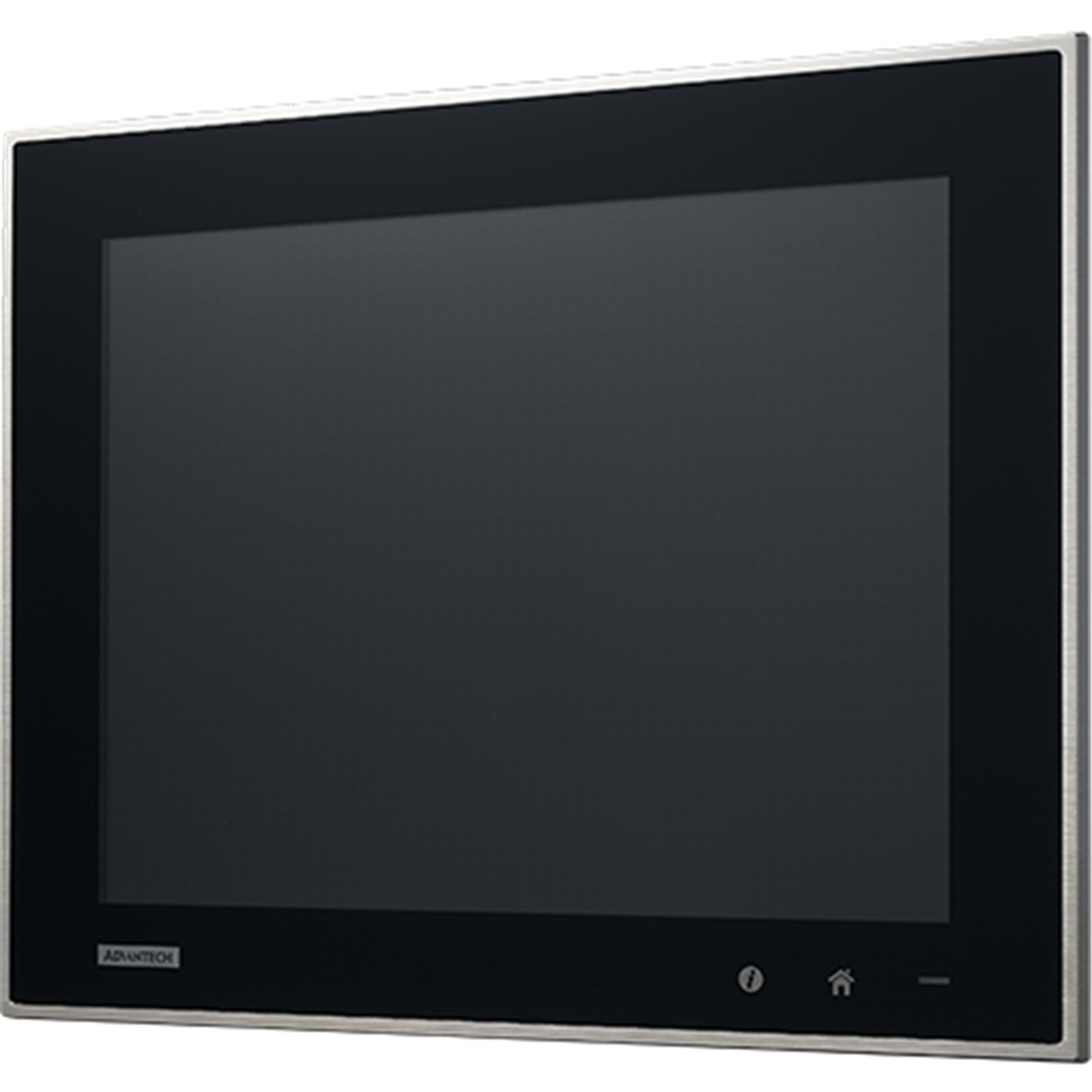

15" XGA TFT LED LCD Industrial Multi-Touch Panel PC with Stainless Steel Housing and IP69K Rating
The SPC-515 is a 15" multi-touch panel PC with a fully sealed, IP69k-rated 304L stainless steel housing, making it suitable for the food & beverage and pharmaceutical industries. Equipped with a 6th generation Intel® Core™ i3 processor that delivers high-performance computing, SPC-515 can be deployed as a data visualization gateway or control panel. The glass touchscreen is enhanced with shatter protection film that eliminates the potential for broken glass to cause safety hazards or food contamination issues. Moreover, the panel PC is compliant with EN 1672-2 specifications, ensuring adequate hygiene for food processing applications.
- All-around IP69K rating protects against dust and water
- 304L stainless steel housing
- 6th Gen Intel® Core™ processors (i3)
- Touchscreen equipped with shatter protection film
- PCAP multi-touch control
- Built-in function and home keys for intuitive operation
- Fanless cooling system
- Airflow valve design reduces condensation caused by temperature changes
Specifications
Environment
Ingress Protection
All-around IP69K
Operating Temperature
0~50 °C (32~122 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
1 Grms, random
General
Humidity (Operating)
10~95% RH (non-condensing)
Humidity (Storage)
10~95% RH (non-condensing)
Rated Voltage
24 VDC (±10%)
Hardware
BIOS
AMI UEFI
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
CPU
Intel® CoreTM i3-6100U 2.3GHz Skylake Dual Core, 3MB L2
Hardware Security
Optional

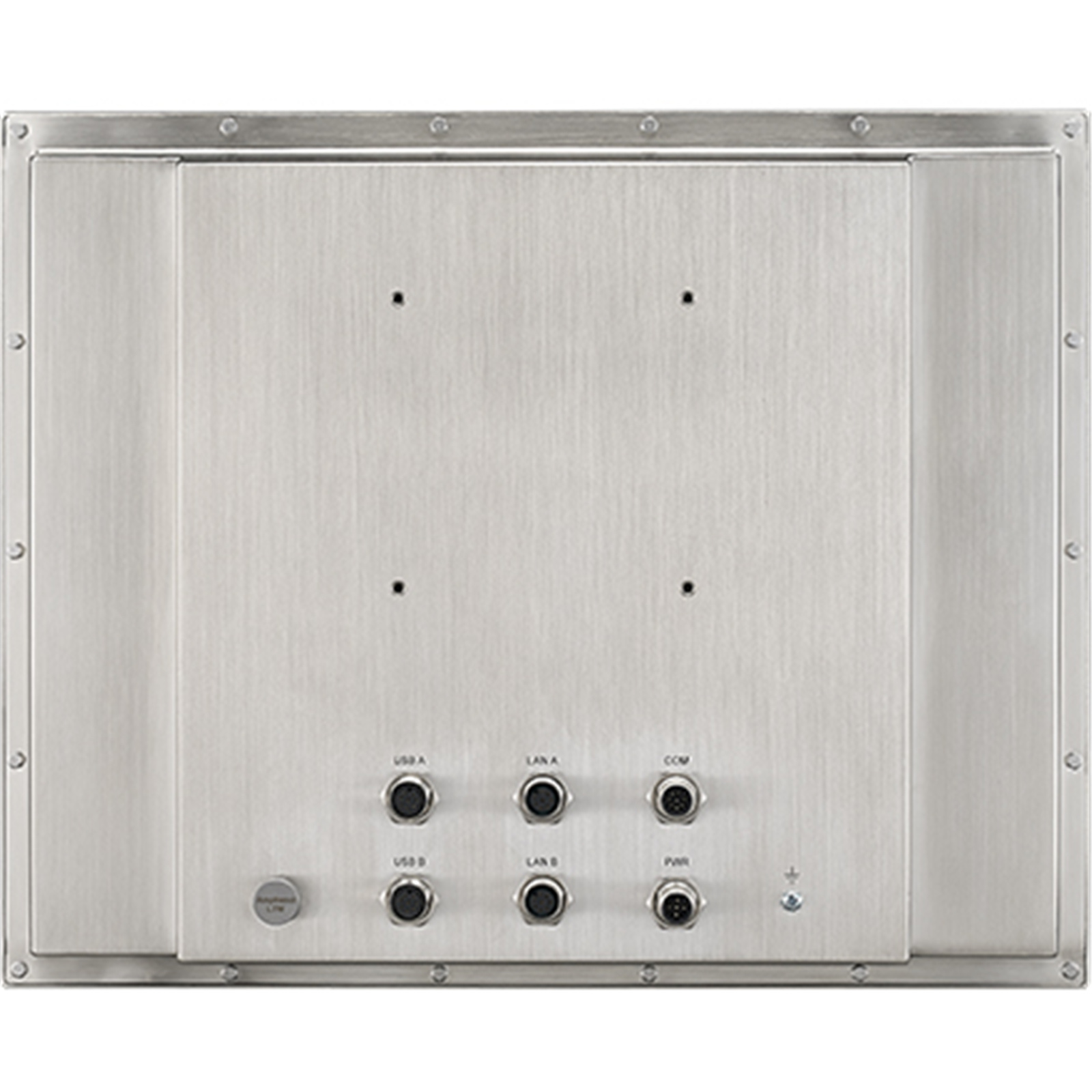

I/O
1 x RS-232, 2 x USB 2.0
LAN
2 x 10/100/1000 Mbps
Memory
2 x SO-DIMM with 8GB DDR3L
OS Support
Microsoft® Windows 10 LTSC
Power Consumption
60 W @ 24 VDC
Power Input
24 VDC ±10%
Power Requirement
24 VDC ±10%
I/O Interface
Expansion
Optional
LAN Ports
2 x 10/100/1000 Mbps
Power Connector
1 x M-12 A-coded 5 pin male
Serial Ports
1 x RS-232
USB Ports
2 x USB 2.0
LCD Display
Backlight Life (hrs)
70,000
Display Size
15"
Luminance (cd/m2)
300
Max. Resolution
1024 x 768
Viewing Angle (H/V°)
176/176
Mechanical
Dimension (W x H x D)
389.6 x 313.7 x 56 mm
Enclosure
Stainless steel
Form Factor
Passive Cooling
Mounting
VESA
Weight (Net)
10 kg (22.04 lb)
Power Requirements
Input Voltage
21~27 VDC
Touchscreen
Touch Type
PCAP
