Advantech SPC-821-M7A 21.5" Monitor Horizontal,DP,HDMI
- Brand: Advantech
- MPN: SPC-821-M7A
- Part #: IPCAVH221333

Product URL: https://www.pbtech.com/pacific/product/IPCAVH221333/Advantech-SPC-821-M7A-215-Monitor-HorizontalDPHDMI
Features

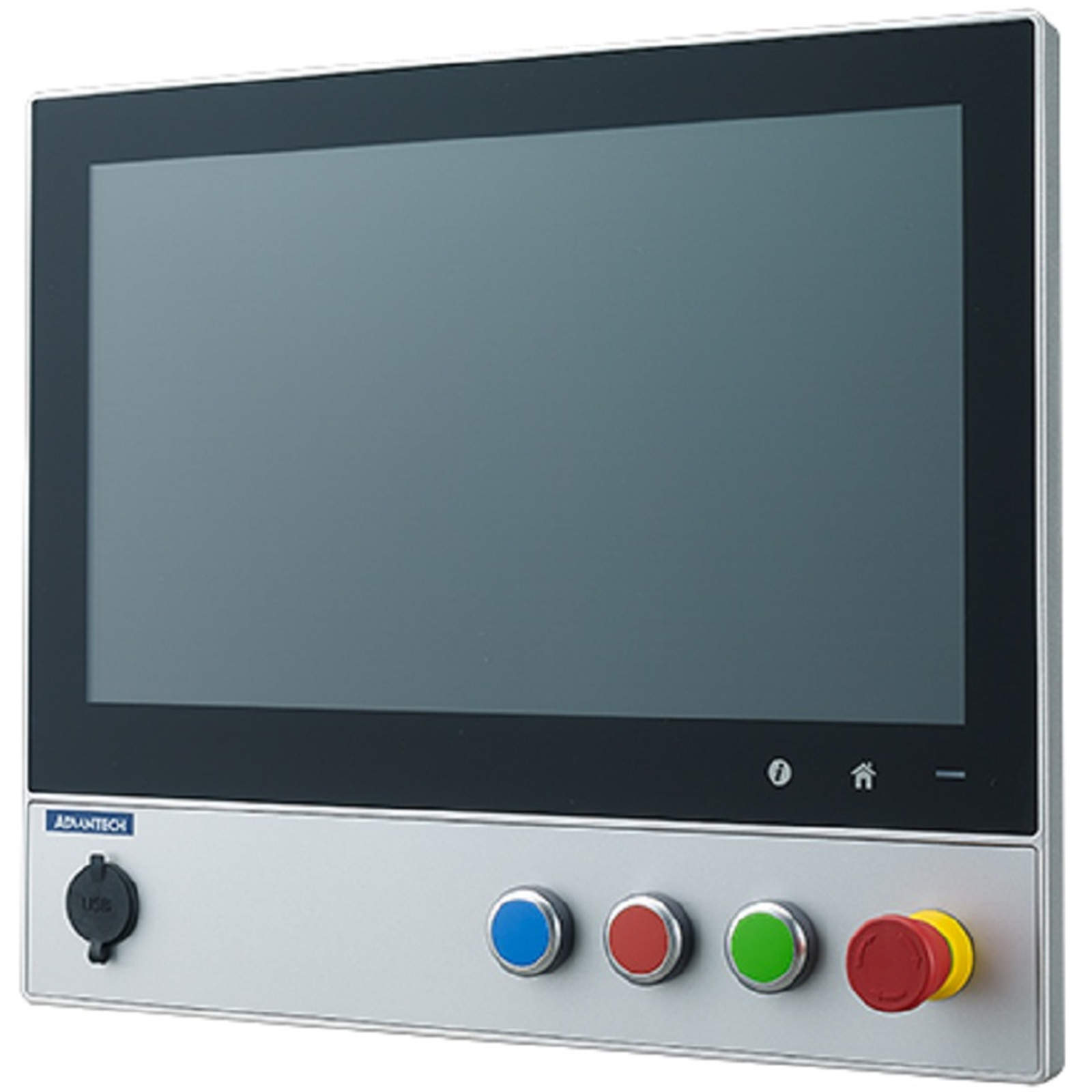

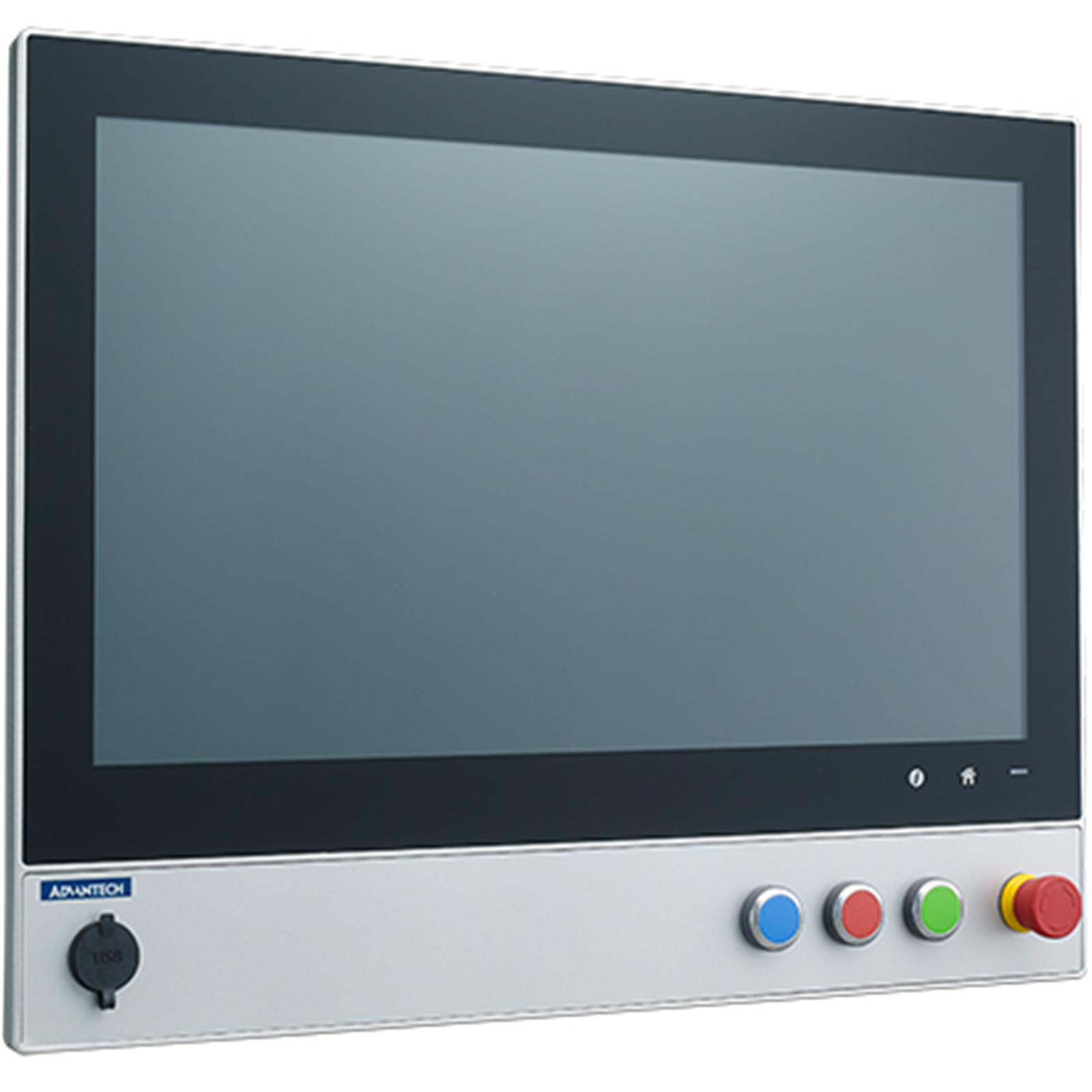

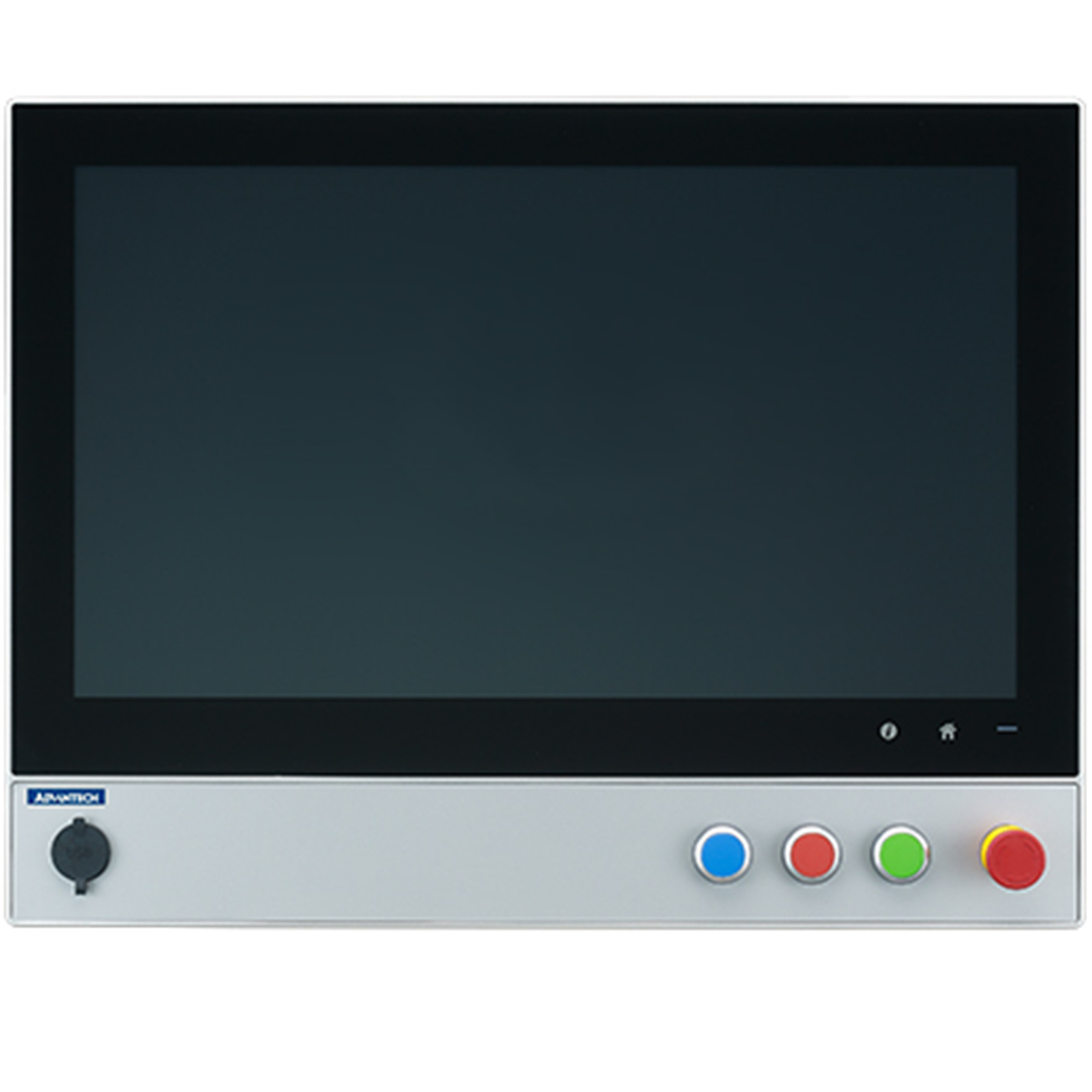

21.5" Integrated-Button Industrial Monitor
- All-round IP65-rated protection from water and dust
- Supports the RAFI FS22+ Series pushbuttons
- Silicone-free enclosure with all-round IP65-rated protection
- Supports CP 40 (Rittal) and CS-480 B.Flex (Bernstein) mount standards
- Front-facing USB ensures easy maintenance
- PCAP multi-touch control
Specifications
Environment
Ingress Protection
All-around IP65
Operating Temperature
0~55 °C (32~131 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
1 Grms, random
General
Humidity (Operating)
10~95% RH (non-condensing)
Humidity (Storage)
10~95% RH (non-condensing)
Rated Voltage
24 VDC (±20%)
Hardware
Certification
CB, UL, CE, FCC Class A, CCC
I/O
1 x USB 2.0, 2 x USB 3.0
Power Consumption
17 W @ 24 VDC
Power Input
24 VDC ±20%
Power Requirement
24 VDC ±20%
Video Port
HDMI, DP
I/O Interface
Displays
1 x HDMI, 1 x DP, 1 x HDBaseT
Power Connector
1 x 3-Pin Terminal Block
USB Ports
1 x USB 2.0, 2 x USB 3.0
LCD Display
Backlight Life (hrs)
50,000
Display Size
21.5"
Luminance (cd/m2)
250
Max. Resolution
1920 x 1080
Viewing Angle (H/V°)
178/178
Mechanical
Dimension (W x H x D)
546.69 x 420.34 x 67 mm
Enclosure
Die-cast aluminum alloy
Mounting
Pipe
Weight (Net)
8 kg (17.64 lb)
Power Requirements
Input Voltage
19~29 VDC
Touchscreen
Touch Type
PCAP
