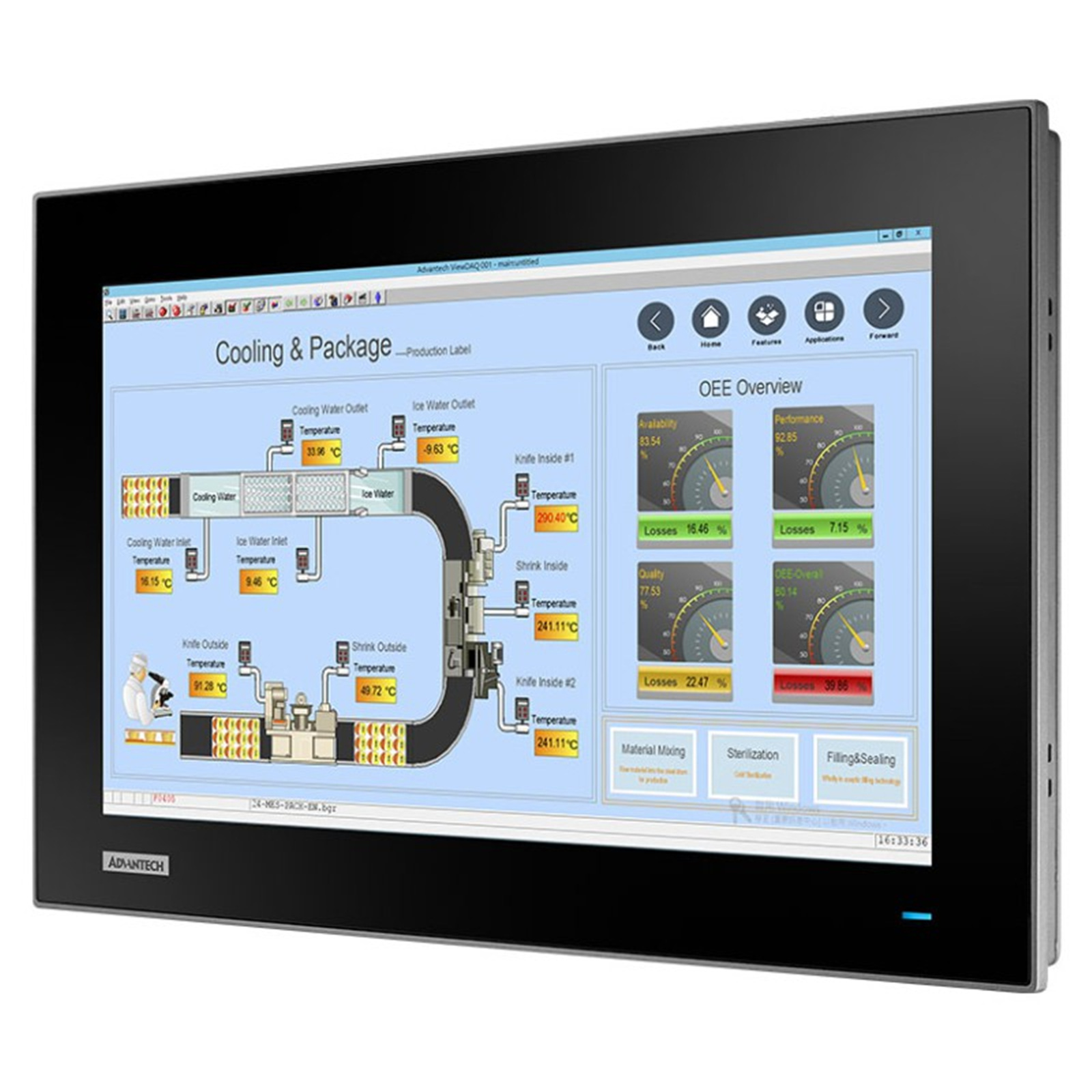

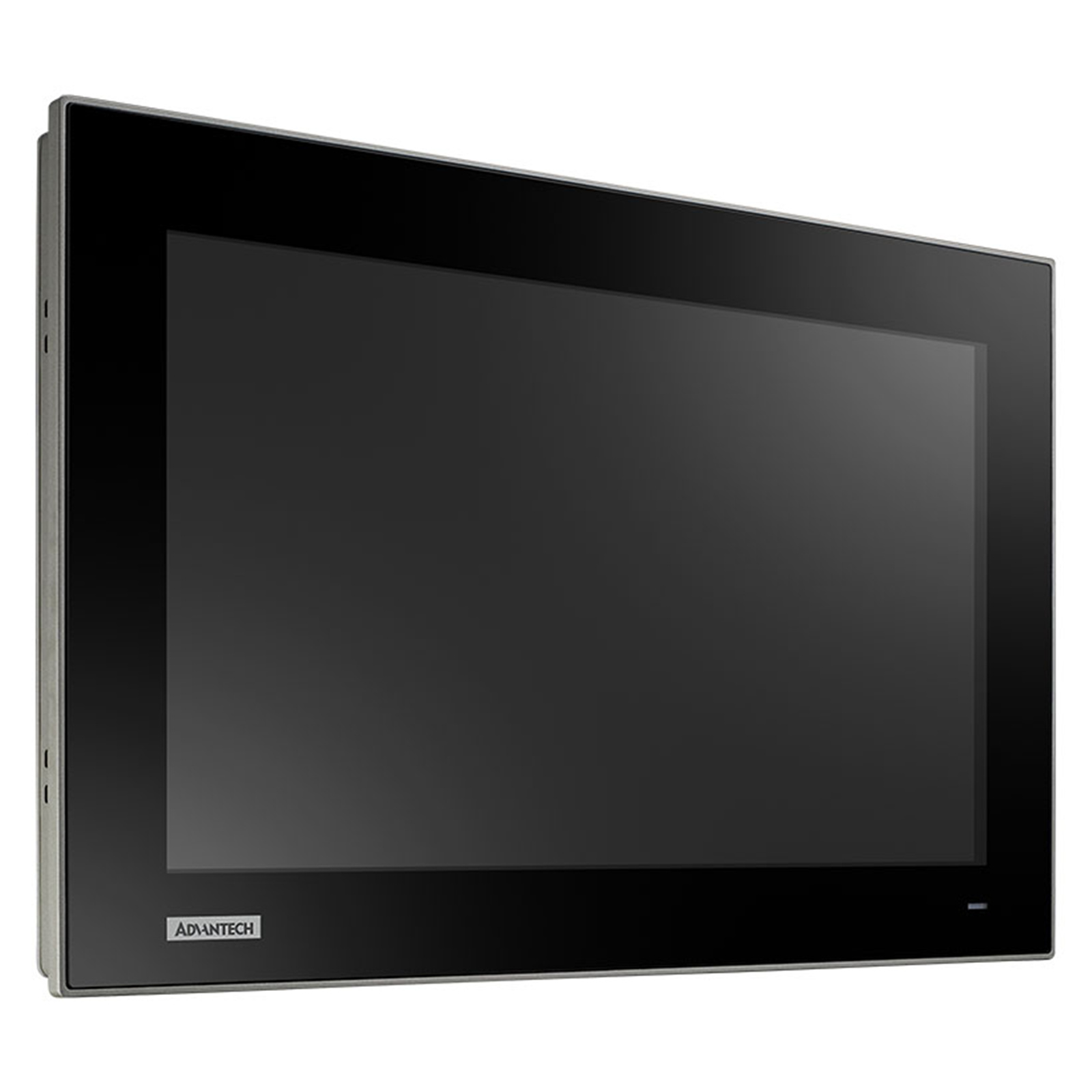

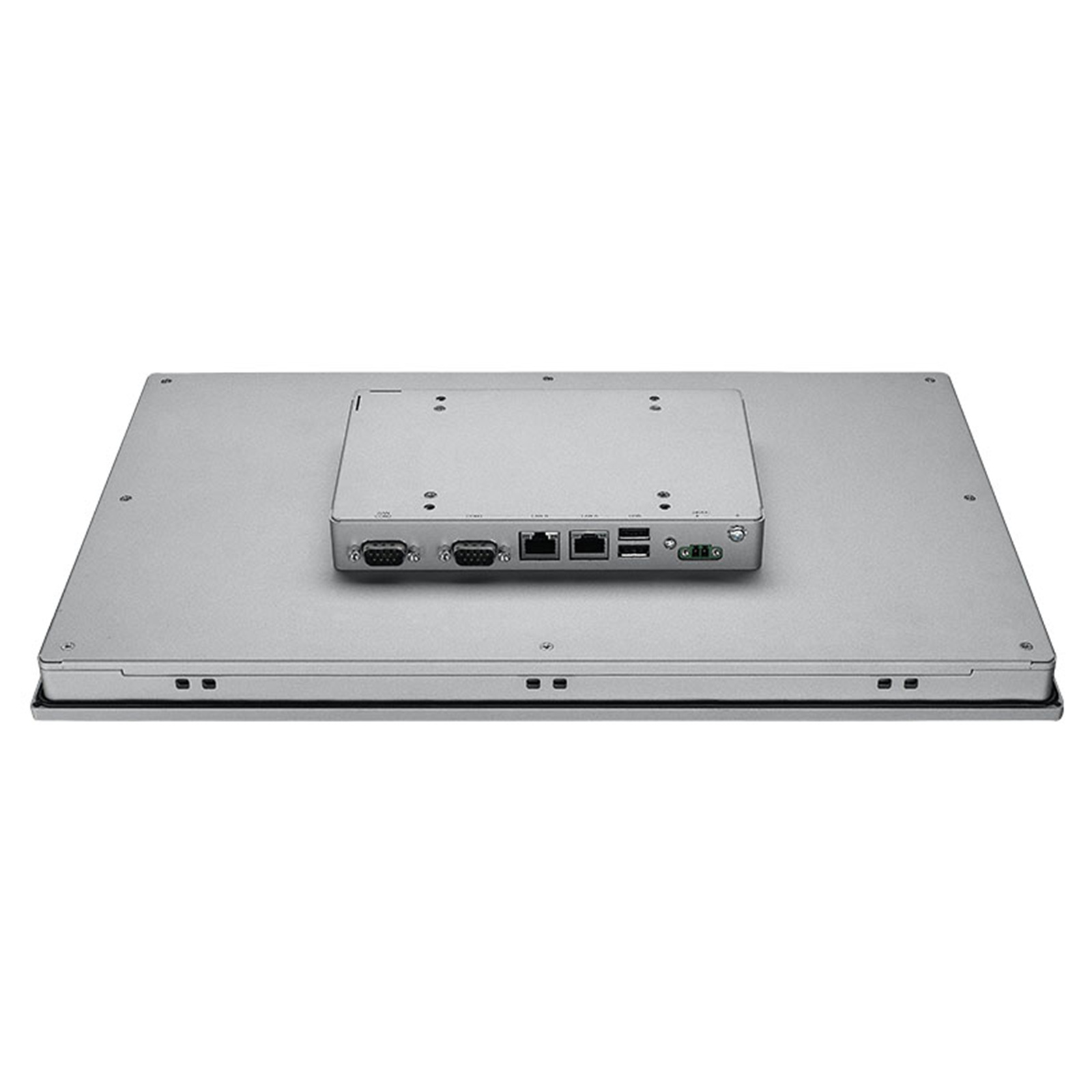

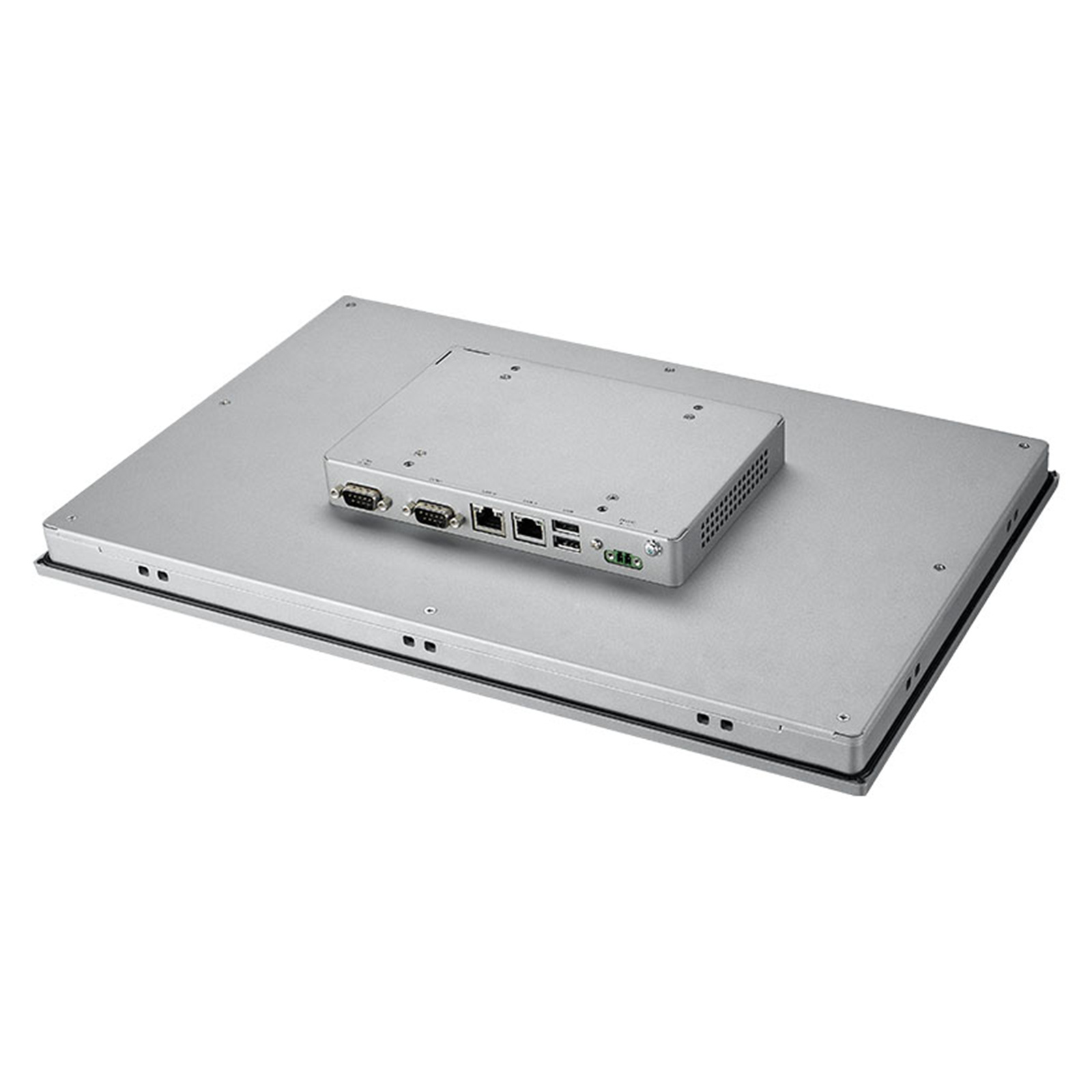

Advantech TPC-115W-N31AB 15.6" FHD Touch Panel Computer with ARM Cortex -A53 Processor,Android 10

PB Tech price

NZD $ 1,833 .33

$ 1,833 .33

Advantech TPC-115W-N31AB 15.6" FHD Touch Panel Computer with ARM Cortex -A53 Processor,Android 10

Brand: Advantech
MPN: TPC-115W-N31AB
Part #: IPCAVH221341
UPC:

PB Tech price

NZD $ 1,833 .33

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-115W-N31AB
Part #: IPCAVH221341
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

[Android] 15.6" Touch Panel Computer with ARM Cortex™-A53 Processor

- arm SystemReady IR certified
- NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor
- 15.6" 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel
- Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard
- 1 mb FRAM backup memory for unexpected power interruptions
- 2 x Serial port with 120O termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
- Embedded browser and for rapid Web App development
- Supports Android
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)

Specifications

LCD Display

Display Size

15.6"

Luminance (cd/m2)

450

Max. Resolution

1920 x 1080

Backlight Life (hrs)

50,000

Touchscreen

Touch Type

PCAP

Mechanical

Mounting

VESA, Panel

Enclosure

Die cast magnesium alloy, Die-casting aluminum

Weight (Net)

7 kg (15.4 lb)

Environment

Relative Humidity

95% RH (non-condensing)

Hardware

CPU

NXP® ARM® Cortex™ A53 i.MX8M 1.6 GHz Quad-Core

Memory

1 x LPDDR4 with 4 GB1

Storage

16 GB eMMC

LAN

10/100/1000Base-T Ethernet x 2

I/O

1 x RS-232, 1 x RS-232/422/485

Hardware Security

TPM 2.0

Certification

CB, UL, CE, FCC Class A, CCC, BSMI

OS Support

Android

Power Input

24 VDC ±20%

Wireless Communication

Standard (Technology)

WIFI

I/O Interface

USB Ports

2 x USB 2.0

Manufacturer Part No:

TPC-115W-N31AB

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221341

Product Model:

TPC-115W-N31AB

Warranty: 12 months *
