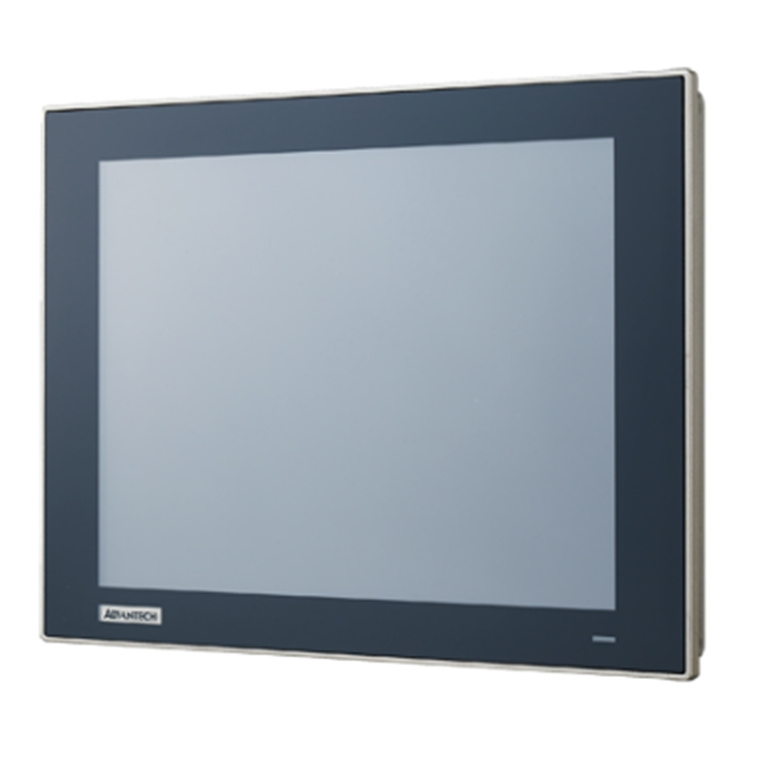

Advantech TPC-1251T-E3CE 12.1" XGA Thin Client Terminal Intel Atom E3845 , 1.91GHz, DDR3 4G

PB Tech price

NZD $ 2,230 .83

$ 2,230 .83

Advantech TPC-1251T-E3CE 12.1" XGA Thin Client Terminal Intel Atom E3845 , 1.91GHz, DDR3 4G

Brand: Advantech
MPN: TPC-1251T-E3CE
Part #: IPCAVH221344
UPC:

PB Tech price

NZD $ 2,230 .83

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-1251T-E3CE
Part #: IPCAVH221344
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The TPC-xx51T thin-client terminal is the next-generation model of Advantech's TPC-xx51T industrial panel PC. Equipped with a TFT LCD, low-power Intel® Atom™ E3845, 1.91GHz, quad-core processor, and 4 GB of DDR3L SDRAM, TPC-xx51T delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, TPC-xx51T supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and features a true-flat 5-wire resistive touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and 100 x 100 VESA mount kit. Moreover, with the provision of two full-size mini PCIe slots, which support mSATA interface for storage and USB/PCIe interface for Advantech's iDoor technology separately, TPC-xx51T can be easily expanded to provide additional I/O ports, isolated digital I/O, fieldbus protocols, MRAM, and 3G/GPS/GPRS/Wi-Fi communication capabilities.

- Intel® Atom™ E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Front-facing LED indicators to show operating status
- Advantech iDoor technology and SSD/HDD bay
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports VESA mount (100 x 100 mm)
- Supports Advantech's WISE-PaaS/RMM remote management software
- Supports Advantech's SNMP Subagent software

For more infomation: https://advdownload.advantech.com/productfile/PIS/TPC-1251T(B)/file/TPC-1251T_1551T_1751T_DS(101123)20231012153410.pdf

Specifications

MPN

TPC-1251T-E3CE
12.1" XGA Touch Panel PC, Atom E3845 1.91GHz, 4G

LCD

Display Type

XGA TFT LED LCD

Display Size

12.1"

Max. Resolution

1024 x 768

Max. Colors

16.2M

Luminance

600 cd/m²

Viewing Angle (H/V°)

178/178

Backlight Life

50,000 hr

Contrast Ratio

1000:1

General

BIOS

AMI UEFI

Certification

BSMI, CCC, CE, FCC Class A, UL

Cooling System

Fanless design

Dimensions (W x H x D)

311.8 x 238 x 55.4 mm (12.28 x 9.37 x 2.18 in)

Enclosure

Front bezel: Die-cast aluminum alloy
Back housing: SECC

Mount Options

VESA mount, Desktop/wall/panel

OS Support

Windows 10 Enterprise LTSB, Android, Advantech Linux

Power Consumption

25W Typical, 43.8W Max

Power Input

24 VDC +/- 20%

Watchdog Timer

1 ~ 255 sec (system)

Weight (Net)

3.12 kg (6.88 lb)

System Hardware

CPU

Intel® Atom™ E3845 1.91GHz Quad-core processor

Memory

1 x SO-DIMM with 4 GB DDR3L SDRAM (up to 8 GB)

LAN

2 x 10/100/1000 BASE-T

Expansion Slots

1 x Full-size mini PCIe (PCIe / USB)

Storage

1 x 2.5" SATA SSD, 1 x mSATA

I/O

1 x RS-232
1 x RS-232/422/485
1 x USB 3.0
3 x USB 2.0
1 x iDoor slot

Touchscreen

Lifespan

36 million touches at a single point

Light Transmission

Above 75%

Resolution

Linearity

Type

5-wire analog resistive

Environment

Relative Humidity

Operating, 95% RH @ 40° C, Non-Condensing
Non-Operating, 95% RH @ 60° C, Non-Condensing

Ingress Protection

IP66-rated front panel

Operating Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Storage Temperature

-30 ~ 70 °C (-22 ~ 158 °F)

Vibration Protection

With SSD: 1 Grms (5 ~ 500 Hz)
(operating, random vibration)

Manufacturer Part No:

TPC-1251T-E3CE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221344

Product Model:

TPC-1251T-E3CE

Warranty: 12 months *
