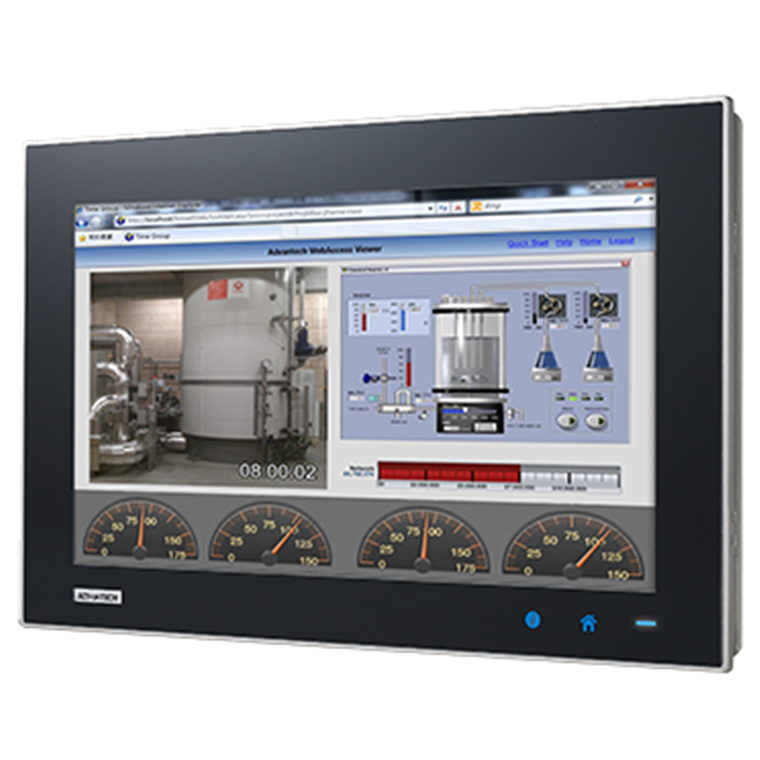

Advantech TPC-1551WP-E3AE 15.6" WXGA Thin Client Terminal Intel Atom E3827 , 1.75Ghz , DDR3 4G

PB Tech price

NZD $ 3,052 .00

$ 3,052 .00

Advantech TPC-1551WP-E3AE 15.6" WXGA Thin Client Terminal Intel Atom E3827 , 1.75Ghz , DDR3 4G

Brand: Advantech
MPN: TPC-1551WP-E3AE
Part #: IPCAVH221350
UPC:

PB Tech price

NZD $ 3,052 .00

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-1551WP-E3AE
Part #: IPCAVH221350
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The TPC-1551WP thin-client terminal is equipped with a 15.6" SXGA TFT LCD, low-power Intel® Atom™ E3827 1.75 GHz dual-core processor, and 4 GB DDR3L SDRAM to deliver sufficient computing performance in a compact, fanless system. For enhanced durability, TPC-1551WP features a true-flat touchscreen with IP66-rated front panel, die cast aluminum alloy front bezel, and projected capacitive touch control. Because of the system's compact but robust design, it can be easily deployed into existing infrastructure. Moreover, Advantech's iDoor technology can be integrated via the mini PCIe slot in order to provide additional I/O connectors, isolated digital I/O, fieldbus protocols, 3G/GPS/GPRS/Wi-Fi communication, and MRAM to support diverse industrial automation applications.

- Industrial-grade 15.6" WXGA TFT LCD with 50K lifetime and LED backlight
- Intel® Atom™ E3827 1.75 GHz dual-core processor with 4 GB DDR3L SDRAM
- 16:9 widescreen display with PCAP multi-touch control
- IP66-rated front panel and panel mount
- Built-in intelligent home key and iKey for intuitive operation
- Front-facing LED indicators to show operating status
- Supports Advantech's iDoor technology for integrating optional accessories
- Chassis grounding protection
- Anti-scratch surface with 7H hardness
- Supports AC/DC input with optional power adapter
- Supports Advantech's SNMP Subagent software
- Supports Advantech's WISE-PaaS/RMM remote management software

For more infomation: https://advdownload.advantech.com/productfile/PIS/TPC-1551WP/file/TPC-1551WP_DS(040921)20210409093028.pdf

Specifications

MPN

TPC-1551WP-E3AE
15.6" Multi-Touch Panel PC, Intel Atom E3827, 4GB DDR3L pre-installed

General

BIOS

AMI UEFI

Certification

BSMI, CCC, CE, FCC Class A, UL

Cooling System

Fanless design

Dimensions (W x H x D)

419.7 x 269 x 61.9 mm (16.52 x 10.59 x 2.44 in)

Enclosure

Front bezel: Die cast aluminum alloy
Back housing: SECC

Mount Options

Desktop, wall, and panel mount

OS Support

Microsoft® WES7 (32/64-bit), Windows 7 (32/64-bit), Windows 10 Enterprise LTSB

Power Input

24 VDC ± 20%

Power Consumption

48 W (Typical)

Watchdog Timer

1 ~ 255 sec (system)

Weight (Net)

5 Kg (11.02 lbs)

System Hardware

CPU

Intel® Atom™ E3827 1.75 GHz Processor

Memory

4 GB (Optional 8 GB) DDR3L 1600 MHz SODIMM SDRAM

LAN

2 x 10/100/1000BASE-T

Expansion Slots

1 x Full-size mini PCIe

Storage

1 x CFast
1 x 2.5" SATA SSD (optional)

I/O

1 x RS-232
1 x RS-232/422/485
1 x USB 3.0
1 x USB 2.0

LCD Display

Display Type

WXGA TFT LED LCD

Display Size

15.6"

Max. Resolution

1366 x 768

Max. Colors

16.7M

Luminance cd/m²

400

Viewing Angle (H/V°)

170/160

Backlight Life

50,000 hr

Contrast Ratio

500:1

Touchscreen

Light Transmission

90% ± 3%

Resolution

2048 x 2048 dot

Type

Projected capacitive

Environment

Humidity

10 ~ 95% RH @ 40 °C, non-condensing

Ingress Protection

Front panel: IP66

Operating Temperature

0 ~ 55 °C (32 ~ 131 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)

Manufacturer Part No:

TPC-1551WP-E3AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221350

Product Model:

TPC-1551WP-E3AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
