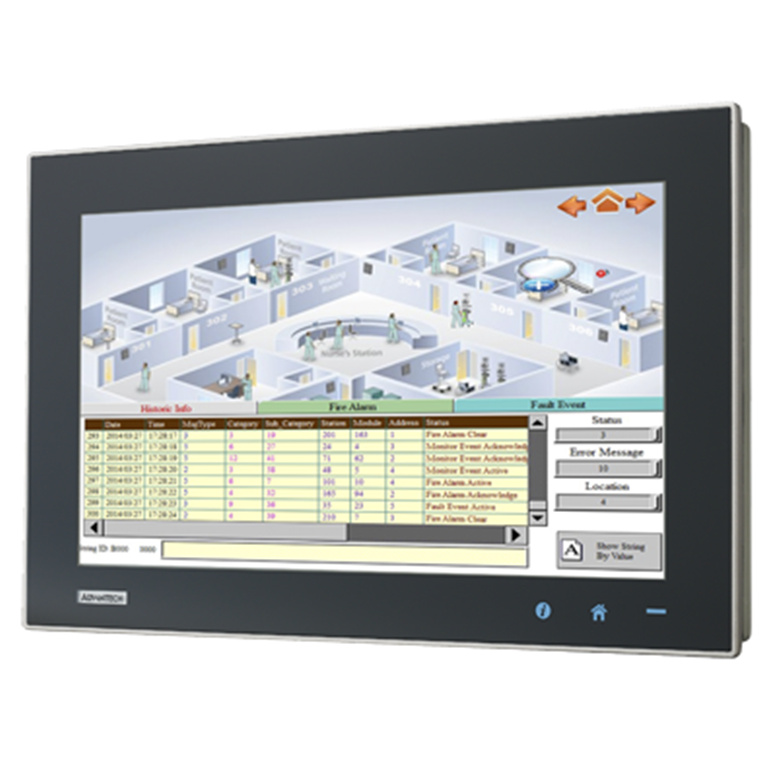

Advantech TPC-1581WP-433AE 15.6" widescreen PCT with Core i3 CPU and 4G RAM

PB Tech price

NZD $ 4,420 .00

$ 4,420 .00

Advantech TPC-1581WP-433AE 15.6" widescreen PCT with Core i3 CPU and 4G RAM

Brand: Advantech
MPN: TPC-1581WP-433AE
Part #: IPCAVH221353
UPC:

PB Tech price

NZD $ 4,420 .00

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-1581WP-433AE
Part #: IPCAVH221353
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The TPC-1581WP features a 4th Gen Intel Core i3-4010U 1.7 GHz processor with 4 GB DDR3L SDRAM to support high-performance computing. For enhanced durability and reliability, the system's 15.6" HD TFT LCD features an anti-scratch surface with 7H hardness, 16:9 widescreen aspect ratio, and multi-touch control. With the inclusion of Advantech's iDoor technology system via the mini PCIe slot, the system can be equipped with additional I/O, isolated digital I/O, fieldbus protocols, 3G/GPS/GPRS/Wi-Fi communication, and MRAM. Moreover, the integrated HDMI and audio ports allow a secondary monitor and speakers to be attached for increased functionality.

- Industrial-grade 15.6" HD TFT LCD with 50K lifetime and LED backlight
- 4th Gen Intel® Core™ i3-4010U with 4 GB DDR3L SDRAM
- 16:9 widescreen display with PCAP multi-touch
- IP66-rated front panel and panel mount
- Built-in intelligent home key and iKey for intuitive operation
- Front-facing LED indicators show operating status
- Diverse system I/O and isolated digital I/O via iDoor technology
- Supports fieldbus protocols via iDoor technology
- 3G/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Supports MRAM via iDoor technology
- Chassis grounding protection
- HDMI and audio multimedia support
- Anti-scratch surface with 7H hardness

For more infomation: https://advdownload.advantech.com/productfile/PIS/TPC-1581WP/file/TPC-1581WP_DS(010521)20210105171752.pdf

Specifications

MPN

TPC-1581WP-433AE

General

BIOS

AMI UEFI

Certification

BSMI, CCC, CE, FCC Class A, UL

Cooling System

Fanless design

Dimensions (W x H x D)

419.7 x 269 x 56.7 mm (16.52 x 10.59 x 2.23 in)

Enclosure

Front bezel: Die cast aluminum alloy
Back housing: PC/ABS resin

Mount Options

Panel

OS Support

Microsoft® WES7 (32/64-bit), Windows 7 (32/64-bit), Windows Embedded 8.1 Industry Pro (64-bit)
Ubuntu 14.04.2 LTS, Windows 10 IoT Enterprise LTSB

Power Consumption

18W typical, 60W max. (without add-on card)

Power Input

24VDC ± 20%

Watchdog Timer

1 ~ 255 sec (system)

Weight (Net)

6 kg (13.22 lbs)

System Hardware

CPU

4th Gen Intel® Core™ i3-4010U 1.7 GHz

Chipset

Lynx Point-LP

Memory

4 GB DDR3L 1600 MHz SODIMM SDRAM

LAN

2 x 10/100/1000BASE-T

Expansion Slots

Full-size mini PCIe

Storage

1 x CFast
1 x 2.5" SATA SSD
1 x mSATA (via mini PCIe slot; cannot used simultaneously with iDoor)

I/O

1 x RS-232/422/485, 1 x RS-232,
2 x USB 3.0, 1 x HDMI 1.4,
1 x Audio line out, 1 x USB 2.0 (optional),
1 x Audio mic in (optional)

LCD Display

Display Type

WXGA TFT LED LCD

Display Size

15.6

Max. Resolution

1366 x 768

Max. Colors

16.7M

Luminance

300 cd/m²

Viewing Angle (H/V°)

170/160

Backlight Life

50,000 hr

Contrast Ratio

500:1

Touchscreen

Light Transmission

>=88%

Resolution

2048 x 2048 dot

Type Projected capacitive

Environment

Humidity

10 ~ 95% RH @ 40 °C, non-condensing

Ingress Protection

IP66-rated front panel

Operating Temperature

0 ~ 55 °C (32 ~ 131 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz)
(operating, random vibration)
