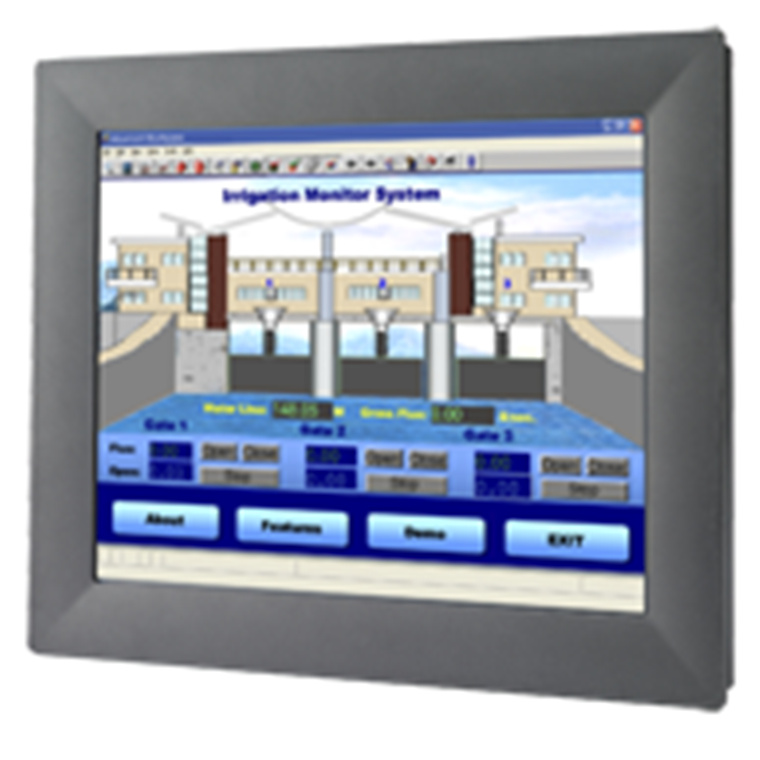

Advantech TPC-1771H-D3AE 17" SXGA, ATOM D525 1.8GHz/1M, 4GB

PB Tech price

NZD $ 4,230 .70

$ 4,230 .70

Advantech TPC-1771H-D3AE 17" SXGA, ATOM D525 1.8GHz/1M, 4GB

Brand: Advantech
MPN: TPC-1771H-D3AE
Part #: IPCAVH221355
UPC:

PB Tech price

NZD $ 4,230 .70

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-1771H-D3AE
Part #: IPCAVH221355
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The TPC-1771H features a fanless low power consuming Intel® Atom™ Dual Core 1.8GHz processor 4GB DDR3 SDRAM and Resistive touch screen, and multiple I/O ports 2 x RS-232 with isolation, 1 x RS-422/485 with isolation. For data storage the fanless TPC devices also include: 1 x Compact Flash Slot and 1 x 2.5" SATA HDD. To expand function, this model provides PCIe and mini-PCIe expansion slots, an integrated 16-channel Digital I/O with isolation and 1MB Battery-backed SRAM.

- Intel® Atom™ D525 1.8 GHz processor
- 17" SXGA TFT LED LCD
- Compact design with die-cast Al alloy front bezel
- Fanless cooling system
- IP65 approved front panel
- PCIe and Mini PCIe expansion support
- Supports 4 GB DDR3 SDRAM
- Integrated 16-channel Digital I/O with isolation
- 1 MB Battery-backed SRAM
- Serial port isolation protection
- Supports Microsoft® WES7/XP/WES/WinCE
- Supports external antenna for wireless communication
- Supports field-bus communication for PLC connectivity

For more infomation: https://advdownload.advantech.com/productfile/PIS/TPC-1771H/Product%20-%20Datasheet/DS-TPC-1771H-EN20160128105735.pdf

Specifications

MPN

TPC-1771H-D3AE
17" SXGA Touch Panel PC, D525 1.8 GHz, 4GB

General

BIOS

AMI 8Mbit

Certification

BSMI, CCC, CE, FCC Class A, UL

Cooling System

Fanless design

Dimensions (W x H x D)

414 x 347.5 x 84 mm
(16.3" x 13.68" x 3.31")

Enclosure

Front bezel: Die-cast Aluminum alloy
Back housing: PC/ABS Resin

Mounting

Desktop, Wall or Panel Mount

OS Support

Microsoft® Windows 7/WES7/WES 2009/XPE/CE 6.0/Linux /Android

Power Consumption

24 W (typical)

Power Input

10~29 VDC

Watchdog Timer

1 ~ 255 sec (system)

Weight (Net)

6 kg (13.23 lbs)

System Hardware

CPU

Intel® Atom™ D525 1.8 GHz with 1MB cache

Chipset

ICH8M

Memory

4GB SO-DIMM DDR3 SDRAM

LAN

10/100/1000Base-T x 2

Expansion Slots

Half-size PCI-E or full-size Mini PCI-E

Storage

CompactFlash® slot x 1
2.5" SATA HDD slot x 1

I/O

RS-232 x 2 (COM1, 2) with isolation
RS-422/485 x 1 (COM3) with isolation and auto data flow control
USB 2.0 x 2 (Host)
PS/2 x 1

DI/DO & backup SRAM

8 x DI/DO with isolation and backup 1MB SRAM

LCD Display

Display Type

SXGA TFT LED LCD

Display Size

17"

Max. Resolution

1280 x 1024

Max. Colors

262 K

Luminance cd/m²

350

Viewing Angle (H/V°)

170°/160°

Backlight Life

50,000 hrs

Contrast Ratio

1000:1

Touchscreen

Lifespan

36 million touches at single point

Light Transmission

Above 75%

Resolution

Linearity

Type

5-wire, analog resistive

Environment

Humidity

10 ~ 95% RH @ 40°C, non-condensing

Ingress Protection

Front panel: IP65

Operating Temperature

0 ~ 55°C (32 ~ 131°F)

Storage Temperature

-20 ~ 60°C (-4 ~ 140°F)

Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz)
(Operating, random vibration)

Manufacturer Part No:

TPC-1771H-D3AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221355

Product Model:

TPC-1771H-D3AE

Warranty: 12 months *
