Advantech TPC-1782H-433AE 17" SXGA Panel PC,Intel i3-4010U,4GB, iDoor,PCIe

PB Tech price

NZD $ 4,597 .06

$ 4,597 .06

Advantech TPC-1782H-433AE 17" SXGA Panel PC,Intel i3-4010U,4GB, iDoor,PCIe

Brand: Advantech
MPN: TPC-1782H-433AE
Part #: IPCAVH221356
UPC:

PB Tech price

NZD $ 4,597 .06

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-1782H-433AE
Part #: IPCAVH221356
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

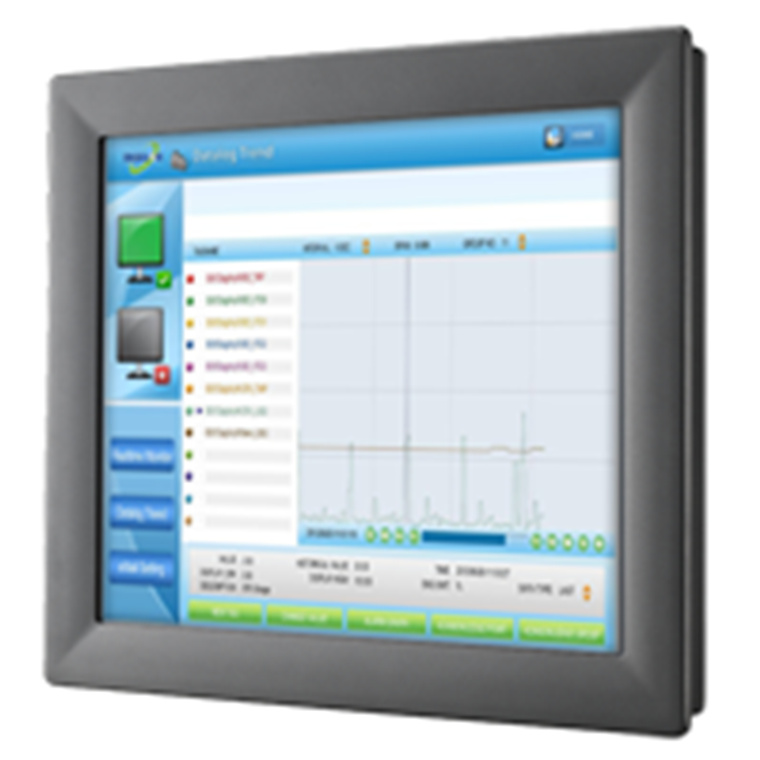

The TPC-1782H touch panel computer is equipped with a 17" SXGA TFT LCD, low-power 4th Gen Intel® Core™ i3-4010U/i7-4650U 1.7 GHz processor, and 4 GB DDR3L SDRAM to deliver high-performance computing in a compact, fanless system. To enhance the system's durability, TPC-1782H features an IP65-rated front panel that protects against dust and water ingress, a die-cast aluminum alloy front bezel, and 5-wire resistive touch control. TPC-1782H also includes PCIe and mini PCIe slots to extend the system functionalities and satisfy diverse automation application needs. Moreover, Advantech's iDoor technology can be integrated via the mini PCIe slot in order to provide additional I/O connectors, isolated digital I/O, fieldbus protocols, 3G/GPS/GPRS/Wi-Fi communication, and MRAM. The integrated HDMI and audio ports allow a secondary monitor and speakers to be attached for increased functionality.

- Industrial-grade 17" SXGA TFT LCD with 50K lifetime and LED backlight
- 4th Gen Intel® Core™ i3-4010U with 4 GB DDR3L SDRAM
- Compact, fanless embedded system with aluminum alloy front bezel
- IP65-rated front panel and panel mount
- Durable touchscreen with 5-wire resistive touch control
- Supports expansion via PCIe 1x and mini PCIe
- Diverse system I/O and isolated digital I/O via iDoor technology
- Supports fieldbus protocols via iDoor technology
- 3G/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Supports MRAM via iDoor technology
- Chassis grounding protection
- Supports Advantech's SNMP Subagent software
- Supports Advantech's WISE-PaaS/RMM remote management software

For more infomation: https://advdownload.advantech.com/productfile/PIS/TPC-1782H/file/TPC-1782H_DS(010521)20210105171530.pdf

Specifications

MPN

?TPC-1782H-433AE
17" SXGA Panel PC, Intel i3-4010U, 4GB, iDoor, PCIe

General

BIOS

AMI UEFI

Certification

BSMI, CCC, CE, FCC Class A, UL

Cooling System

Fanless design

Dimensions (W x H x D)

414 x 347.5 x 84 mm
(16.3" x 13.68" x 3.31")

Enclosure

Front bezel: Die-cast Aluminum alloy
Back housing: PC/ABS Resin

Mounting

Desktop, Wall or Panel Mount

OS Support

Microsoft® WES7 (32/64-bit), Windows 7 (32/64-bit),
Windows Embedded 8.1 Industry Pro (64-bit),
Windows 10 IoT Enterprise LTSB

Power Consumption

20W typical, 60W max. (without add-on card)

Power Input

24VDC ± 20%

Watchdog Timer

1 ~ 255 sec (system)

Weight (Net)

6 kg (13.23 lbs)

System Hardware

CPU

4th Gen Intel Core i3-4010U/i7-4650U 1.7 GHz

Chipset

Lynx Point-LP

Memory

4 GB DDR3L 1600 MHz SODIMM SDRAM

LAN

2 x 10/100/1000BASE-T (1 x supports iAMT)

Expansion Slots

1 x half-size PCIe, 1 x full-size mini PCIe

Storage

CompactFlash® slot x 1
2.5" SATA SDD slot x 1

I/O

1 x RS-232, 1 x RS-232/422/485
2 x USB 3.0, 1 x HDMI 1.4
1 x Audio line out, 1 x USB 2.0 (optional)
1 x Audio mic in (optional)

LCD Display

Display Type

SXGA TFT LED LCD

Display Size

17"

Max. Resolution

1280 x 1024

Max. Colors

16.7M

Luminance cd/m²

350

Viewing Angle (H/V°)

160/140

Backlight Life

50,000 hrs

Contrast Ratio

800:1

Touchscreen

Lifespan

36 million touches at single point

Light Transmission

Above 75%

Resolution

Linearity

Type

5-wire, analog resistive

Environment

Humidity

10 ~ 95% RH @ 40°C, non-condensing

Ingress Protection

Front panel: IP65

Operating Temperature

0 ~ 55°C (32 ~ 131°F)

Storage Temperature

-20 ~ 60°C (-4 ~ 140°F)

Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz)
(Operating, random vibration)

Manufacturer Part No:

TPC-1782H-433AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221356

Product Model:

TPC-1782H-433AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
