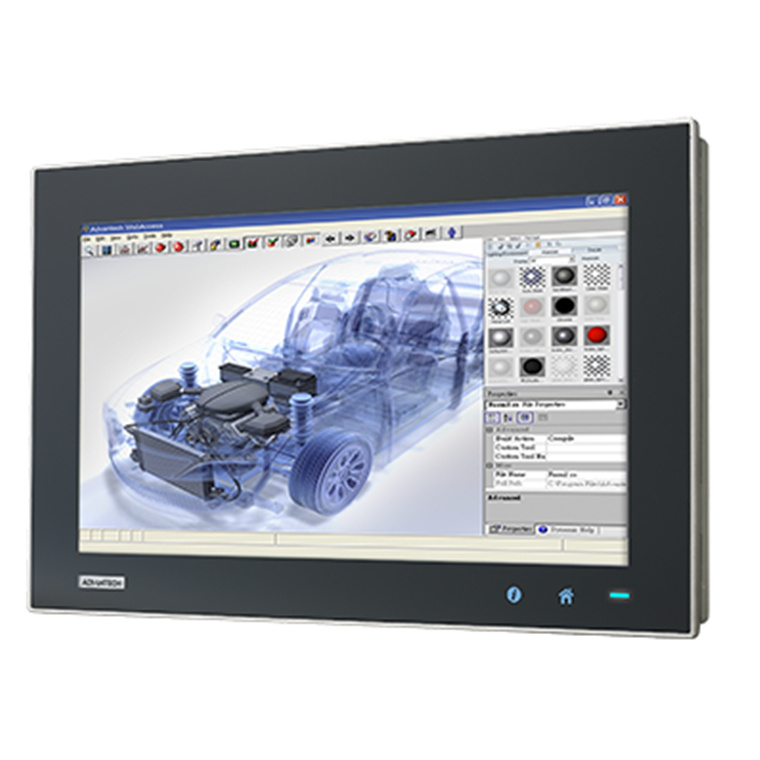

Advantech TPC-1881WP-473AE 18.5" widescreen PCT with Core i7 CPU and 4G RAM

PB Tech price

NZD $ 5,964 .46

$ 5,964 .46

Advantech TPC-1881WP-473AE 18.5" widescreen PCT with Core i7 CPU and 4G RAM

Brand: Advantech
MPN: TPC-1881WP-473AE
Part #: IPCAVH221359
UPC:

PB Tech price

NZD $ 5,964 .46

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-1881WP-473AE
Part #: IPCAVH221359
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The TPC-1881WP features a 4th Generation Intel Core i7-4650U 1.7 GHz processor with 4 GB/8 GB DDR3L SDRAM to support high-performance computing. For enhanced durability and reliability, the system's 18.5" HD TFT LCD features an anti-scratch surface with 7H hardness, 16:9 widescreen aspect ratio, and multi-touch control. With the inclusion of Advantech's iDoor technology system via the mini PCIe slot, the system can be equipped with additional I/O, isolated digital I/O, fieldbus protocols, 3G/GPS/GPRS/Wi-Fi communication, and MRAM. Moreover, the integrated HDMI and audio ports allow a secondary monitor and speakers to be attached for increased functionality.

- Industrial-grade 18.5" HD TFT LCD with 50K lifetime and LED backlight
- 4th Gen Intel® Core™ i7-4650U with 4 GB/8 GB DDR3L SDRAM
- 16:9 widescreen display with PCAP multi-touch
- IP66-rated front panel and panel mount
- Built-in intelligent home key and iKey for intuitive operation
- Front-facing LED indicators show operating status
- Diverse system I/O and isolated digital I/O via iDoor technology
- Supports fieldbus protocols via iDoor technology
- 3G/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Supports battery backup MRAM via iDoor technology
- Chassis grounding protection
- HDMI and audio multimedia support
- Anti-scratch surface with 7H hardness

For more infomation: https://advdownload.advantech.com/productfile/PIS/TPC-1881WP/file/TPC-1881WP_DS(010521)20210105171808.pdf

Specifications

MPN

TPC-1881WP-473AE
18.5" HD Multi-Touch Panel PC, Intel i7-4650U, 4GB, iDoor

General

BIOS

AMI UEFI

Certification

BSMI, CCC, CE, FCC Class A, UL

Cooling System

Fanless design

Dimensions (W x H x D)

488 x 309 x 56.7 mm (19.21 x 12.17 x 2.23 in)

Enclosure

Front bezel: Die cast aluminum alloy
Back housing: PC/ABS resin

Mounting

Panel Mount

OS Support

Microsoft® Windows WES7 (32/64-bit), WE8S (64-bit),
Windows 7 (32/64-bit), Windows 8 (64-bit), Ubuntu
14.04.2 LTS, Windows 10 IoT Enterprise LTSB

Power Consumption

28W typical, 60W max. (without add-on card)

Power Input

24VDC +/- 20%

Watchdog Timer

1 ~ 255 sec (system)

Weight (Net)

7 kg (15.44 lbs)

System Hardware

CPU

4th Gen Intel Core i3-4010U/ i7-4650U 1.7 GHz

Chipset

Lynx Point-LP

Memory

4 GB DDR3L 1600 MHz SODIMM SDRAM

LAN

2 x 10/100/1000BASE-T (1 x supports iAMT)

Expansion Slots

1 x Full-size mini PCIe

Storage

1 x CFast
1 x 2.5" SATA SSD

I/O

1 x RS-232, 1 x RS-232/422/485
2 x USB 3.0, 1 x HDMI 1.4
1 x Audio line out, 1 x USB 2.0 (optional)
1 x Audio mic in (optional)

LCD Display

Display Type

HD TFT LED LCD

Display Size

18.5

Max. Resolution

1366 x 768

Max. Colors

16.7M

Luminance cd/m²

300

Viewing Angle (H/V°)

170/160

Backlight Life

50,000 hr

Contrast Ratio

500:1

Touchscreen

Light Transmission

>=88%

Resolution

4096 x 4096 dot

Type

Projected capacitive

Environment

Humidity

10 ~ 95% RH @ 40°C, non-condensing

Ingress Protection

Front panel: IP66

Operating Temperature

0 ~ 55 °C (32 ~ 131 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz)
(Operating, random vibration)

Manufacturer Part No:

TPC-1881WP-473AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221359

Product Model:

TPC-1881WP-473AE

Warranty: 12 months *
