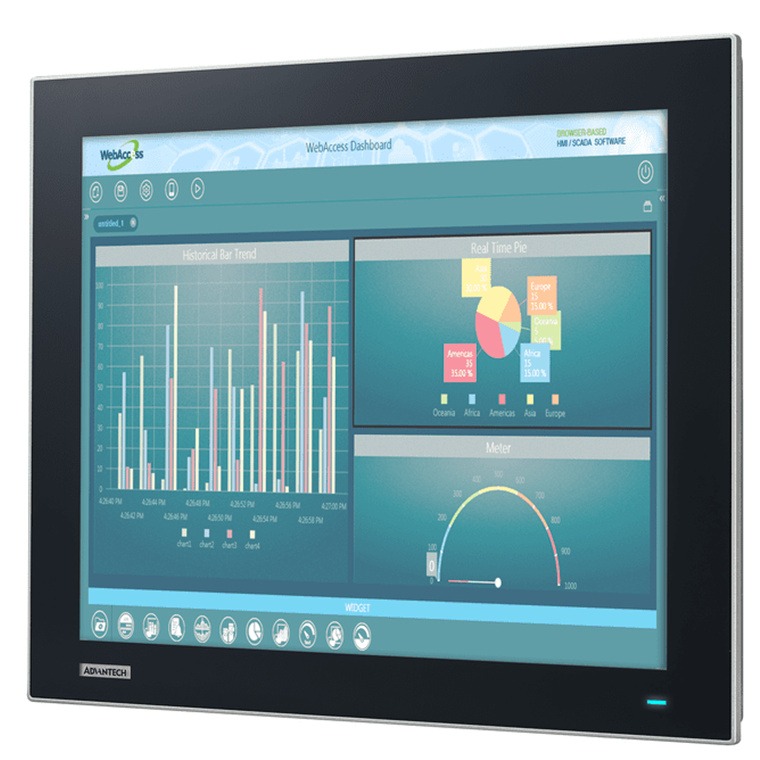

Advantech TPC-317-R833B 17" SXGA Touch Panel PC w/Core i3 CPU, 8G RAM

PB Tech price

NZD $ 3,996 .10

$ 3,996 .10

Advantech TPC-317-R833B 17" SXGA Touch Panel PC w/Core i3 CPU, 8G RAM

Brand: Advantech
MPN: TPC-317-R833B
Part #: IPCAVH221374
UPC:

PB Tech price

NZD $ 3,996 .10

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-317-R833B
Part #: IPCAVH221374
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech TPC-317-R833B 17" SXGA Touch Panel PC w/Core i3 CPU, 8G RAM

- Industrial-grade 17" SXGA TFT LCD with 50K lifetime and LED backlight
- 8th Gen. Intel® Core™ i3- 8145UE dual-core processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 64G in total
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Diverse system I/O and isolated digital I/O via iDoor technology
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Support TPM2.0 hardware security

For more information: https://advdownload.advantech.com/productfile/PIS/TPC-317/file/TPC-300-WHL_DS(050824)20240508114638.pdf

Specifications

Environment

Ingress Protection

Front Panel IP66

Operating Temperature

-10~55 °C (14~131 °F)

Storage Temperature

-20~70 °C (-4~158 °F)

Vibration Protection

1 Grms, random

General

Humidity (Operating)

10~95% RH (non-condensing)

Hardware

BIOS

AMI UEFI

Certification

CB, UL, CE, FCC Class A, CCC, BSMI

CPU

8th Gen. Intel® Core™ i3-8145UE 2.20GHz Dual-Core

I/O

1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot

LAN

1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps

Memory

1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot

OS Support

Microsoft® Windows 10 LTSC, Linux, Android

Power Consumption

45.48 W @ 24 VDC

Storage

1 x SATA M.2 SSD slot (2280 M-Key) ; 1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key

Watchdog Timer

15~255 s

I/O Interface

Audio

Line-Out, Microphone

Displays

1 x DP

Expansion

1 x Full-size mPCIe Slot, 1 x SIM card Slot

Serial Ports

2 x RS-232/422/485

LCD Display

Backlight Life (hrs)

50,000

Display Size

17"

Luminance (cd/m²)

300

Max. Resolution

1280 x 1024

Viewing Angle (H/V°)

160/140

Mechanical

Dimension (W x H x D)

410.4 x 343.4 x 68 mm

Enclosure

Die-cast aluminum alloy

Mounting

Stand, Wall, VESA, Panel

Weight (Net)

6.1 kg (13.45 lb)

Touchscreen

Touch Type

5-wire resistive

Manufacturer Part No:

TPC-317-R833B

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221374

Product Model:

TPC-317-R833B

Warranty: 12 months *
