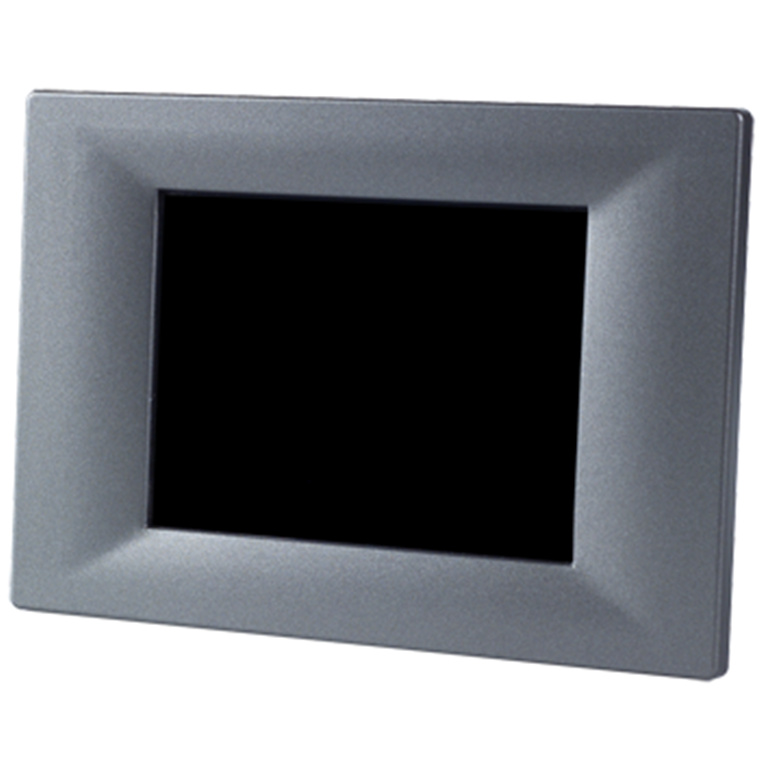

Advantech TPC-31T-E3AE 3.5" Touch Panel Computer with Cortex-A8 WinCE6.0

PB Tech price

NZD $ 728 .94

$ 728 .94

Advantech TPC-31T-E3AE 3.5" Touch Panel Computer with Cortex-A8 WinCE6.0

Brand: Advantech
MPN: TPC-31T-E3AE
Part #: IPCAVH221378
UPC:

PB Tech price

NZD $ 728 .94

In stock at Supplier

Delivery: Order now and it ships on 01 Oct

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-31T-E3AE
Part #: IPCAVH221378
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The TPC-31T model is a compact platform without redundant functions, and has been designed for small-sized operator interface applications. It has a 3.5" TFT LCD display which is a cost effective choice for a limited budget. Its RISC kernel, the TI Cortex-A8 processor consumes minimum power without sacrificing performance. The TPC-31T has a 10/100Base-T Ethernet port offering solid communication ability and comes bundled with a Windows® CE OS that supports Thin-Client solutions. The built-in Windows CE OS platform lets the TPC-31T become an Open HMI solution for system integration.

- TI Cortex-A8 processor on board
- 3.5" QVGA TFT LED LCD
- Super slim and compact design with plastic housing
- Fanless cooling system
- IP65 compliant front panel
- Built-in micro SD card with Windows® CE OS
- 1 x SD card slot
- Automatic data flow control RS-485
- Supports 1Mbit FRAM for data back-up

For more information: https://advdownload.advantech.com/productfile/PIS/TPC-61T/file/TPC-31T_61T_DS(080723)20230808092308.pdf

Specifications

Environment

Ingress Protection

Front Panel IP65

Operating Temperature

0~50 °C (32~122 °F)

Storage Temperature

-20~60 °C (-4~140 °F)

Vibration Protection

2 Grms, random

Ethernet

Speed

10/100 Mbps

General

Humidity (Operating)

10~95% RH (non-condensing)

Hardware

Certification

CE, FCC class A;CB/UL, CE, FCC Class A, CCC, BSMI

CPU

TI® ARM® Cortex™ A8 AM3517

I/O

RS-232/RS-485 X1 with auto data flow control, USB 2.0(Host) x 1, CAN x 1

LAN

1 x 10/100 Mbps

Memory

1 x SO-DIMM with 256 MB DDR2

OS Support

Microsoft® Windows CE 6.0

Power Consumption

8 W @ 24 VDC

Power Input

18~32 VDC

LCD Display

Backlight Life (hrs)

30,000

Display Size

3.5"

Luminance (cd/m2)

450

Max. Resolution

320 x 240

Mechanical

Dimension (W x H x D)

120.79 x 85.5 x 26.5 mm

Enclosure

ABS

Mounting

Panel

Weight (Net)

0.25 kg (0.55 lb)

Touchscreen

Touch Type

4-wire resistive

Manufacturer Part No:

TPC-31T-E3AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221378

Product Model:

TPC-31T-E3AE

Warranty: 12 months *
