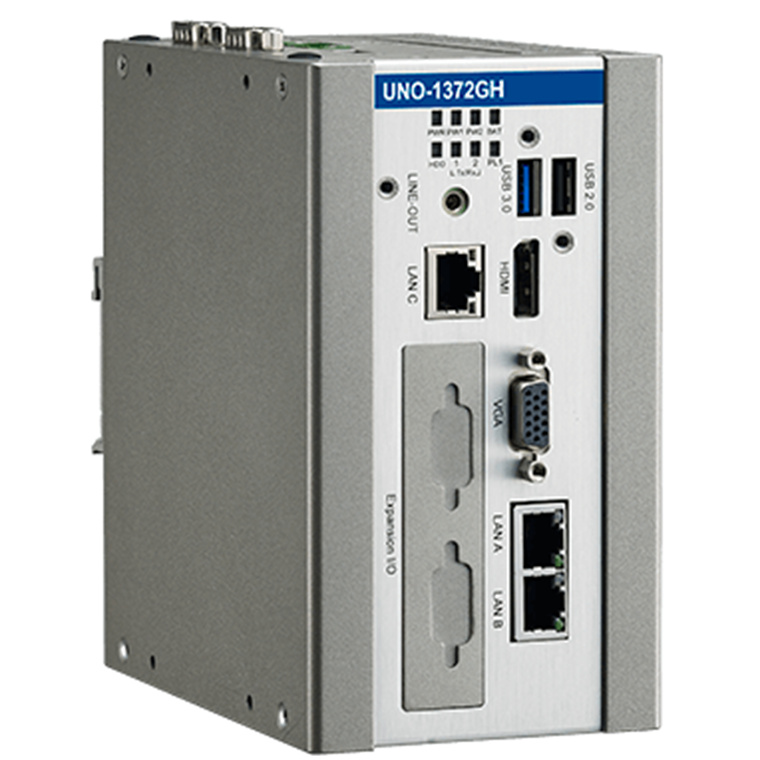

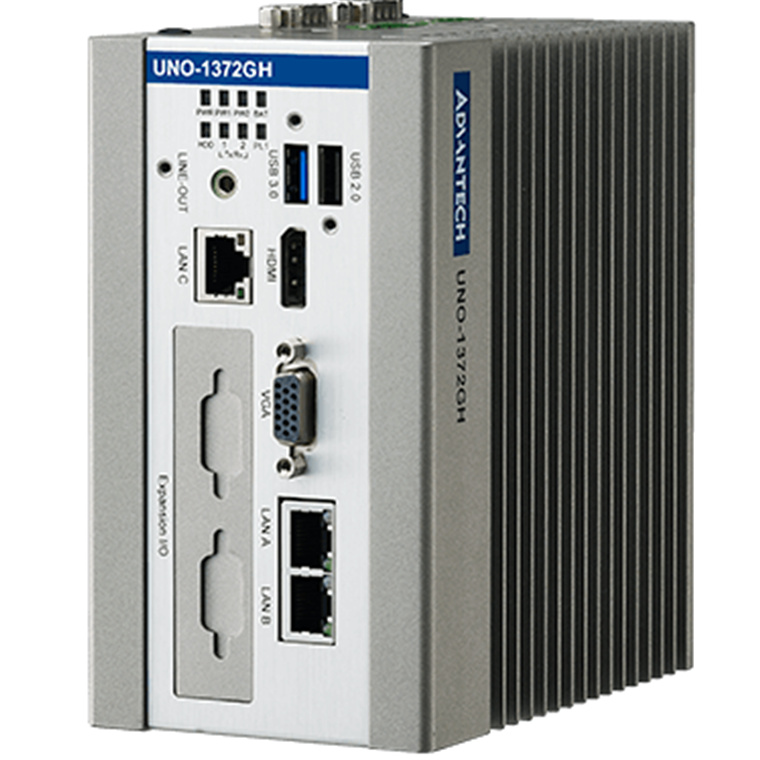

Advantech UNO-1372GH-E3AE Explosion-Proof DIN-Rail Gateway with Intel Atom E3845

PB Tech price

NZD $ 2,663 .30

$ 2,663 .30

Advantech UNO-1372GH-E3AE Explosion-Proof DIN-Rail Gateway with Intel Atom E3845

Brand: Advantech
MPN: UNO-1372GH-E3AE
Part #: IPCAVH221404
UPC:

PB Tech price

NZD $ 2,663 .30

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-1372GH-E3AE
Part #: IPCAVH221404
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech UNO-1372GH-E3AE Explosion-Proof DIN-Rail Gateway with Intel Atom E3845

In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. The UNO-1372GH is designed to be safely operated in these locations and are UL listed for Hazardous Locations with Class I, Division 2, groups A, B, C, D T4A certification. The UNO-1372GH is an Intel Atom DIN-rail PC which features an innovative iDOOR Technology for automation applications. It provides rich I/O include 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor,8 x DIO, all of them can be locked to make sure they are spark-free in harsh environments.

- UL listed for Hazardous Locations: Class I, Division 2
- Intel® Atom E3845 1.91GHz processor with 4GB DDR3L memory
- Dual power inputs
- Digital I/O with isolation protection for sensing and controlling
- Amazon AWS IoT Greengrass certified

Specifications

Environment

Ingress Protection

IP40

Operating Temperature

-20~60 °C (-4~140 °F)

Relative Humidity

95% RH (non-condensing)

Shock Protection

50 G, half sine

Storage Temperature

-40~85 °C (-40~185 °F)

Vibration Protection

5 Grms, random

Hardware

Certification

CB, UL, CE, FCC, CCC, BSMI, C1D2

CPU

Intel® Atom® E3845 1.91GHz Quad-Core

Graphics Engine

Intel® HD Graphics

Memory

1 x SO-DIMM with 4 GB DDR3L 1333 MHz

OS Support

Microsoft® Windows 10 2019 LTSC, WES7, Linux

Power Input

9~36 VDC

Storage

1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay

I/O Interface

Audio

Line-Out

Displays

1 x VGA, 1 x HDMI

Expansion

2 x Full-size mPCIe Slot

LAN Ports

3 x 10/100/1000 Mbps

Power Connector

1 x 4-Pin Terminal Block

Serial Ports

1 x RS-232, 1 x RS-422/485

USB Ports

1 x USB 3.0, 2 x USB 2.0

Local I/O

General Digital I/O

4-ch DI, 4-ch DO

Mechanical

Dimension (W x H x D)

85 x 139 x 152 mm

Enclosure

Aluminum housing

Weight (Net)

1.6 Kg (3.5 lb)

Manufacturer Part No:

UNO-1372GH-E3AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221404

Product Model:

UNO-1372GH-E3AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
