Advantech UNO-137-E23BA Intel x6413E,1.5GHz,8G DDR4,2LAN,2COM,4USB,8DIO

PB Tech price

NZD $ 1,300 .00

$ 1,300 .00

Advantech UNO-137-E23BA Intel x6413E,1.5GHz,8G DDR4,2LAN,2COM,4USB,8DIO

Brand: Advantech
MPN: UNO-137-E23BA
Part #: IPCAVH221407
UPC:

PB Tech price

NZD $ 1,300 .00

In stock at Supplier

Delivery: Order now and it ships on 26 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

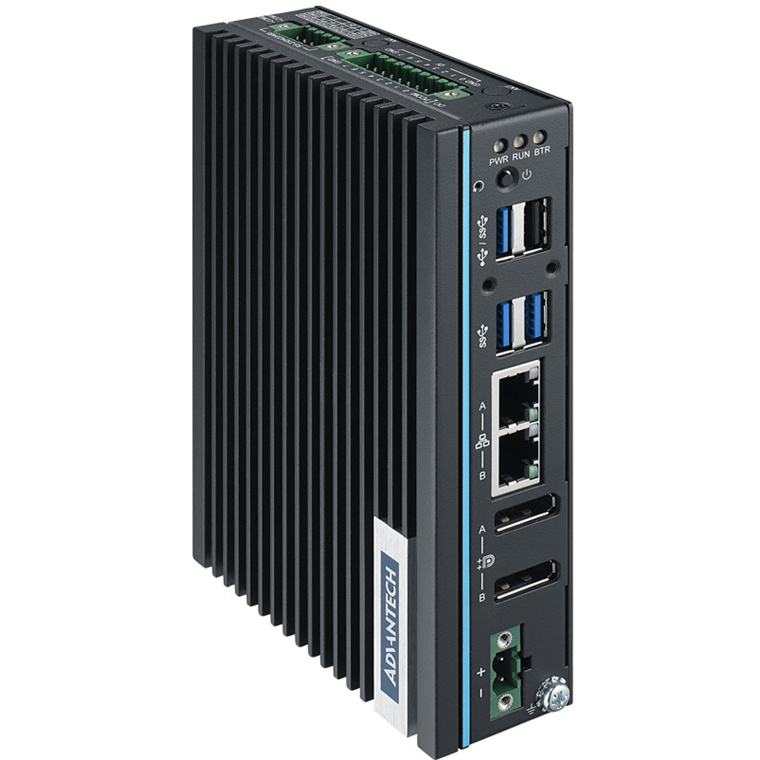

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-137-E23BA
Part #: IPCAVH221407
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech's UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements. UNO-137-E23BA is equipped with an Intel® Atom® x6413E (1.5 GHz) processor, 8 GB DDR4 RAM, and wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F), as well as 2 x LAN, 2 x COM, 3 x USB 3.2, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.2. The controller also supports 1 x full-size mini PCIe, 1 x M.2 (M-key), 1 x M.2 (E-key) and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-137 V2 can be equipped with an optional second-stack extension kit that supports Advantech's iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.

- Intel® Atom® x6413E (1.5 GHz) processor with 8GB DDR4 memory
- Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F) and wide power input range (10 ~ 36 VDC)
- Port isolation for 8 x DI, 8 x DO, 2 x COM
- DP++ ensures HDMI/DVI compatibility
- Dual storage: 1 xM.2 M-key 2242 PCIe/NVMe or SATA/SSD and 1 x mSATA
- Onboard TPM 2.0 provides hardware-based security
- Modular design for optional iDoor extension
- Ruggedized DIN-rail kit
- Compliant with IEC 61010-1 safety requirements

For more information: https://advdownload.advantech.com/productfile/PIS/UNO-137%20V2/file/UNO-137-V2_DS(083024)20240830093240.pdf

Specifications

Hardware

Power Input

10~36 VDC

CPU

Intel® Atom™ x6413E 1.5GHz Quad-Core

Memory

1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz

Certification

CE, FCC, UL 61010-2-201, CCC, BSMI

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux

Hardware Security

TPM 2.0

Storage

1 x SATA M.2 SSD slot (2242 M-Key)

Graphics Engine

Intel® UHD Graphics

Mechanical

Weight (Net)

0.8 kg (1.7 lb)

Enclosure

Aluminum housing

Mounting

DIN-rail

Dimension (W x H x D)

35 x 150 x 105 mm

I/O Interface

LAN Ports

2 x 10/100/1000/2500 Mbps

Displays

2 x DP

Expansion

1 x Full-size mPCIe Slot,
1 x M.2 E key,
1 x SIM Card Slot

Power Connector

1 x 2-Pin Terminal Block

USB Ports

3 x USB 3.2, 1 x USB 2.0

Serial Ports

2 x RS 232/422/485

Environment

Storage Temperature

-40~85 °C (-40~185 °F)

Ingress Protection

IP20

Vibration Protection

2 Grms, random

Shock Protection

50 G, half sine

Operating Temperature

-40~70 °C (-40~158 °F)

Relative Humidity

95% RH (non-condensing)

Relative Humidity

95% RH (non-condensing)

General Digital I/O

8-ch DI, 8-ch DO

Manufacturer Part No:

UNO-137-E23BA

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221407

Product Model:

UNO-137-E23BA

Warranty: 12 months *
