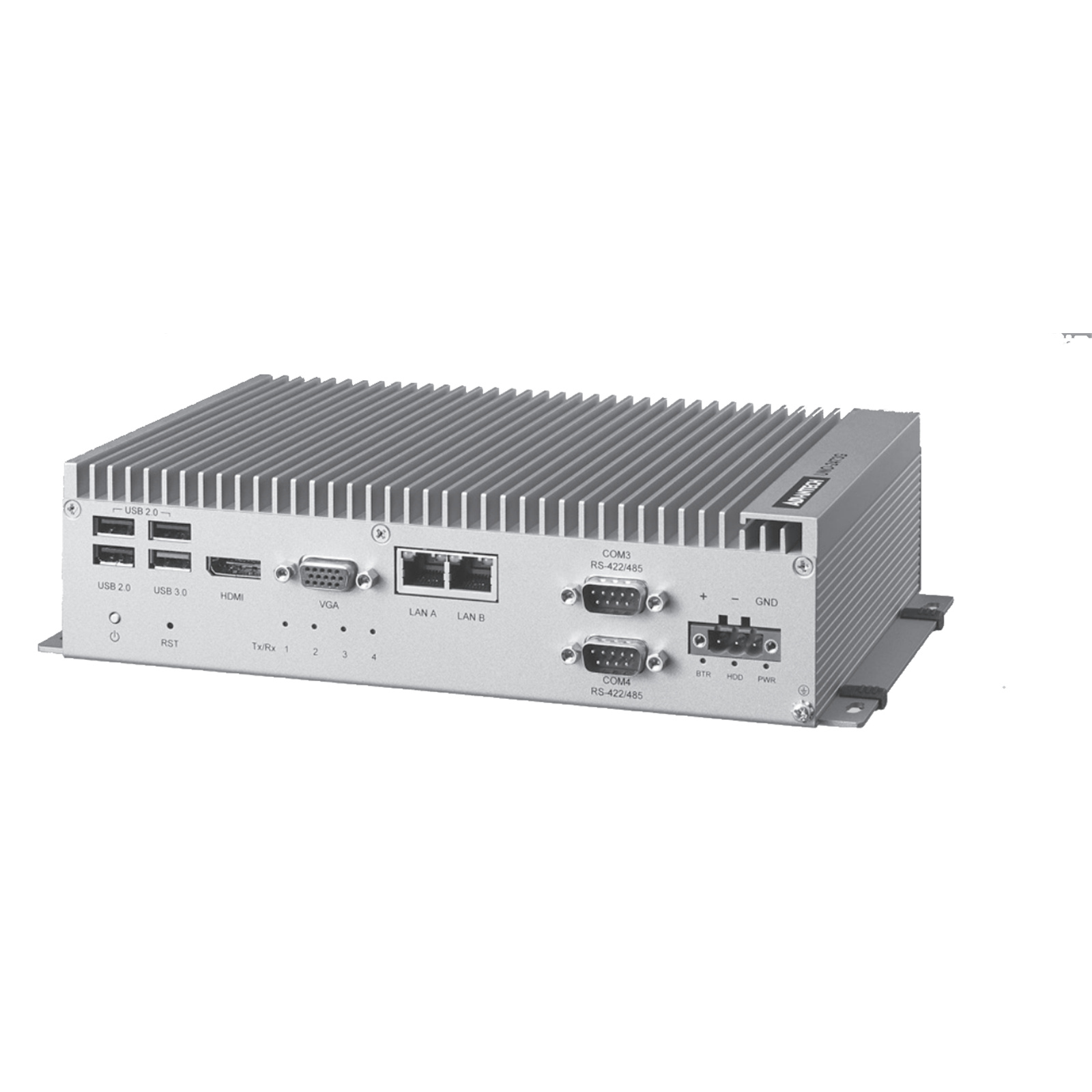

Advantech UNO-2473G-J3AE Industrial Automation PC with Intel Celeron J1900

PB Tech price

NZD $ 1,415 .38

$ 1,415 .38

Advantech UNO-2473G-J3AE Industrial Automation PC with Intel Celeron J1900

Brand: Advantech
MPN: UNO-2473G-J3AE
Part #: IPCAVH221438
UPC:

PB Tech price

NZD $ 1,415 .38

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-2473G-J3AE
Part #: IPCAVH221438
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- 4th Generation Intel® Atom/Celeron J1900 Processor up to 1.91/2.0 GHz with 4GB DDR3L Memory
- 4/2 x GbE, 3 x USB 2.0 and 1 x USB 3.0/4 x USB 2.0 and 1 x USB 3.0, 2 x RS-232, 2 x RS-422/485 (E3AE), 2 x RS-232/422/485 (J3AE), 1 x VGA, 1 x HDMI, Audio
- Compact with Fanless Design
- Rubber Stopper Design with Captive Screw
- Diverse system IO and Isolated Digital IO by iDoor Technology
- Supports MRAM by iDoor Technology
- Chassis Grounding Protection
- LAN Redundancy (Teaming)
- Fault-Protected RS-485 Transceivers With Extended Common-Mode Range

Specifications

General

Certification

CE, FCC, UL, CCC, BSMI

Dimensions (W x D x H)

252 x 149 x 62 mm (9.9" x 5.9" x 2.4")

Form Factor

Regular Size

Enclosure

Aluminum Housing

Mounting

Stand, Wall, VESA (Optional), Din-rail (Optional)

Weight (Net)

1.6kg (3.5lbs)

Power Requirements

24VDC ± 20% (UNO-2473G-E3AE)
12/24VDC± 20% (UNO-2473G-J3AE)

Power Consumption

UNO-2473G-E3AE: 15W (Typical), 68W (Max)
UNO-2473G-J3AE: 15W (Typical), 55W (Max)

OS Support

Microsoft® Windows 7/8, Windows 10, Windows Embedded
Compact 7, Advantech Linux

System Hardware

BIOS

AMI UEFI 128Mbit Flash BIOS

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Processor

Intel® Atom™ Processor E3845 1.91 GHz Quad Core
Intel® Celeron™ Processor J1900 2.0 GHz Quad Core

System Chip

Integrated Intel SoC Chipset

Memory

Built-in 4GB DDR3L 1600MHz

Graphics Engine

Intel® HD Graphics

Ethernet

Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az

LED Indicators

LEDs for Power, battery, LAN (Active, Status), COM (Tx/Rx) (UNO-2473G-E3AE only) and HDD

Storage

One mSATA slot
One drive bay for SATA 2.5" HDD

Expansion

UNO-2473G-E3AE : 3 x Full-size mPCIe slot, mPCIe 2.0
UNO-2473G-J3AE: 1 x Full-size mPCIe slot, mPCIe 2.0

I/O Interfaces

Serial Ports

UNO-2473G-E3AE: 2 x RS-232, DB9, 50 ~ 115.2kbps ,
2 x RS-422/485, DB9, auto flow control, 50 ~ 115.2kbps
UNO-2473G-J3AE: 2 x RS-232, DB9, 50 ~ 115.2kbps,
2 x 232/422/485, DB9, auto flow control, 50 ~ 115.2kbps

LAN Ports

UNO-2473G-E3AE: 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u
1000BASE-T Fast Ethernet
UNO-2473G-J3AE: 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u
1000BASE-T Fast Ethernet
USB Ports UNO-2473G-E3AE: 4 x USB Ports (3 x USB 2.0, 1 x USB 3.0 compliant)
UNO-2473G-J3AE: 5 x USB Ports (4 x USB 2.0, 1 x USB 3.0 compliant)

Displays

1 x VGA, supports 1920 x 1080 at 60Hz
1 x HDMI, supports 1920 x 1080 at 60Hz

Audio

Line-in, Line-out

Power Connector

1 x 3 Pins, Terminal Block

Grounding Protection

Chassis Grounding

Environment

Operating Temperature

UNO-2473G-E3AE: - 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
UNO-2473G-J3AE: - 10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

Storage Temperature

- 40 ~ 85°C ( -40 ~ 185°F)

Relative Humidity

10 ~ 95% RH @ 40°C, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz,1hr/axis (HDD)

Ingress Protection

IP40

Manufacturer Part No:

UNO-2473G-J3AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

3 kg

PB Part No:

IPCAVH221438

Product Model:

UNO-2473G-J3AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
