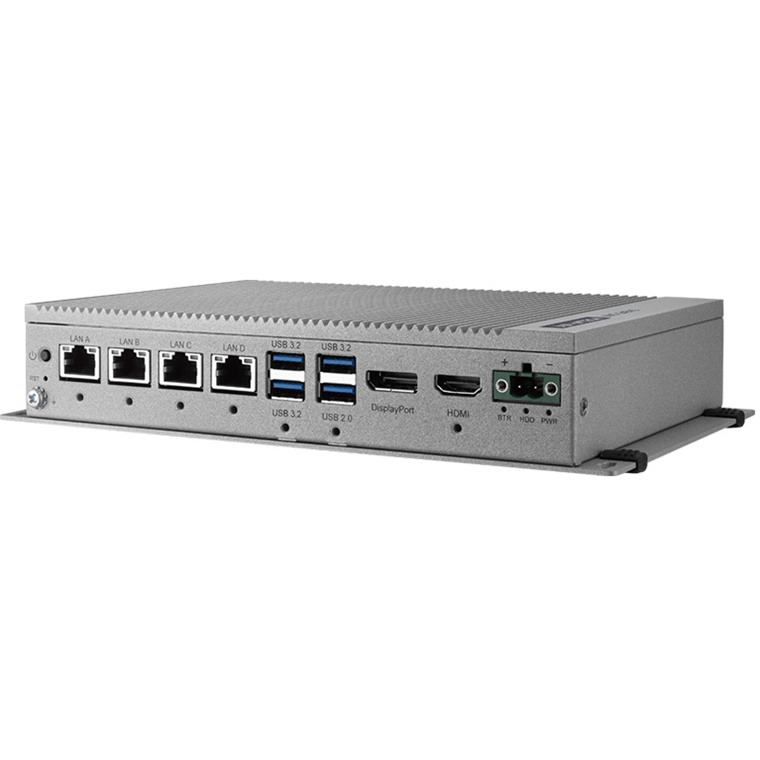

Advantech UNO-2484G-B531AE Modular Compact Embedded Box PC with 11th Gen Intel Core i5-1145G7E CPU

PB Tech price
PB Tech price
NZD $ 2,683 .34
$ 2,683 .34
$2,683.34  +GST
$2,683.34

Advantech UNO-2484G-B531AE Modular Compact Embedded Box PC with 11th Gen Intel Core i5-1145G7E CPU

  • Brand: Advantech
  • MPN: UNO-2484G-B531AE
  • Part #: IPCAVH221455
  • UPC:
PB Tech price
NZD $ 2,683 .34 $ 2,683 .34


Delivery: Order now and it ships on 24 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$2,683.34  +GST
$2,683.34

Features

Advantech UNO-2484G-B531AE Modular Compact Embedded Box PC with 11th Gen Intel  Core  i5-1145G7E CPU

Advantech's UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers vigorous computing performance and flexible scalability with various I/O ports to support IoT Connectivity. The UNO-2484G V2 features powerful computing capacity, optimized I/O port and expansion options supporting high speed and low latency wire/ wireless connectivity and NVME storage for IoT edge data transmission. 4K Ultra HD display ports provide high resolution and with an optional second expansion stack, users can have even more I/O options with Advantech's iDoor technology.

- Intel® Core™ 11th i5 Processor with 8GB DDR4 3200Mb/s memory
- 4x GbE, 3 x USB 3.2 Gen2, 1 x USB2.0, 1 x HDMI 1.4, 1 x DP 1.4a, 4 x RS232/422/485
- Optional 2nd stack supports up to 2 x iDoor extension for expending wireless connectivity, industrial fieldbus or more I/O
- Compact fanless design
- Ruggedized by zero cable and lockable I/O design
- Supports NVME storage with high data-transmission efficiency





Specifications

Hardware

CPU

Intel® Core™ i5-1145G7E 1.5GHz Quad core

Certification

CE, FCC, UL, CCC, BSMI

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux

Power Input

10~36 VDC

Storage

1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay

Memory

2 x SO-DIMM Memory with 8 GB DDR4 3200 MHz

Environment

Ingress Protection

IP40

Relative Humidity

10~95% RH (non-condensing)

Shock Protection

50 G, half sine

Storage Temperature

-40~85 °C (-40~185 °F)

Vibration Protection

3 Grms, random

I/O Interface

Serial Ports

4 x RS-232/422/485

Displays

1 x HDMI, 1 x DP

Power Connector

1 x 2-Pin Terminal Block

LAN Ports

3 x 10/100/1000/2500 Mbps, 1 x 10/100/1000 Mbps

USB Ports

3 x USB 3.2, 1 x USB 2.0

Mechanical

Dimension (W x H x D)

200 x 140 x 70 mm

Enclosure

Aluminum housing

Weight (Net)

1.4 kg ( 3.09 lb)

USB Vision

Connector

1 x USB 3.2 Type C

Manufacturer Part No:
UNO-2484G-B531AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221455
Product Model:
UNO-2484G-B531AE
Warranty: 12 months *
