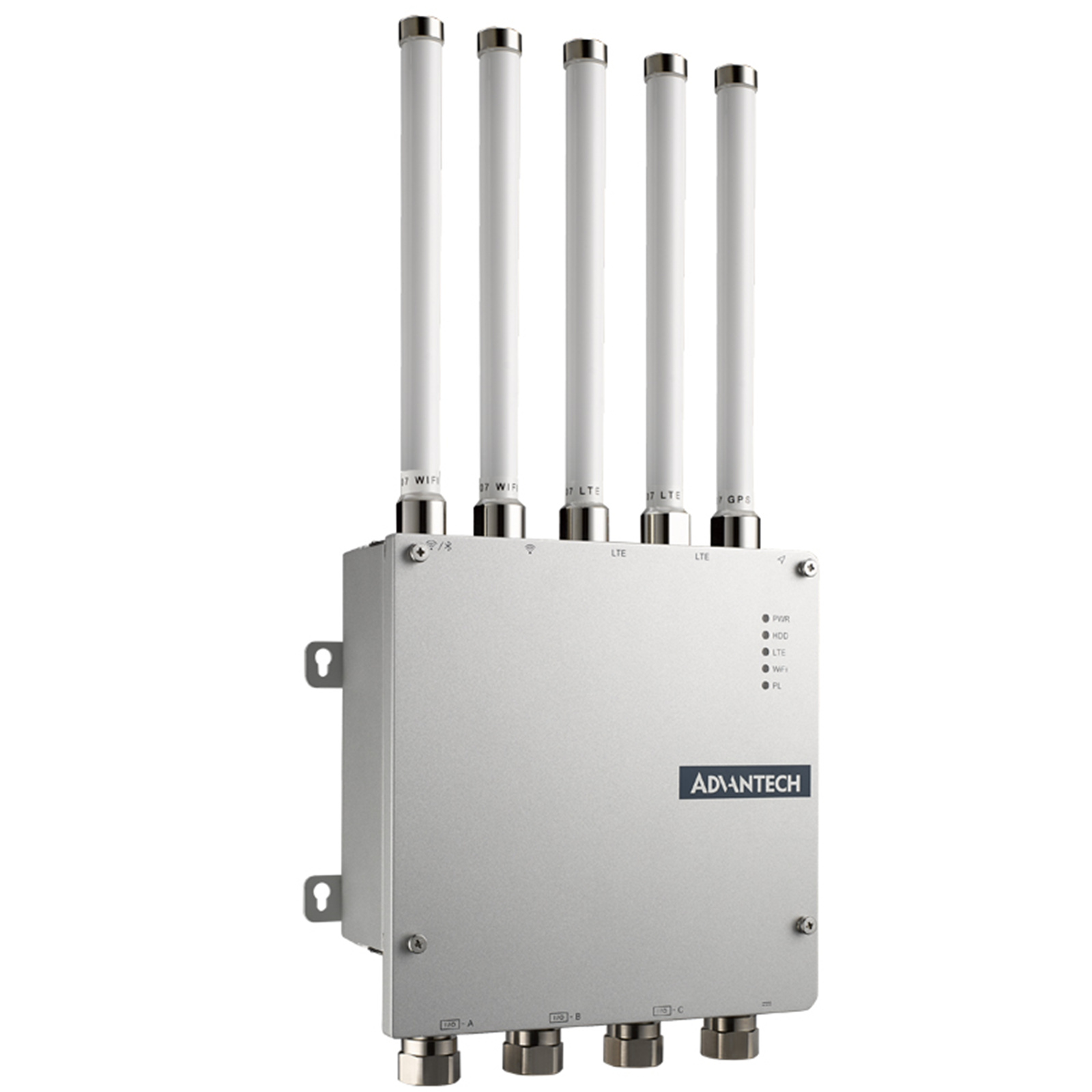

Advantech UNO-430-E1H IP66 Waterproof Outdoor Gateway with Intel Atom E3950 CPU, C1D2, ATEX, and IECEx Certification

PB Tech price

NZD $ 3,166 .66

$ 3,166 .66

Advantech UNO-430-E1H IP66 Waterproof Outdoor Gateway with Intel Atom E3950 CPU, C1D2, ATEX, and IECEx Certification

Brand: Advantech
MPN: UNO-430-E1H
Part #: IPCAVH221475
UPC:

PB Tech price

NZD $ 3,166 .66

In stock at Supplier

Delivery: Order now and it ships on 24 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-430-E1H
Part #: IPCAVH221475
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- Intel® Atom™ E3950 quad-core processor with 8GB of DDR3L memory

- IP66 rating for protection from water and dust ingress

- Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F)

- Built-in TPM 2.0 for hardware-based security

- Reserve M.2 3042/3052 B Key, M.2 2230 E Key for Wifi, LTE &amp

- GPS expansion

- Easy maintenance and installation with front door and cable gland design

- C1D2, ATEX, and IECEx certification for explosion tolerance

- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified

Specifications

General

Certification

CE, FCC
UL Listed Class I, Division 2, Groups A, B, C, D
ATEX/IECEx Zone 2, Zone 22
Ex ec IIC T4 Gc
Ex tc IIIC T90°C Dc

?Dimensions (W x D x H)

200 x 200 x 68 mm/7.87 x 7.87 x 2.67 in

?Form Factor

Square

?Enclosure

Aluminum housing

Mount Options

Wall mount

Weight (Net)

3.7 kg/8.16 lb

Power Requirement

10 ~ 36 VDC

Power Consumption

21W (typical), 27W (max.)

OS Support

Microsoft® Windows 10 Ent. LTSC, Advantech Linux (Ubuntu 18.04)

System Hardware

BIOS

AMI UEFI (64 Mbit)

Watchdog Timer

Programmable timer with 255 intervals (1 ~ 255 sec)

Hardware Security

TPM 2.0

Processor

Intel® Atom® E3950 quad core, 1.6GHz (up to 2GHz)

Memory

8GB of DDR3L, 1600MHz

Graphics Engine

Intel® HD Graphics 505

Ethernet

Intel® i210-IT GbE, IIEEE802.1AS, 802.3az

LED Indicators

Power, Storage, LTE, Wi-Fi, Programmable LED

Storage

1 x M.2 2242 B-key (SATA signal)

Communication

1 x M.2 (E-key)(PCIe/USB2.0 signal) socket for 2230
Wi-Fi/Bluetooth module expansion
1 x M.2 (B-key)(USB2.0/USB3.0 signal) socket for
3042/3052 LTE/5G module expansion
1 x socket (USB signal) for MultiTech Dragonfly™ card

Internal Maintenance

1 x USB 3.0, 1 x USB 2.0, 1 x DP

I/O Interface

Serial Ports

2 x RS-422/485, 50 ~115.2 kbps
(terminal block with 2500VDC isolation protection)
1 x RS-232, 50 ~115.2 kbps
(terminal block, console port)

LAN

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u,
1000 BASE-T Fast Ethernet

Power Connector

1 x 3-pin terminal block

Cable Gland

4 x 1/2" NPT conduit explosive atmosphere cable gland (cable size OD 6.55 ~ 14 mm/0.26 ~ 0.55 in)

Environment

?Operating Temperature

-40 ~ 70 °C/-40 ~ 158 °F @ 5 ~ 85% RH with 0.7 m/s airflow

?Storage Temperature

-40 ~ 85 °C/-40 ~ 185 °F

Relative Humidity

10 ~ 95% RH @ 40 °C/104 °F, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis

Ingress Protection

IP66 (IP65 for ATEX / IEC Ex)

Manufacturer Part No:

UNO-430-E1H

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221475

Product Model:

UNO-430-E1H

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
