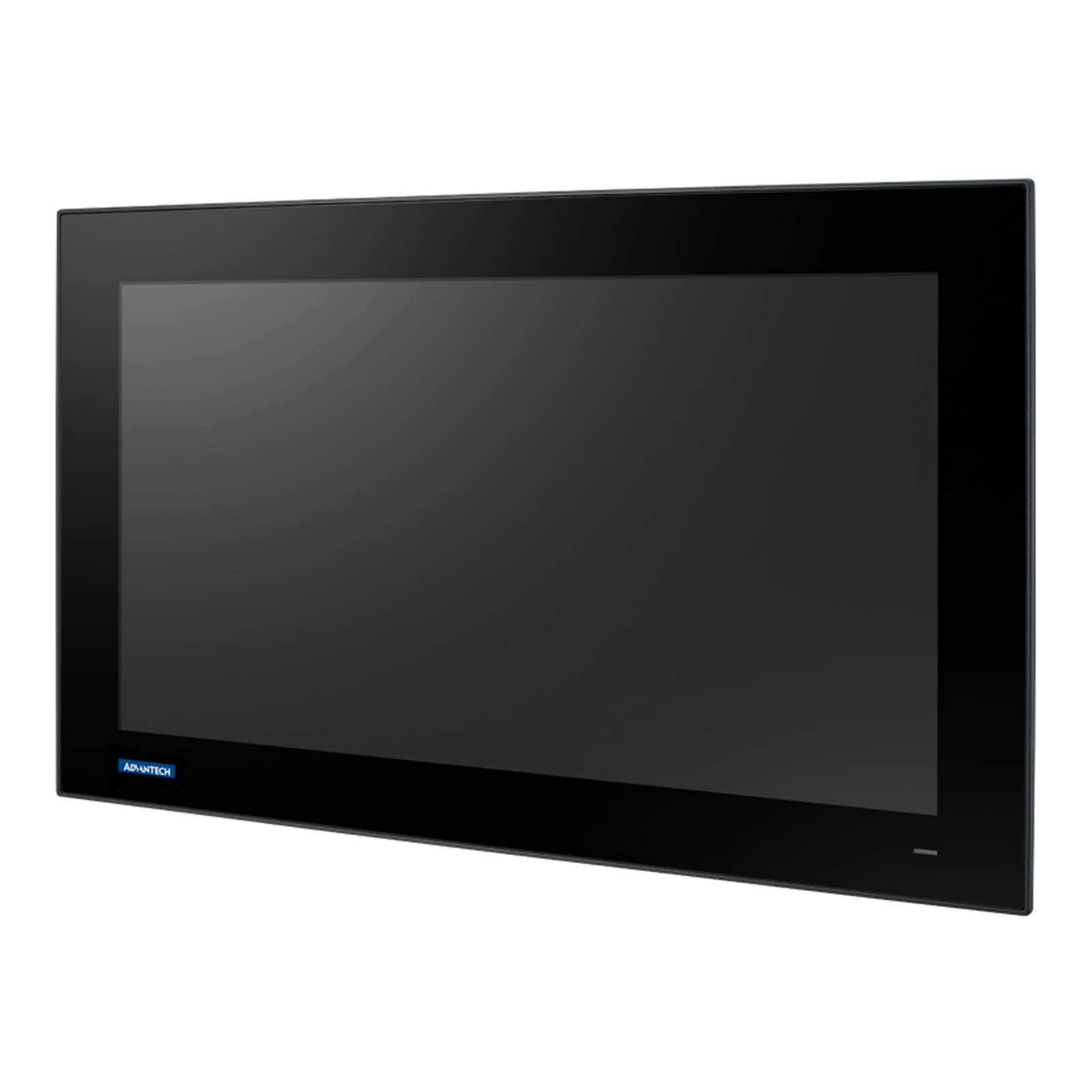

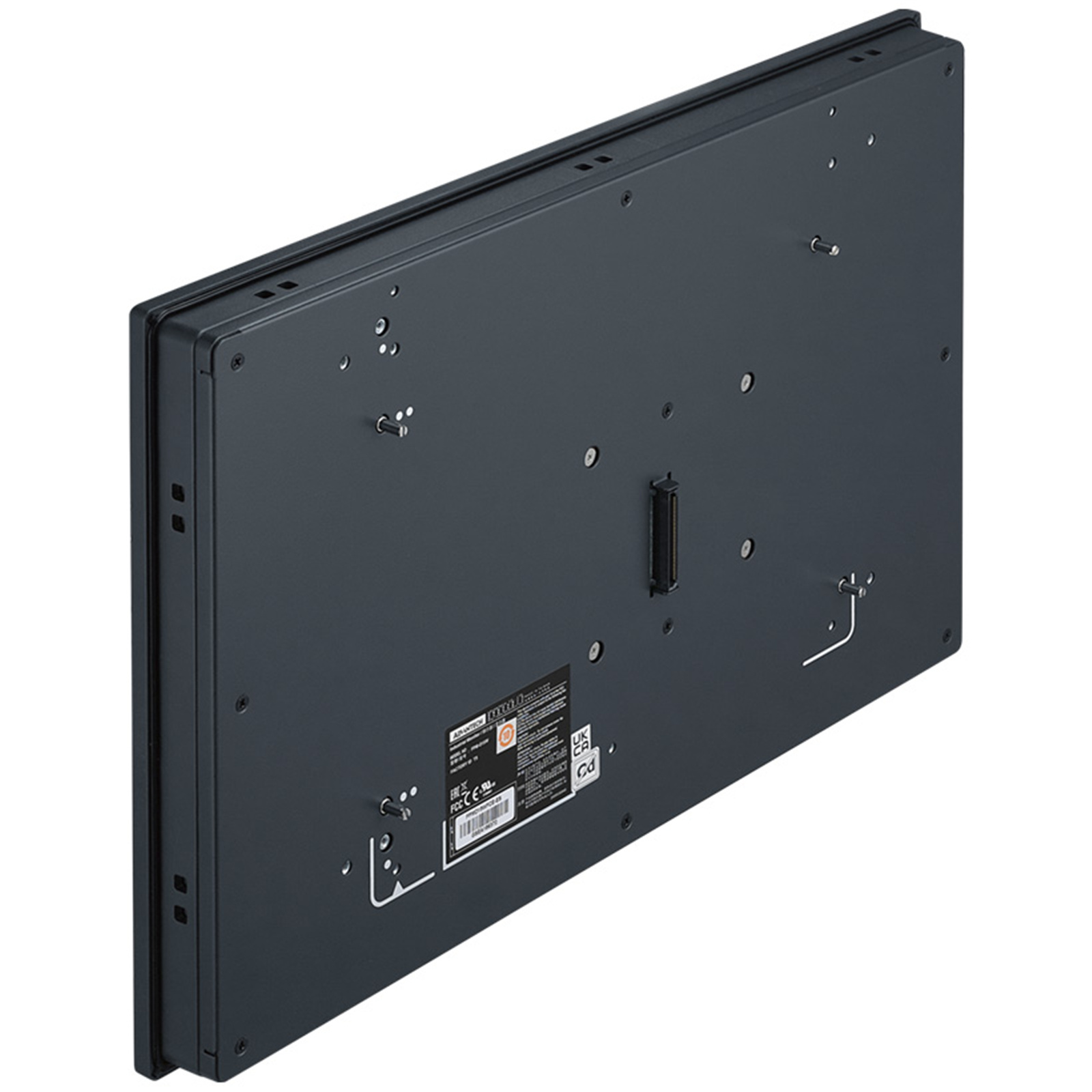

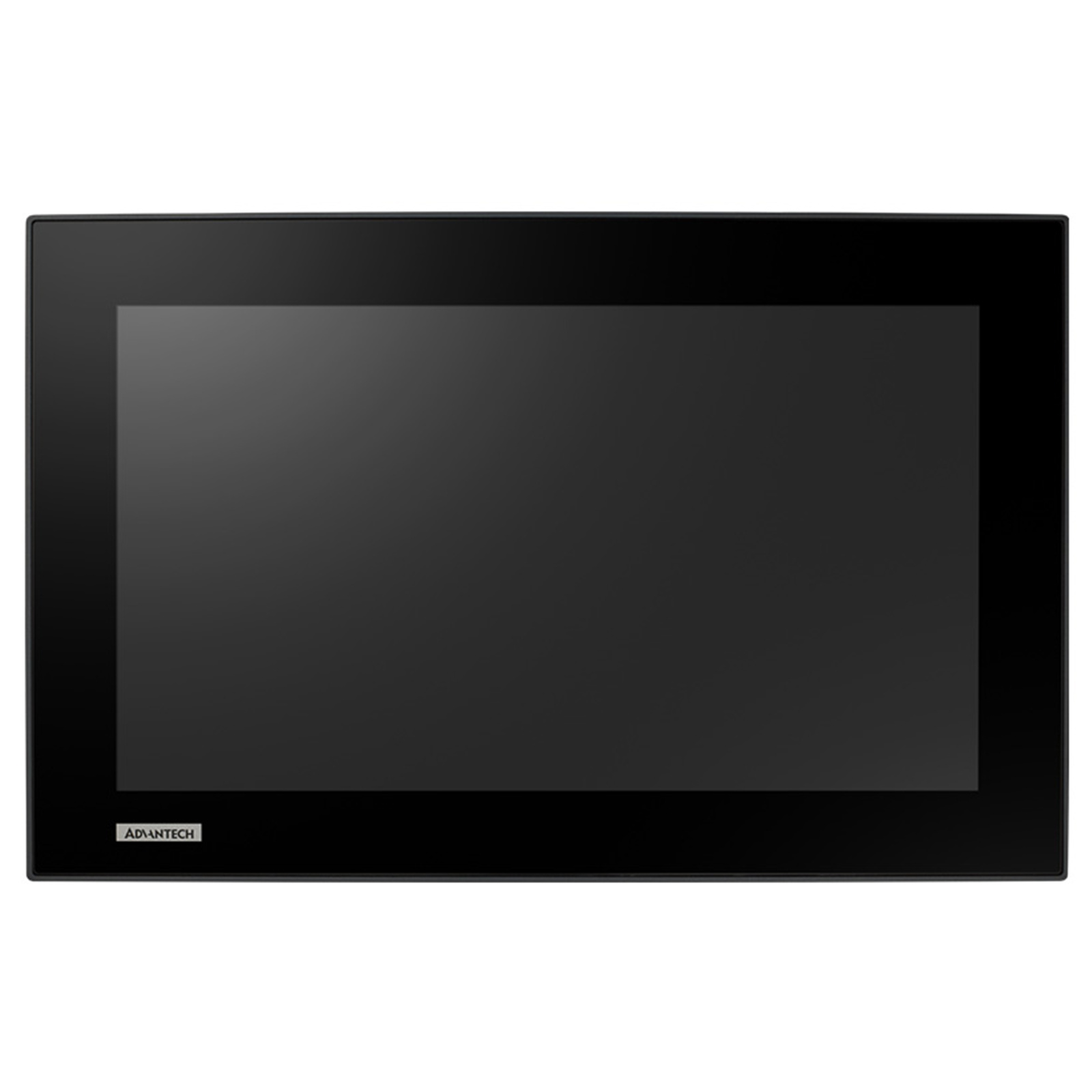

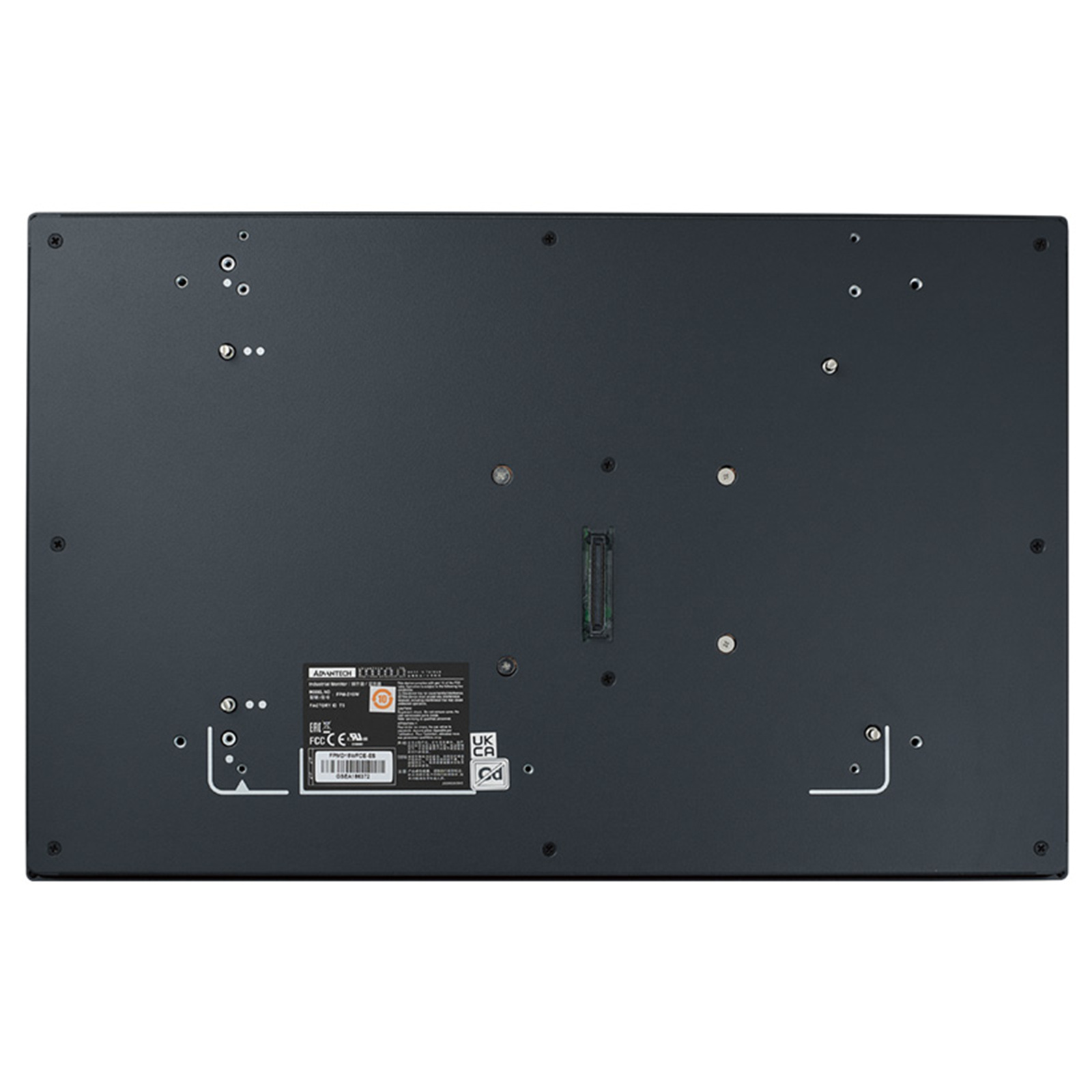

Advantech FPM-D15W-FCE 15.6" (FHD) 15.6" FHD (1920x1080) PCAP 450 nits modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
Advantech FPM-D15W-FCE 15.6" (FHD) 15.6" FHD (1920x1080) PCAP 450 nits modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- Brand: Advantech
- MPN: FPM-D15W-FCE
- Part #: IPCAVH500005
- UPC:
- Brand: Advantech
- MPN: FPM-D15W-FCE
- Part #: IPCAVH500005
- UPC:
COMBO DEALS: Buy Together and SAVE!







$1,119.02
$1,119.02


Advantech Power adaptor 96PSA-A150W24T2-4 A/D 100-240V 150W 24V W/PFC C14 CORD END 62368
$93.69
$93.69


Advantech TPC-B300-E20A Modular TPC - Computing Box Module with Atom X6425E (12W) 1x mPCIe, 1x M.2...
$1,244.17
$1,244.17


$2,257.67
$2,257.67
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech FPM-D15W-FCE 15.6" (FHD) 15.6" FHD (1920x1080) PCAP 450 nits modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- Brand: Advantech
- MPN: FPM-D15W-FCE
- Part #: IPCAVH500005

Product URL: https://www.pbtech.com/pacific/product/IPCAVH500005/Advantech-FPM-D15W-FCE-156-FHD-156-FHD-1920x1080-P
Features
15.6" (FHD) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- 450 cd/m² luminance with 1920 x 1080 (FHD) resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
Specifications
LCD Panel
Display Size
15.6"
Display Type
FHD TFT LED LCD
Aspect Ratio
16:9
Max. Resolution
1920 x 1080
Max. Color
16.7M
Luminance
450 cd/m²
Viewing Angle (H/V)
170°/170°
Backlight Life
50,000 hr
Contrast Ratio
800:1
Touchscreen
Type
PCAP
Light Transmission
Above 88%
Anti-Glare Treatment
Yes
Built-In iKey
N/A
Expandability
NFC Support on Front Panel
N/A
Environment
Operating Temperature
-20~60 °C (-4~140 °F)
Storage Temperature
-30~70 °C (-22~158 °F)
Ingress Protection
Font IP66
Housing Color
Panel Frame and Back Cover
Pantone 432C
