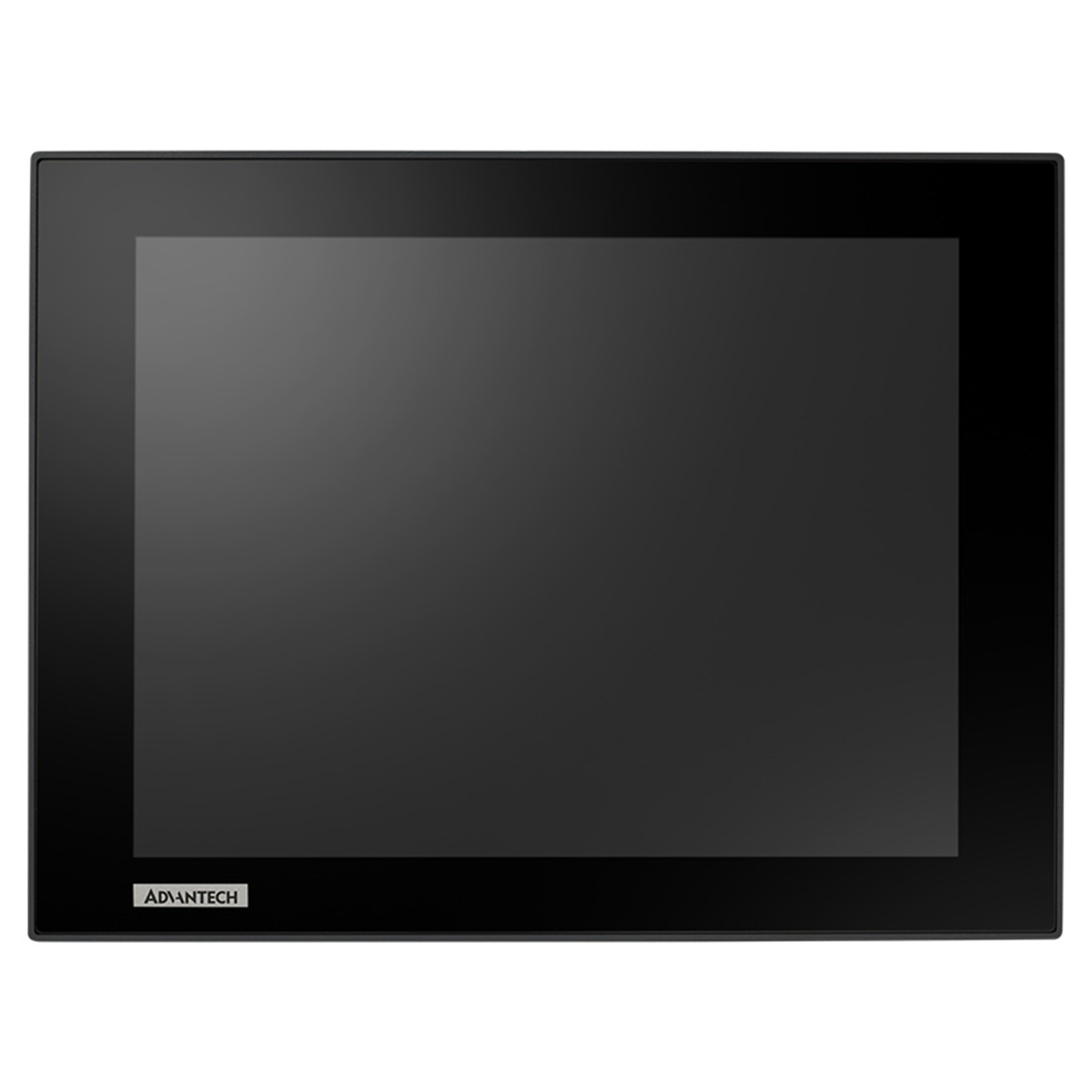

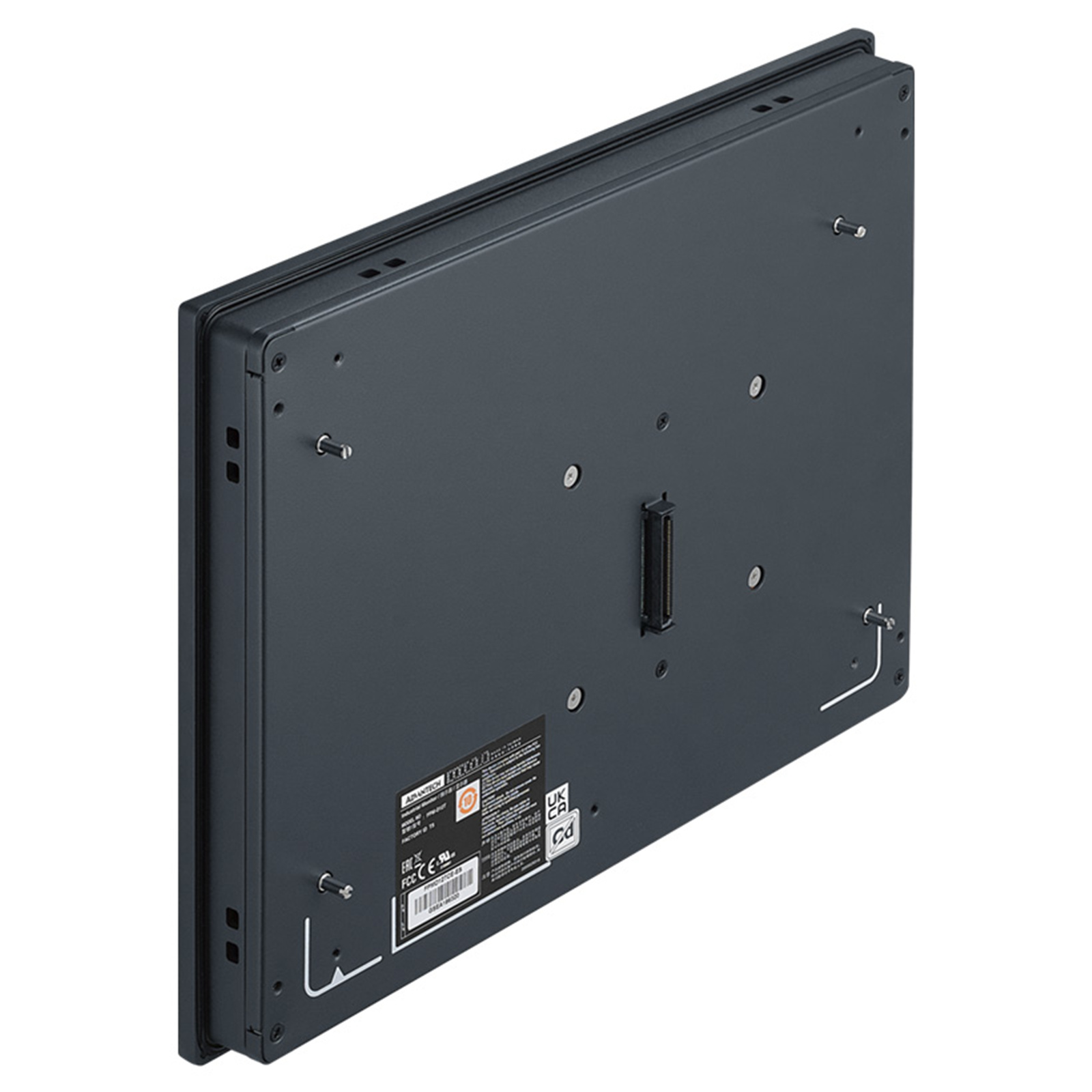

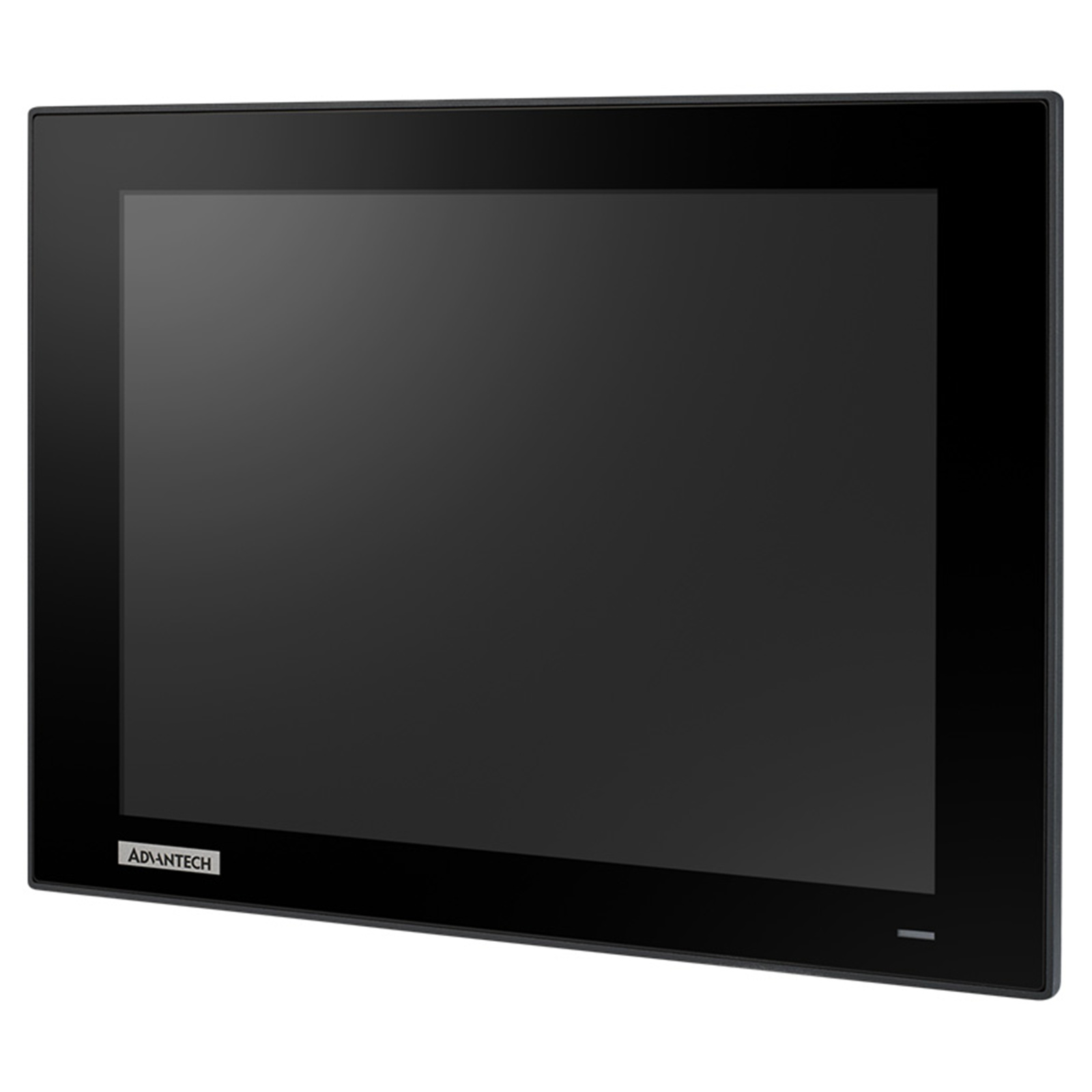

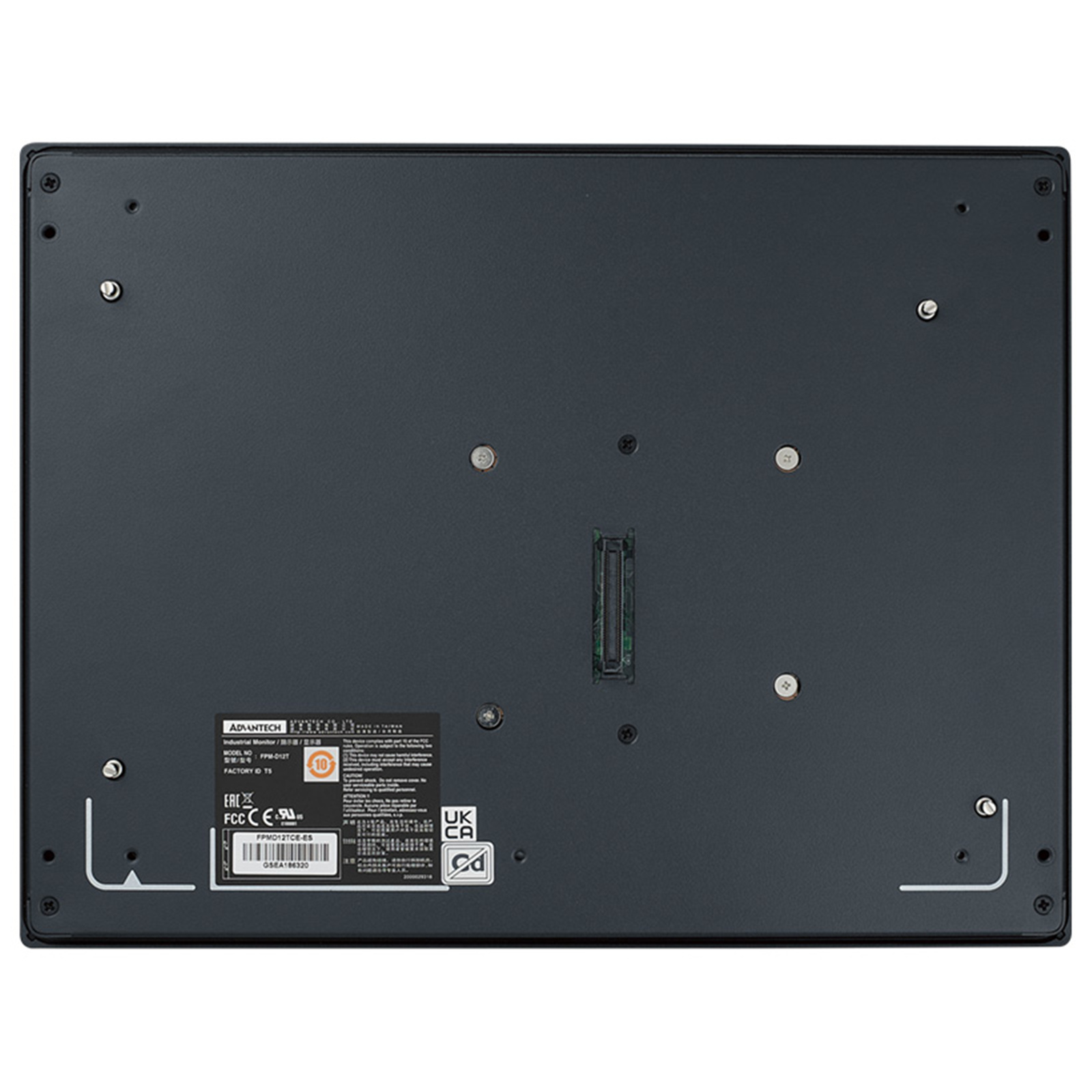

Advantech FPM-D12T-HE 12.1" (4:3) XGA (1024x768) PCAP 1000 nits High Brightness modular front display design compatible with TPC-B520, TPC-B300 models
- Brand: Advantech
- MPN: FPM-D12T-HE
- Part #: IPCAVH500008

Product URL: https://www.pbtech.com/pacific/product/IPCAVH500008/Advantech-FPM-D12T-HE-121-43-XGA-1024x768-PCAP-100
Features
12.1" (4:3) High Brightness modular front display design compatible with TPC-B520, TPC-B300 models
- Sunlight readable with 1000 cd/m² luminance with 1024 x 768 resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
Specifications
LCD Panel
Display Size
12"
Display Type
XGA TFT LED LCD
Aspect Ratio
4:3
Max. Resolution
1024 x 768
Max. Color
16.7M
Luminance
1000 cd/m²
Viewing Angle (H/V)
178°/174°
Backlight Life
50,000 hr
Contrast Ratio
1000:1
Touchscreen
Type
PCAP
Light Transmission
Above 88%
Anti-Glare Treatment
Yes
Built-In iKey
N/A
Expandability
NFC Support on Front Panel
N/A
Environment
Operating Temperature
-20~60 °C (-4~140 °F)
Storage Temperature
-30~70 °C (-22~158 °F)
Ingress Protection
Font IP66
Housing Color
Panel Frame and Back Cover
Pantone 432C
