Giada D77 Android12 RK3588 CPU, 8G Ram, 128G Storage, WIFI&BT 4xHDMI+1xHDMI -IN, Fanless, 8K Display
- Brand: Giada
- MPN: D77
- Part #: IPCGDA20003
Product URL: https://www.pbtech.com/pacific/product/IPCGDA20003/Giada-D77-Android12-RK3588-CPU-8G-Ram-128G-Storage
Features
Rockchip RK3588 Processor
The ultra-compact Android player is powered by Rockchip RK3588 processor, which integrates quad-core Cortex-A76 and quad-core Cortex-A55. The 8nm chip is a high-performance, low-power and cached application processor. Rockchip RK3588 integrated GPU, VPU and NPU The build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation and its computing power is up to 6TOPs.

4 Display Outputs
The player adopts ARM Mali-G610 MP4 GPU and has 4 HDMI display outputs. It supports hardware EDID and H.265/H.264/AV1/AVS2 etc. video decoder.

Supporting Android 12
The Android 12 player can be used in a variety of applications, such as digital signage, edge computing, kiosks and other AIoT solutions.

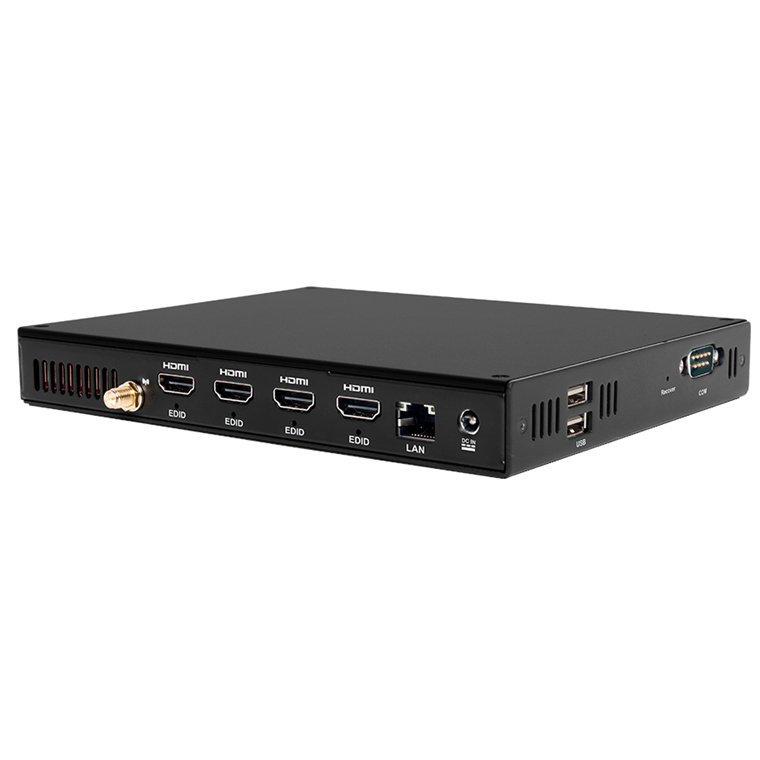

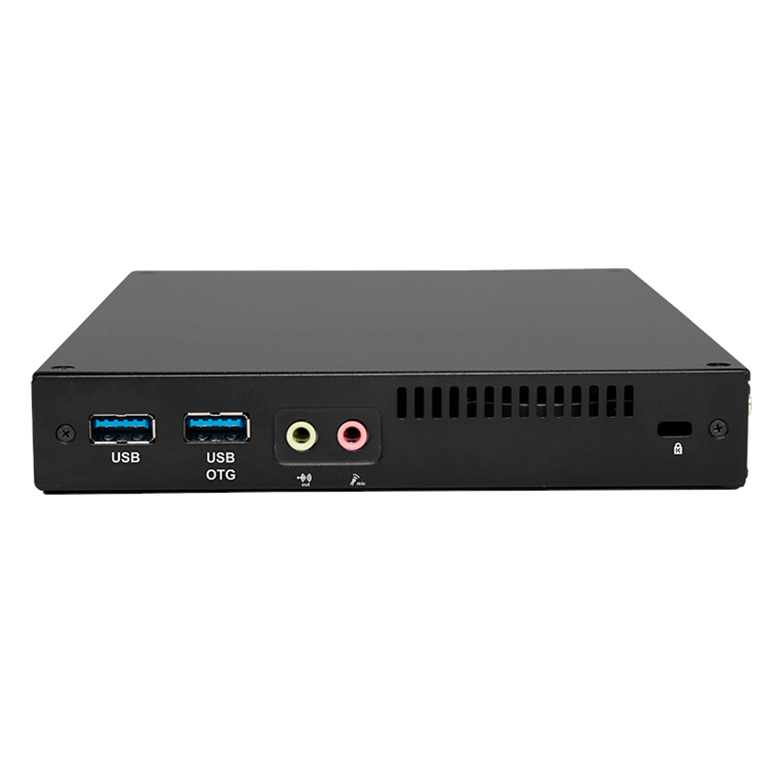

I/O port introduction

Specifications
CPU
CPU
Rockchip RK3588
Processing units
4 Cores Cortex-A76 & 4 Cores Cortex-A55
TDP
15 W
Memory
Size
8 GB
Type
Onboard 2-channel LPDDR4x
Storage
Onboard
128 GB, Onboard eMMC
1 x M-key M.2 (2280) for PCIe3.0 X4 SSD (NVMe)
Network
Network Controller
1 x Realtek RTL 8211E Gigabit Ethernet
Ethernet Interface
1 x GbE RJ45
Wi-Fi/BT
1 x E-keyM.2(2230) for Wi-Fi/BT module,
Supporting Wi-Fi 5 /6
Mobile Network
1 x B-key M.2(3042) for 3G /4G
1 x SIM Slot
Display
GPU
ARM Mali-G610 MP4 GPU
Graphic Engine
OpenGL ES 1.1/2.0/3.2, OpenCL 1.1/1.2/2.0, Vulkan 1.1/1.2
Multi-Media
H.265/H.264/AV1/AVS2 etc. video decoder, up to 8K@60fps
8K@30fps video encoders for H.264/H.265
Display Interface
3 x HDMI (Max. 4096 x 2160 @ 60 Hz)
1 x HDMI (Max. 1920 x 1080 @ 60Hz)
I/O interface
USB
1 x USB3.2 Gen1 (OTG), 1 x USB3.2 Gen1
2 x USB2.0
Serial Port
1 x RS232
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Button
1 x Power on, 1 x Recovery
Antenna
1 x Connector for Wi-Fi/BT
1 x Connector for 3G/4G (Reserved)
System
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Power Requirement
DC-IN, 12 V/2.08 A
Dimensions
189.6mm x 148.3mm x 26mm (7.46" x 5.83" x 1.02")
Construction
Metal, Black
Operating System
Android 12
Operating Temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B
