Giada VM27 Celeron N6210, 4G Onboard Ram, 64G Storage eMMC Windows/Linux, 1xDP+1xHDMI, Fanless, 4K Display
Giada VM27 Celeron N6210, 4G Onboard Ram, 64G Storage eMMC Windows/Linux, 1xDP+1xHDMI, Fanless, 4K Display
- Brand: Giada
- MPN: VM27
- Part #: IPCGDA20006
- UPC:
- Brand: Giada
- MPN: VM27
- Part #: IPCGDA20006
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Giada VM27 Celeron N6210, 4G Onboard Ram, 64G Storage eMMC Windows/Linux, 1xDP+1xHDMI, Fanless, 4K Display
- Brand: Giada
- MPN: VM27
- Part #: IPCGDA20006

Product URL: https://www.pbtech.com/pacific/product/IPCGDA20006/Giada-VM27-Celeron-N6210-4G-Onboard-Ram-64G-Storag
Features
Long Life Cycle and Fanless Intel Elkhart Lake Inside Support 4K Display
Intel® Elkhart Lake Processors
Long Life Cycle Product
VM27 is based on Intel® IOTG roadmap with 7+ years lifespan. It supports Pentium® quad-core N6415 and Celeron® dual-core N6210 processors. The onboard dual-channel LPDDR4 and eMMC5.1 storage ensure its stable operating in harsh environments.
Dual Display Outputs
Supporting 4K Video Playback
The player adopts Intel® UHD Graphics for 10th Gen Intel® Processors and it has up to 2x performance improvement in graphics over previous generation. It supports vivid dual 1080p video or one 4K video decoding. Its HDMI 2.0a and DisplayPort 1.2 ports can also support resolutions up to 4096 x 2160 @ 60Hz.
Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada? device applicable in mission critical applications.

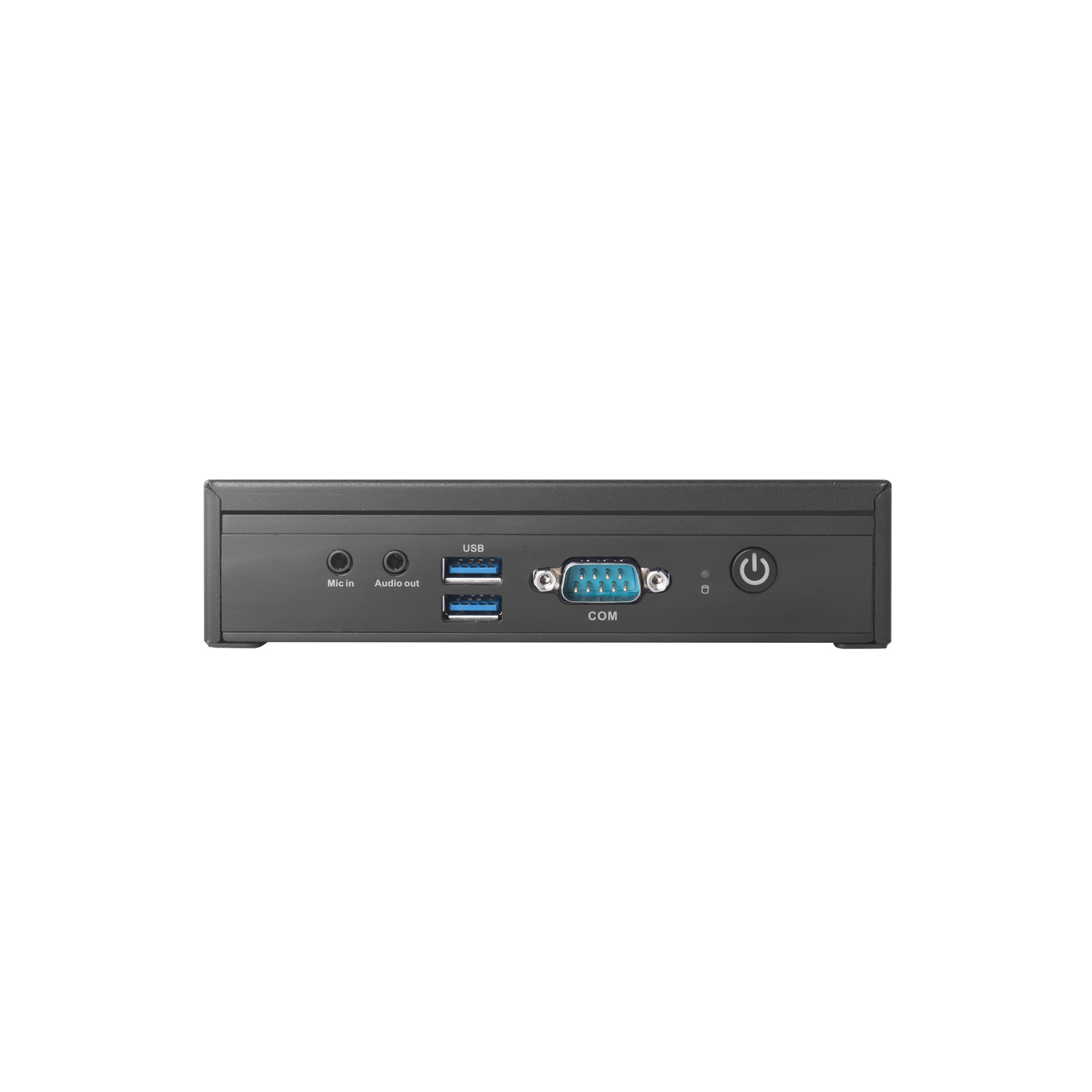

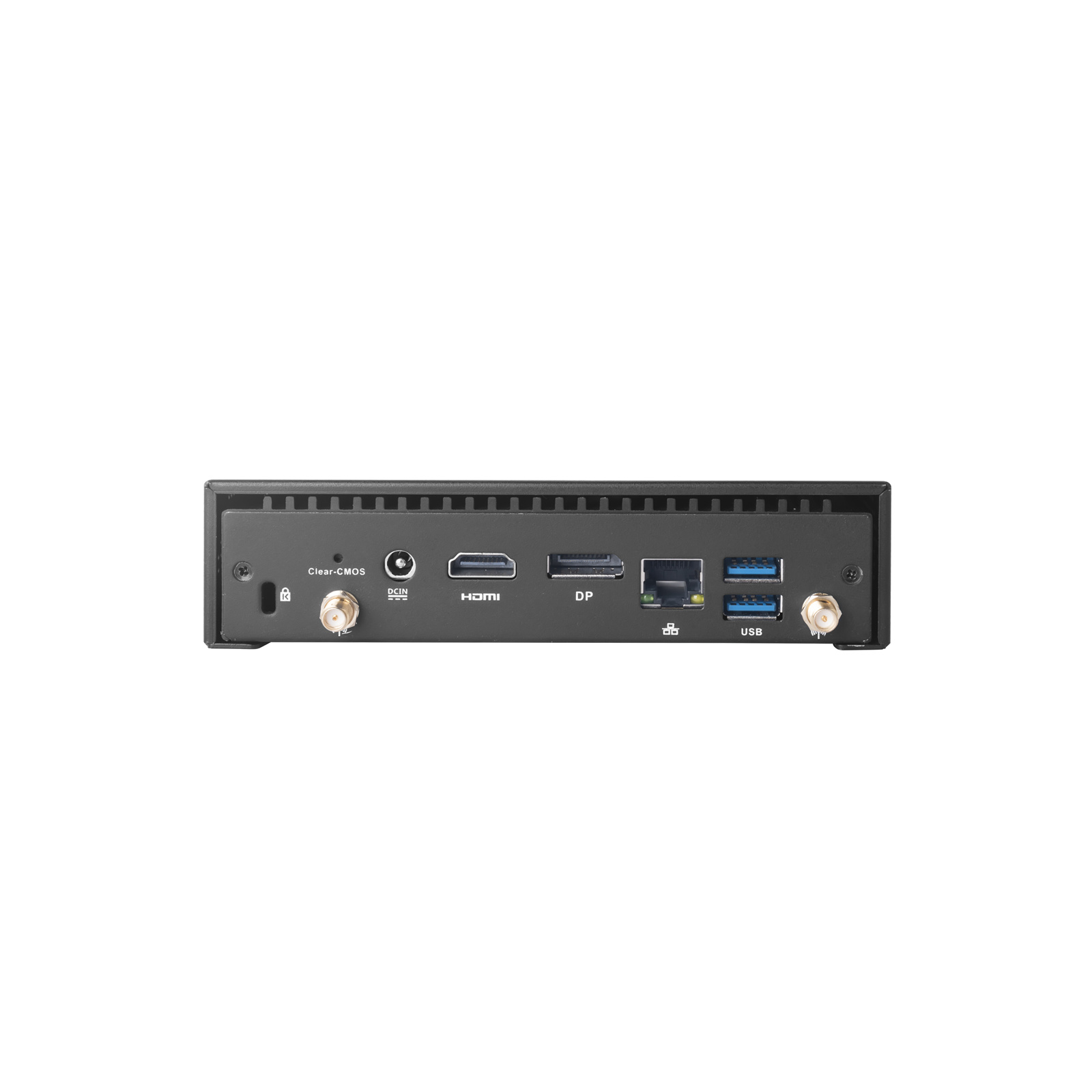

I/O port introduction
Specifications
Processor
CPU
Intel® Celeron® N6210 processor
Frequency
2.60 GHz/3.00 GHz
Chipset
SoC
Processing Units
2 Cores/4 Cores
TDP
6.5 W
Memory
Size
4 GB (Optional: 8 GB)
Type
Onboard DDR4-2666 MHz
Storage
Socket1
1 x Full-size Mini-PCIe for MSATA
Onboard
64 GB, Onboard eMMC5.1 (Optional: 32 GB)
Display
GPU
Intel® UHD Graphics
Graphic Engine
DirectX 12.1, OpenGL 3.0, OpenCL 1.1, Intel® Quick Sync Video
Display Interface
1 x DP (Max.4096 x 2160 @60 Hz), 1 x HDMI (Max.4096 x 2160 @60 Hz)
Network
Network controller
1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet interface
1 x RJ45
Wi-Fi/BT
1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
Mobile network
NA
I/O interface
USB
4 x USB3.2 Gen2 (10 Gbps)
Serial port
1 x RS232
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Button
1 x Power on, 1 x CLR-CMOS
Antenna
2 x Connector for Wi-Fi/BT
System
TPM
FTPM
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day
Power Requirement
DC-IN, 19 V/2.37 A
Dimensions
154mm x 125.5 mm x 40mm (6.06" x 4.94" x 1.57")
Construction
Metal, Black
Fanless
Yes
Operating system
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit) /ChromeOS Flex
Operating temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B
