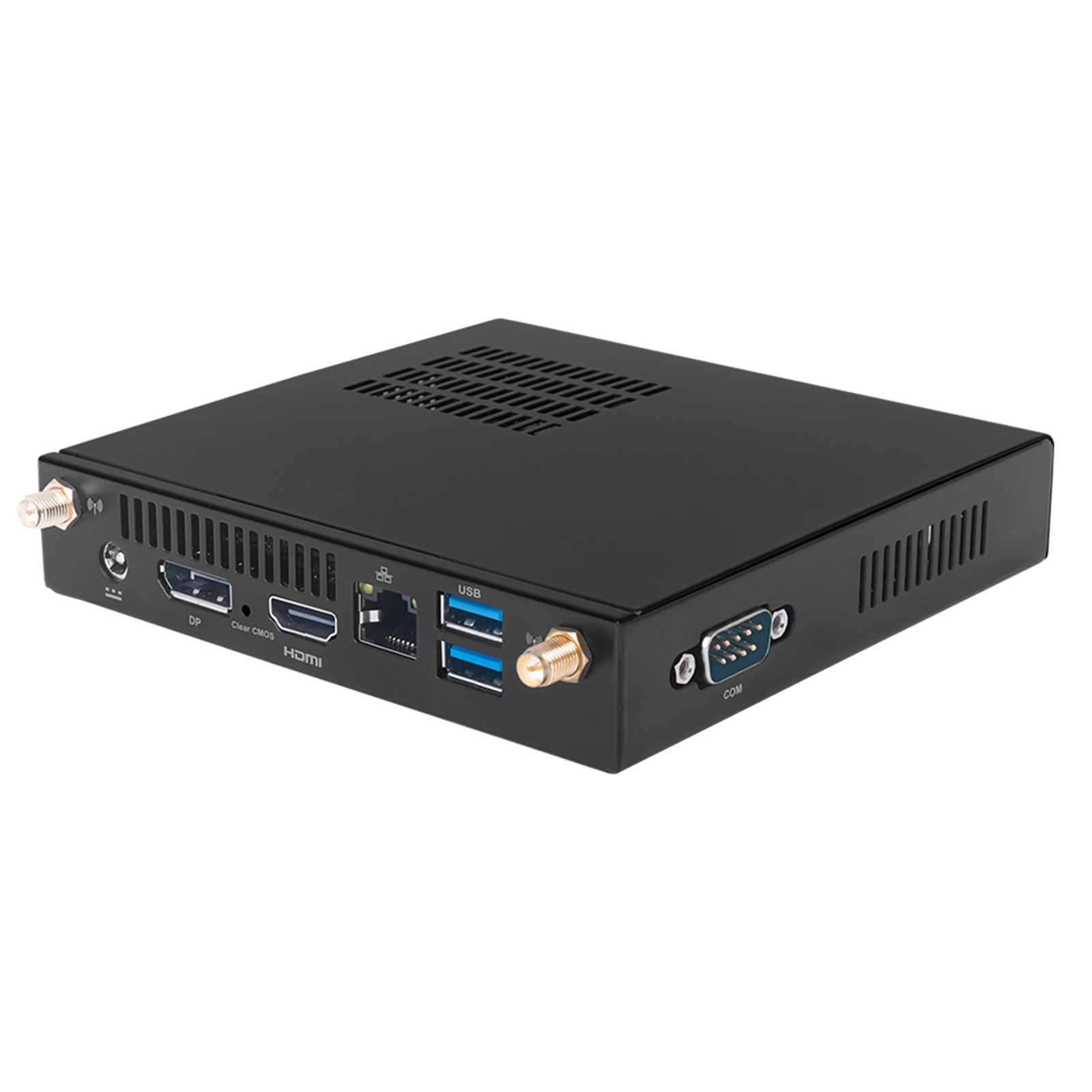

Giada DK310 Celeron J6412 CPU, 4G Onboard, Barebone 1xDP+1xHDMI, 4K Display, Windows/Linux,
- Brand: Giada
- MPN: DK310
- Part #: IPCGDA20008

Product URL: https://www.pbtech.com/pacific/product/IPCGDA20008/Giada-DK310-Celeron-J6412-CPU-4G-Onboard-Barebone
Features
Long Product Life Cycle
The ultra-slim player is equipped with Elkhart Lake embedded processors, including the low TDP (10W) Celeron J6412 and Pentium J6426. The Elkhart Lake platform has up to 1.7x improvement in single-thread performance and up to 1.5x improvement in multi-thread performance generation over generation.
Supporting Dual 4K Video Playback
The player adopts Intel® UHD Graphics for 10th Gen Intel® Processors and has up to 2X performance improvement in graphics over previous generation. It supports vivid dual 1080p or dual UHD videos playback via HDMI 2.0a (4096 x 2160 @ 60Hz) and DisplayPort 1.2 (4096 x 2160 @ 60Hz) ports.
Specifications
Processor
CPU
Intel® Celeron® J6412 processor
Frequency
2.60 GHz/3.00 GHz
Chipset
SoC
Processing Units
4 Cores/4 Cores
TDP
10 W/10 W
Memory
Size
4 GB (Optional: 8 GB)
Type
Onboard DDR4-2666 MHz
Storage
Socket1
1 x Full-size Mini-PCIe for MSATA
Onboard
Optional: Onboard eMMC5.1
Display
GPU
Intel® UHD Graphics
Graphic Engine
DirectX, OpenGL, OpenCL, Intel® Quick Sync Video
Display Interface
1 x DP (Max.3840 x 2160 @60 Hz), 1 x HDMI (Max.3840 x 2160 @60 Hz)
Network
Network controller
1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet interface
1 x RJ45
Wi-Fi/BT
1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
Mobile network
NA
I/O interface
USB
4 x USB3.2 Gen2 (10 Gbps)
Serial port
1 x RS232
Audio
1 x 2-IN-1 headset (MIC-IN & AUDIO-OUT)
Button
1 x Power on, 1 x CLR-CMOS
Antenna
2 x Connector for Wi-Fi/BT
System
TPM
Optional: TPM2.0
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day
Power Requirement
DC-IN, 19 V/2.37 A
Dimensions
130 mm x 129.3 mm x 25.4 mm (5.12" x 5.09" x 1")
Construction
Metal, Black
Fanless
No
Operating system
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B
