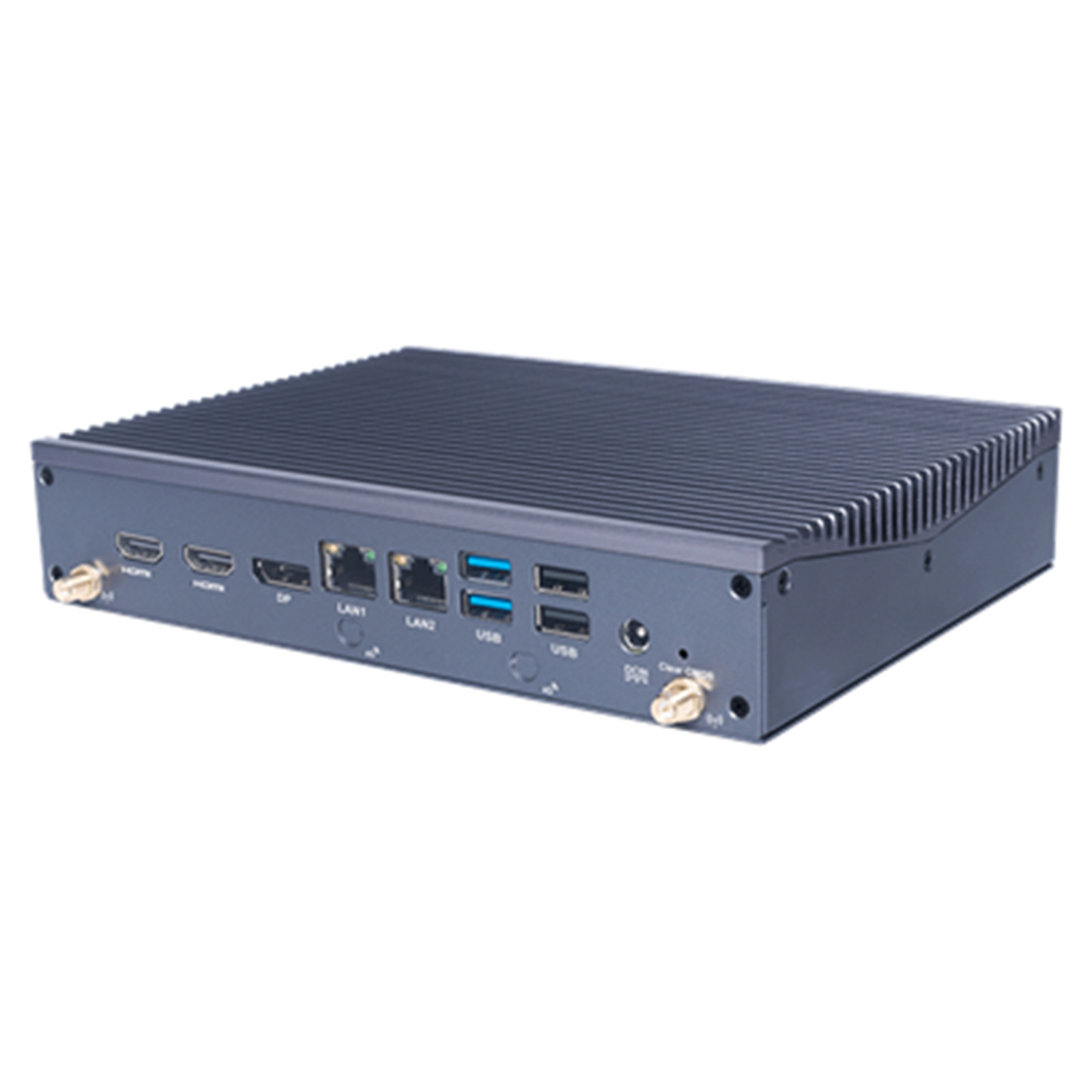

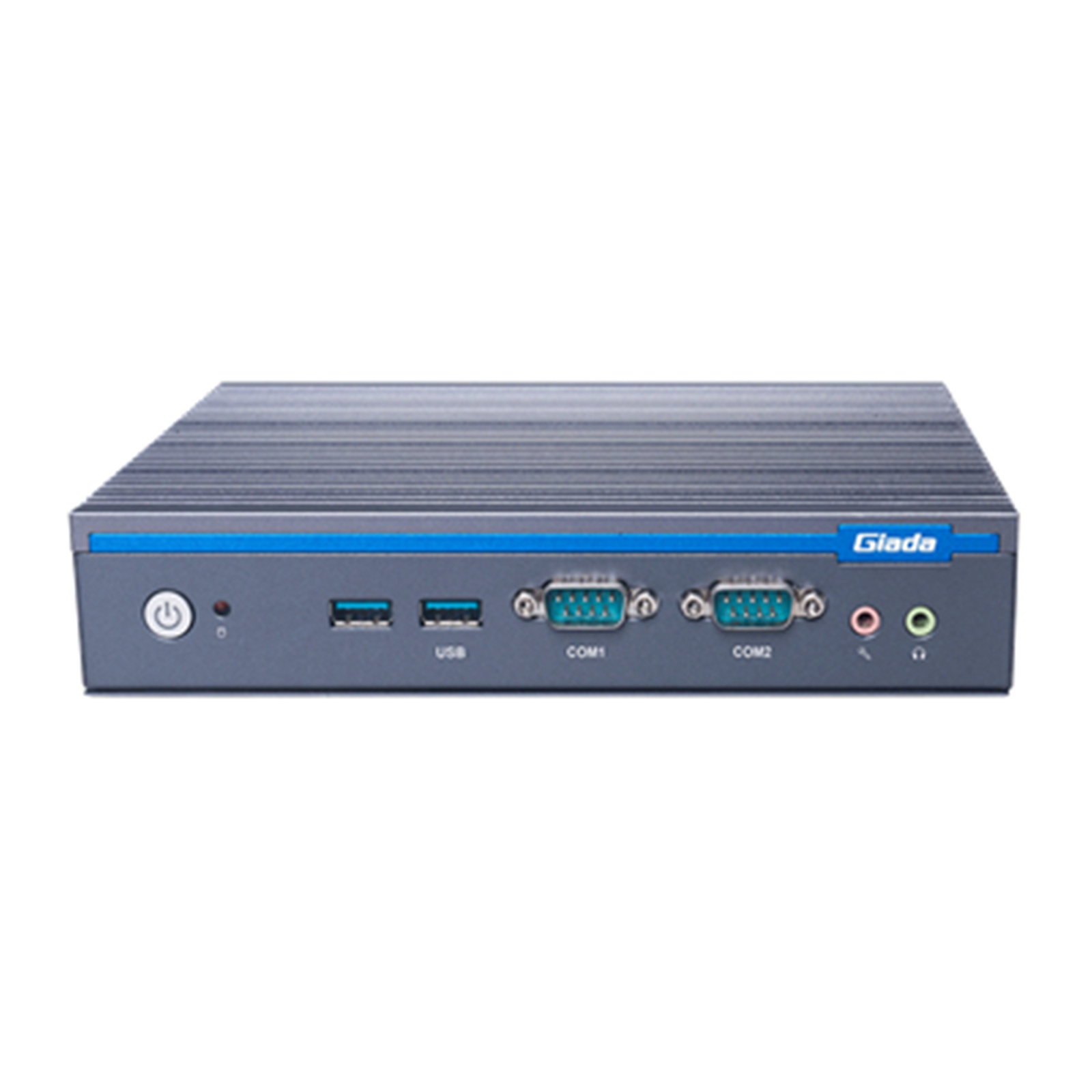

Giada AE613-i3 Core i3-1315U CPU, Barebone vPro Technology, Windows/Linux, -20 C- 60 C, 1xDP+2xHDMI, Fanless
Out of stock
Giada AE613-i3 Core i3-1315U CPU, Barebone vPro Technology, Windows/Linux, -20 C- 60 C, 1xDP+2xHDMI, Fanless
- Brand: Giada
- MPN: AE613-i3
- Part #: IPCGDA20013
- UPC:
- Brand: Giada
- MPN: AE613-i3
- Part #: IPCGDA20013
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Giada AE613-i3 Core i3-1315U CPU, Barebone vPro Technology, Windows/Linux, -20 C- 60 C, 1xDP+2xHDMI, Fanless
- Brand: Giada
- MPN: AE613-i3
- Part #: IPCGDA20013

Product URL: https://www.pbtech.com/pacific/product/IPCGDA20013/Giada-AE613-i3-Core-i3-1315U-CPU-Barebone-vPro-Tec
Features


Supporting 8K




Specifications
CPU
CPU
Intel® Core™ i3-1315U processor
Efficient Frequency
3.30 GHz/3.40 GHz
Performance Frequency
4.50 GHz/4.60 GHz
Chipset
SoC
Processing Units
6 Cores /10 Cores
Configurable TDP-up
15 W /15 W
Memory
Size
Up to 64 GB
Type
2 x SO-DIMM DDR4-3200 MHz
Storage
Socket 1
1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
Display
GPU
Intel® UHD Graphics (Core™ Core i3)
Intel® IRIS® Xe Graphics (Core™ Core i5)
Graphic Engine
DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
Display Interface
1 x DP (Max.7680 x 4320 @60 Hz)
2 x HDMI (Max.4096 x 2304 @60 Hz)
Network
Network Controller
1 x Intel i219-LM Gigabit Ethernet
1 x Intel i210-IT Gigabit Ethernet
Ethernet Interface
2 x 1 GbE RJ45
Wi-Fi/BT
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
Mobile Network
1 x B-Key M.2 (3042) for 3G/4G,
1 x SIM Slot
I/O interface
USB
4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
Serial Port
1 x RS232, 1 x RS232/422/485
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Button
1 x Power on, 1 x CLR-CMOS
Antenna
2 x Connector for Wi-Fi/BT
2 x Connector for 3G/4G (Reserved)
System
TPM
Optional: TPM2.0
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Power Requirement
DC-IN, 12 ~ 24V, 90W
Dimensions
200 mm x 150 mm x 50 mm (7.87" x 5.90" x 1.97")
Construction
Metal, Grey
Operating System
Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
-20°C ~60°C (-4°F~140°F) @0.7m/s Air Flow
Humidity
10% ~ 90% @45°C (non-condensing)
Storage Temperature
-40°~80°C (-40°F~176°F) not include the package
Certifications
CE, FCC Class B, UKCA
