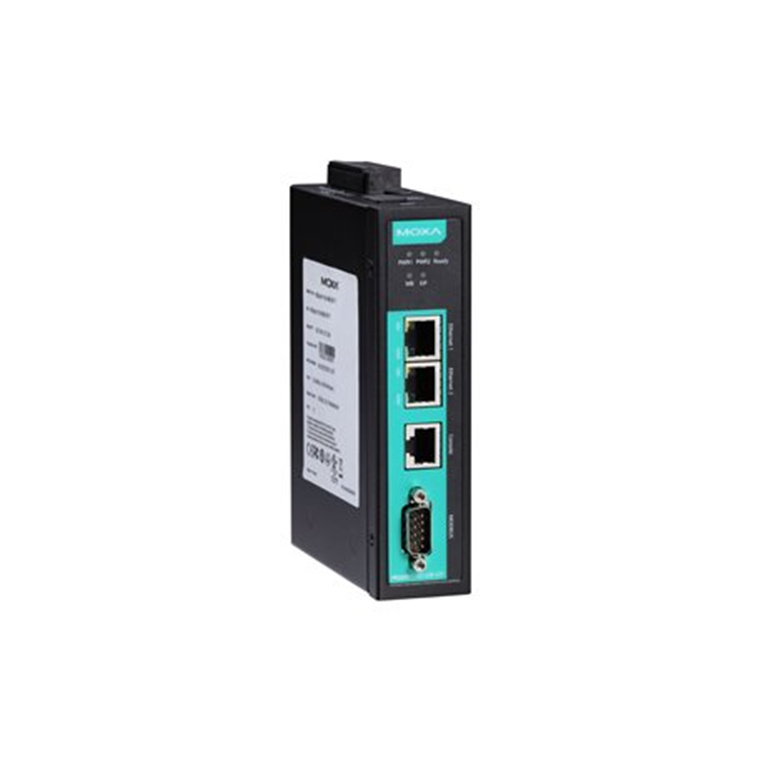

MOXA MGate 5105-MB-EIP 1-port MQTT-supported Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, 0 to 60°C operating temperature
- Brand: MOXA
- MPN: MGate 5105-MB-EIP
- Part #: IPCMXA51050001
Product URL: https://www.pbtech.com/pacific/product/IPCMXA51050001/MOXA-MGate-5105-MB-EIP-1-port-MQTT-supported-Modbu
Features
Configuration Backup via microSD Card
The MGate 5105-MB-EIP is equipped with a microSD card slot. A microSD card can be used to back up both the system configuration and system log, and can be used to conveniently copy the same configuration to several MGate 5105-MP-EIP units. The configuration file stored in the microSD card will be copied to the MGate itself when the system is rebooted.
Effortless Configuration and Troubleshooting via Web Console
The MGate 5105-MB-EIP also provides a web console to make configuration easy without having to install an extra utility. Simply log in as an administrator to access all settings, or as a general user with read-only permission. Besides configuring basic protocol settings, you can use the web console to monitor I/O data values and transfers. In particular, I/O Data Mapping shows data addresses for both protocols in the gateway's memory, and I/O Data View allows you to track data values for online nodes. Moreover, diagnostics and communication analysis for each protocol can also provide helpful information for troubleshooting.
Redundant Power Inputs
The MGate 5105-MB-EIP has dual power inputs for greater reliability. The power inputs allow simultaneous connection to 2 live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus-to-EtherNet/IP gateways ideal for demanding industrial applications.
Specifications
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
2, Auto MDI/MDI-X connection
Magnetic Isolation Protecttion
1.5 kV (built-in)
Ethernet Software Features
Industrial Protocols
Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Scanner, EtherNet/IP Adapter, MQTT
Configuration Options
Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console
Management
ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIB
RFC1213, RFC1317
Time Management
NTP Client
Security Functions
Authentication
Local database
Encryption
HTTPS, AES-128, AES-256, SHA-256
Security Protocols
SNMPv3
SNMPv2c Trap
HTTPS (TLS 1.3)
Serial Interface
Console Port
RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
No. of Ports
1
Connector
DB9 male
Serial Standards
RS-232/422/485
Baudrate
50 bps to 921.6 kbps
Data Bits
7, 8
Parity
None, Even, Odd, Space, Mark
Stop Bits
1, 2
Flow Control
RTS Toggle (RS-232 only), RTS/CTS
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
120 ohms
Isolation
2 kV (built-in)
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
Configuration Options
Serial Console
Industrial Protocols
Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
Modbus RTU/ASCII
Mode
Master, Slave
Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
100
Input Data Size
2048 bytes
Output Data Size
2048 bytes
Modbus TCP
Mode
Client (Master), Server (Slave)
Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections
16
Max. No. of Server Connections
32
Max. No. of Commands
100
Input Data Size
2048 bytes
Output Data Size
2048 bytes
EtherNet/IP
Mode
Scanner, Adapter
CIP Objects Supported
Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port
Max. No. of Scanner Connections
16 (for read-only), 1 (for read/write)
Max. No. of Adapter Connections
100
Input Data Size
496 bytes
Output Data Size
496 bytes
MQTT
Mode
Publisher/Subscriber of MQTT, Azure IoT Hub Device, Alibaba IoT Platform Device
Version Supported
v3.1.1
QoS Level
QoS 0,1,2
Secure Transmission
TLS (1.0, 1.1, 1.2) encryption with user's root CA, Client certificate, Private key
Max. No. of Data Tag
300 data tags
Max. No. of Message
20 messages
MQTT General Features
Keep Alive, Retain Message, Last Will Message, Clean Session
Memory
microSD Slot
Up to 32 GB (SD 2.0 compatible; Data buffering up to 2 GB)
Power Parameters
Input Voltage
12 to 48 VDC
Input Current
455 mA @ 12 VDC
Power Connector
Screw-fastened Euroblock terminal
