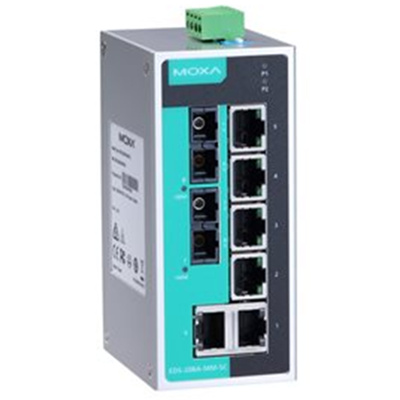

MOXA Industrial switch EDS-208A-SS-SC 8-port unmanaged Ethernet switches, -10 to 60°C operating temperature
MOXA Industrial switch EDS-208A-SS-SC 8-port unmanaged Ethernet switches, -10 to 60°C operating temperature
- Brand: MOXA
- MPN: EDS-208A-SS-SC
- Part #: IPCMXAEDS208014
- UPC:
- Brand: MOXA
- MPN: EDS-208A-SS-SC
- Part #: IPCMXAEDS208014
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Appliances





MOXA Industrial switch EDS-208A-SS-SC 8-port unmanaged Ethernet switches, -10 to 60°C operating temperature
- Brand: MOXA
- MPN: EDS-208A-SS-SC
- Part #: IPCMXAEDS208014

Product URL: https://www.pbtech.com/pacific/product/IPCMXAEDS208014/MOXA-Industrial-switch-EDS-208A-SS-SC-8-port-unman
Features
Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX single-mode ports with SC connectors, -10 to 60°C operating temperature
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/
- ATEX Zone 2), transportation (NEMA TS2/EN 50121-4/e-Mark), and maritime environments (DNV/GL/LR/ABS/NK)
- -40 to 75°C operating temperature range (-T models)
Data sheet Download Here: https://www.moxa.com/getmedia/2626cb10-a124-4937-a7bd-07ca2103587f/moxa-eds-208a-series-datasheet-v1.0.pdf
Specifications
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
EDS-208A/208A-T: 8
EDS-208A-M-SC/M-ST/S-SC Series: 7
EDS-208A-MM-SC/MM-ST/SS-SC Series: 6
All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)
EDS-208A-M-SC Series: 1
EDS-208A-MM-SC Series: 2
100BaseFX Ports (multi-mode ST connector)
EDS-208A-M-ST Series: 1
EDS-208A-MM-ST Series: 2
100BaseFX Ports (single-mode SC connector)
EDS-208A-S-SC Series: 1
EDS-208A-SS-SC Series: 2
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
