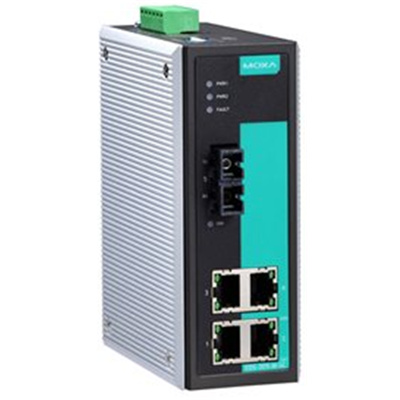

MOXA Industrial switch EDS-305-M-SC 5 port Unmanaged switches with 4x10/100BaseT(X) ports, 1x100BaseFX multi-mode port with SC connector, relay output warning, 0 to 60°C operating temperature

PB Tech price
PB Tech price
NZD $ 644 .85
$ 644 .85
$644.85  +GST
$644.85

MOXA Industrial switch EDS-305-M-SC 5 port Unmanaged switches with 4x10/100BaseT(X) ports, 1x100BaseFX multi-mode port with SC connector, relay output warning, 0 to 60°C operating temperature

  • Brand: MOXA
  • MPN: EDS-305-M-SC V2.2.1
  • Part #: IPCMXAEDS305002
  • UPC:
PB Tech price
NZD $ 644 .85 $ 644 .85


Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$644.85  +GST
$644.85
  • Brand: MOXA
  • MPN: EDS-305-M-SC V2.2.1
  • Part #: IPCMXAEDS305002
  • UPC:

Features

The EDS-305/308 are 5-port and 8-port Ethernet switches that provide an economical solution for your industrial Ethernet connections. The built-in relay warning function alerts network engineers when power failures or port breaks occur, and the switches are designed for harsh industrial environments, such as in hazardous locations (Class I, Div. 2/ATEX). The switches comply with FCC, TUV, UL, and CE standards, and come in two model types. Standard operating temperature range models (0 to 60°C) and wide operating temperature range models (-40 to 75°C). Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-305/308 switches can be installed easily on a DIN-Rail or in a distribution box.

- Redundant dual 24 VDC power inputs
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- Transparent transmission of VLAN tagged packets
- -40 to 75°C operating temperature range (T models)

Specifications

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control

Processing Type

Store and Forward

Flow Control

IEEE 802.3x flow control, back pressure flow control

Switch Properties

MAC Table Size

1 K (EDS-305/308/309), 4 K (EDS-316)

Packet Buffer Size

n/a (EDS-305), 512 Kbit (EDS-308/309), 1.25 Mbit (EDS-316)

Interface

Fiber Ports

100BaseFX ports (SC/ST connector)

RJ45 Ports

10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection

DIP Switches

Port break alarm mask
Enable/disable broadcast storm protection (EDS-316)

LED Indicators

PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port)

Alarm Contact

1 relay output with current carrying capacity of 1 A @ 24 VDC

Power Requirements

Input Voltage

24 VDC (12 to 48 VDC), redundant dual inputs

Input Current

EDS-305: 0.13 A @ 24 V
EDS-305-M/S: 0.17 A @ 24 V
EDS-308: 0.13 A @ 24 V
EDS-308-M/S: 0.21 A @ 24 V
EDS-308-MM/SS: 0.26 A @ 24 V

Overload Current Protection

EDS-305, EDS-305-M, EDS-305-S, EDS-308: 1.1 A
EDS-308-M/S/MM/SS,: 1.6 A

Connection

1 removable 6-pin terminal blocks

Reverse Polarity Protection

Present

Physical Characteristics

Housing

Metal, IP30 protection

Dimensions

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Weight

790 g

Manufacturer Part No:
EDS-305-M-SC V2.2.1
Brand:
Product Type:
5 port
UPC
-
Product Family:
Industrial switch
Shipping Weight:
0.9 kg
PB Part No:
IPCMXAEDS305002
Product Model:
EDS-305-M-SC
Warranty: 60 months *
