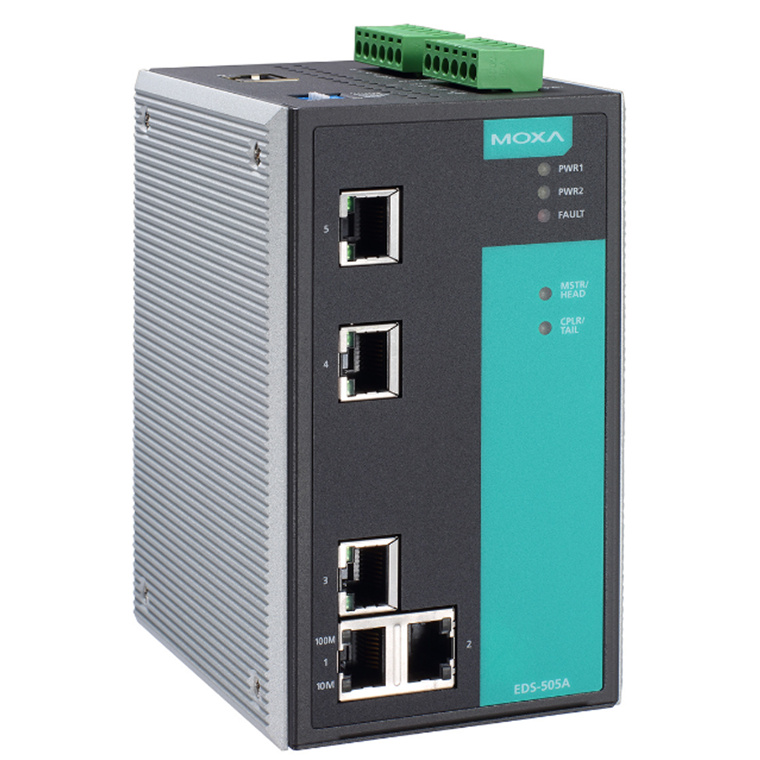

MOXA Industrial switch EDS-505A 5 port Managed Ethernet switch with 5X10/100BaseT(X) ports, 0 to 60°C operating temperature

With promo code $450.20
With promo code $450.20
Save $277
Save $277
NZD $ 727 .28
$ 727 .28
$727.28  +GST
$727.28

MOXA Industrial switch EDS-505A 5 port Managed Ethernet switch with 5X10/100BaseT(X) ports, 0 to 60°C operating temperature

ON SPECIAL
  • Brand: MOXA
  • MPN: EDS-505A
  • Part #: IPCMXAEDS505001
  • UPC:
CLEARANCE
With promo code $450.20
With promo code $450.20
Save $277 with code CLEARANCE
Save $277 with code CLEARANCE
Without promo code
NZD $ 727 .28 $ 727 .28
Part of Clearance Zone
For a limited time only, only 1 unit left!
In stock
Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$727.28  +GST
$727.28
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: MOXA
  • MPN: EDS-505A
  • Part #: IPCMXAEDS505001
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

The EDS-505A standalone 5-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-505A switches suitable for any harsh industrial environment.

- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Supports MXstudio for easy, visualized industrial network management

Additional Features and Benefits

- Command line interface (CLI) for quickly configuring major managed functions

- DHCP Option 82 for IP address assignment with different policies

- Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

- Compatible with PROFINET protocol for transparent data transmission

- Lock port function for blocking unauthorized access based on MAC address

- IGMP snooping and GMRP for filtering multicast traffic

- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

- QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

- Port Trunking for optimum bandwidth utilization

- RMON for proactive and efficient network monitoring

- SNMPv1/v2c/v3 for different levels of network management

- Bandwidth management to prevent unpredictable network status

- Automatic warning by exception through email and relay output

Specifications

Input/Output Interface

Alarm Contact Channels

2, Relay output with current carrying capacity of 1 A @ 24 VDC

Digital Input Channels

2

Digital Inputs

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Buttons

Reset button

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

EDS-505A/505A-T: 5
EDS-505A-MM-SC/MM-ST/SS-SC Series: 3
All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

100BaseFX Ports (multi-mode SC connector)

EDS-505A-MM-SC Series: 2

100BaseFX Ports (multi-mode ST connector)

EDS-505A-MM-ST Series: 2

100BaseFX Ports (single-mode SC connector)

EDS-505A-SS-SC Series: 2

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP

Ethernet Software Features

Filter

802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP

Industrial Protocols

EtherNet/IP, Modbus TCP

Management

IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP

MIB

MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy Protocols

STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2

Security

HTTPS/SSL, RADIUS, TACACS+, Port Lock, SSH, Broadcast storm protection

Time Management

NTP Server/Client, SNTP

Switch Properties

IGMP Groups

256

MAC Table Size

8 K

Max. No. of VLANs

64

Packet Buffer Size

1 Mbits

Priority Queues

4

VLAN ID Range

VID 1 to 4094

LED Interface

LED Indicators

PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL

Serial Interface

Console Port

RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface

Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection

2 removable 6-contact terminal block(s)

Input Voltage

12/24/48 VDC, Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Input Current

EDS-505A/EDS-505A-T: 0.21 A @ 24 VDC
EDS-505A-MM-SC/MM-ST/SS-SC Series: 0.29 A @ 24 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)

Weight

1040 g (2.3 lb)

Installation

DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Manufacturer Part No:
EDS-505A
Brand:
MOXA
Product Type:
5 port
UPC
-
Product Family:
Industrial switch
Shipping Weight:
1.1 kg
PB Part No:
IPCMXAEDS505001
Product Model:
EDS-505A
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
