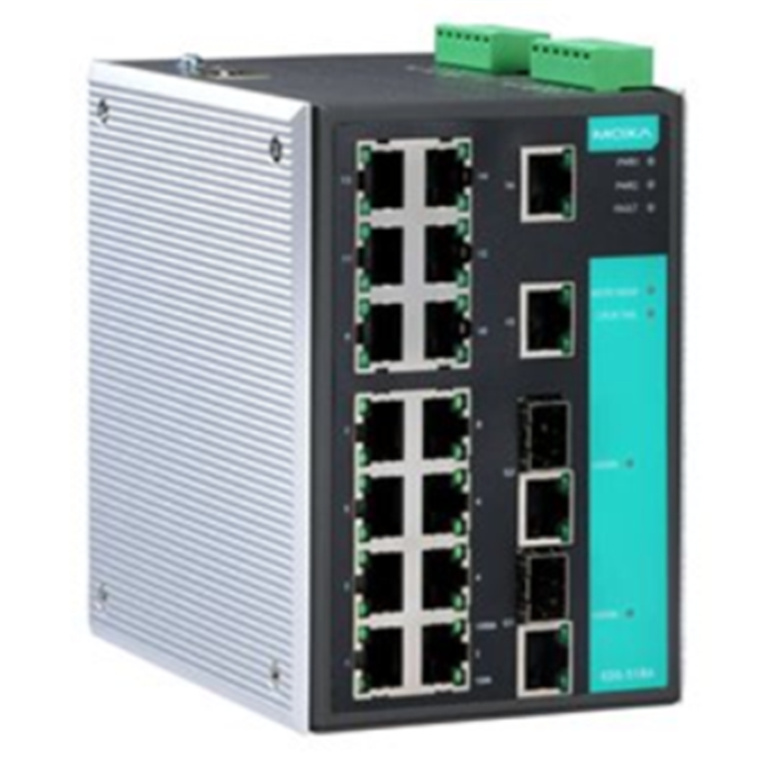

MOXA Industrial switch EDS-518A 18 port Managed Gigabit switch, 0 to 60°C operating temperature 16 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 1000BaseSFP slots for adding SFP-1G Series Gigabit Ethernet modules

PB Tech price
PB Tech price
NZD $ 3,755 .95
$ 3,755 .95
$3,755.95  +GST
$3,755.95

MOXA Industrial switch EDS-518A 18 port Managed Gigabit switch, 0 to 60°C operating temperature 16 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 1000BaseSFP slots for adding SFP-1G Series Gigabit Ethernet modules

Stock available
  • Brand: MOXA
  • MPN: EDS-518A v3.1.0
  • Part #: IPCMXAEDS518001
  • UPC:
PB Tech price
NZD $ 3,755 .95 $ 3,755 .95
In stock at Supplier
Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$3,755.95  +GST
$3,755.95
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: MOXA
  • MPN: EDS-518A v3.1.0
  • Part #: IPCMXAEDS518001
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

The EDS-518A standalone 18-port managed Ethernet switches provide 2 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The Ethernet redundancy technologies Turbo Ring and Turbo Chain (recovery time < 20 ms) increase the reliability and speed of your network backbone. The EDS-518A switches also support advanced management and security features.

Additional Features and Benefits

- Command line interface (CLI) for quickly configuring major managed functions

- DHCP Option 82 for IP address assignment with different policies

- Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

- Compatible with PROFINET protocol for transparent data transmission

- Supports the ABC-01-USB (Automatic Backup Configurator) for system configuration backup

- IGMP snooping and GMRP for filtering multicast traffic

- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

- QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism

- Port Trunking for optimum bandwidth utilization

- SNMPv1/v2c/v3 for different levels of network management

- RMON for proactive and efficient network monitoring

- Bandwidth management to prevent unpredictable network status

- Automatic warning by exception through email and relay output

Specifications

Input/Output Interface

Alarm Contact Channels

Resistive load: 1 A @ 24 VDC

Digital Inputs

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

EDS-518A/518A-T: 16
EDS-518A-MM-SC/MM-ST/SS-SC Series: 14
EDS-518A-SS-SC-80: 14
All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

100BaseFX Ports (multi-mode SC connector)

EDS-518A-MM-SC Series: 2

100BaseFX Ports (multi-mode ST connector)

EDS-518A-MM-ST Series: 2

100BaseFX Ports (single-mode SC connector)

EDS-518A-SS-SC Series: 2

100BaseFX Ports, Single-Mode SC Connector, 80 km

EDS-518A-SS-SC-80 Series: 2

Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP)

2

Ethernet Software Features

Filter

802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP

Industrial Protocols

EtherNet/IP, Modbus TCP

Management

IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP

MIB

MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy Protocols

STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2

Security

HTTPS/SSL, TACACS+, Port Lock, RADIUS, SSH, Broadcast storm protection

Time Management

NTP Server/Client, SNTP

Switch Properties

IGMP Groups

256

MAC Table Size

8 K

Max. No. of VLANs

64

Packet Buffer Size

2 Mbits

Priority Queues

4

VLAN ID Range

VID 1 to 4094

LED Interface

LED Indicators

PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port),1000M (Gigabit port), MSTR/HEAD, CPLR/TAIL

Serial Interface

Console Port

RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface

Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection

2 removable 6-contact terminal block(s)

Input Current

EDS-518A/518A-T: 0.44 A @ 24 VDC
EDS-518A-MM-SC/MM-ST/SS-SC Series: 0.52 A @ 24 VDC
EDS-518A-SS-SC-80: 0.52 A @ 24 VDC

Input Voltage

24 VDC, Redundant dual inputs

Operating Voltage

12 to 45 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)

Weight

1630 g (3.60 lb)

Installation

DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Manufacturer Part No:
EDS-518A v3.1.0
Brand:
MOXA
Product Type:
18 port
UPC
-
Product Family:
Industrial switch
Shipping Weight:
2.2 kg
PB Part No:
IPCMXAEDS518001
Product Model:
EDS-518A
Warranty: 60 months *
