MOXA ioThinx 4500 Series 45MR-3800 8 AIs, -10 to 10 V or 0 to 10 V, -20 to 60°C operating temperature Advanced Controllers & I/Os, ioThinx 4500 Series (45MR) Modules

With promo code $150.55
With promo code $150.55
Save $518
Save $518
NZD $ 669 .09
$ 669 .09
$669.09  +GST
$669.09

MOXA ioThinx 4500 Series 45MR-3800 8 AIs, -10 to 10 V or 0 to 10 V, -20 to 60°C operating temperature Advanced Controllers & I/Os, ioThinx 4500 Series (45MR) Modules

INDUSTRIAL EDGE CONNECTIVITY
  • Brand: MOXA
  • MPN: 45MR-3810
  • Part #: IPCMXAIO4500011
  • UPC:
CLEARANCE
With promo code $150.55
With promo code $150.55
Save $518 with code CLEARANCE
Save $518 with code CLEARANCE
Without promo code
NZD $ 669 .09 $ 669 .09
Part of Clearance Zone
For a limited time only, only 1 unit left!
In stock
Delivery: Order now and it ships tomorrow
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$669.09  +GST
$669.09
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: MOXA
  • MPN: 45MR-3810
  • Part #: IPCMXAIO4500011
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

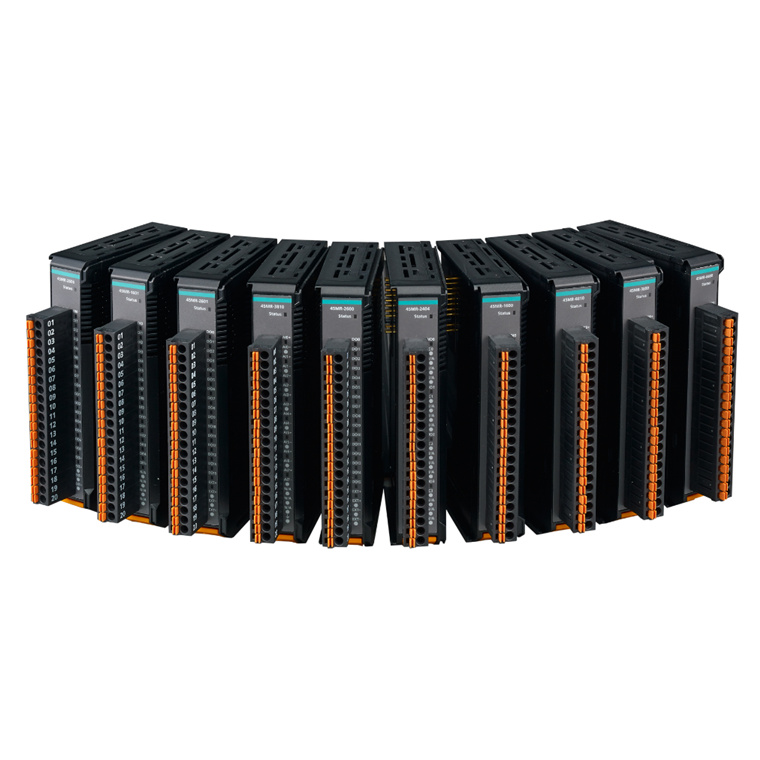

Moxa's ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.

Easy Tool-Free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.

- I/O modules include DI/Os, AI/Os, relays, and other I/O types
- Power modules for system power inputs and field power inputs
- Easy tool-free installation and removal
- Built-in LED indicators for IO channels
- Wide operating temperature range: -40 to 75°C (-40 to 167°F)
- Class I Division 2 and ATEX Zone 2 certifications

Specifications

Input/Output Interface

Analog Input Channels

8

Isolation

3k VDC or 2k Vrms

Analog Inputs

Connector

Spring-type Euroblock terminal

I/O Mode

Voltage

I/O Type

Differential

Resolution

16 bits

Input Range

0 to 10 VDC
±10 VDC

Over-Voltage Protection

-25 to +30 VDC (power on)
-35 to +35 VDC (power off)

Accuracy

±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C

Sampling Rate

All channels: 100 samples/sec
Per channel: 12.5 samples/sec
Single channel: 100 samples/sec

Input Impedance

10 mega-ohms (min.)

Power Consumption

System Power

187 mA @ 3.3 VDC

Physical Characteristics

Housing

Plastic

Dimensions

19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)

Weight

79 g (0.175 lb)

Installation

DIN-rail mounting

Strip Length

I/O cable, 9 to 10 mm

Wiring

18 to 24 AWG

Environmental Limits

Operating Temperature

-20 to 60°C (-4 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 4000 meters

Manufacturer Part No:
45MR-3810
Brand:
MOXA
Product Type:
-
UPC
-
Product Family:
ioThinx 4500 Series
Shipping Weight:
1 kg
PB Part No:
IPCMXAIO4500011
Product Model:
45MR-3800
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
