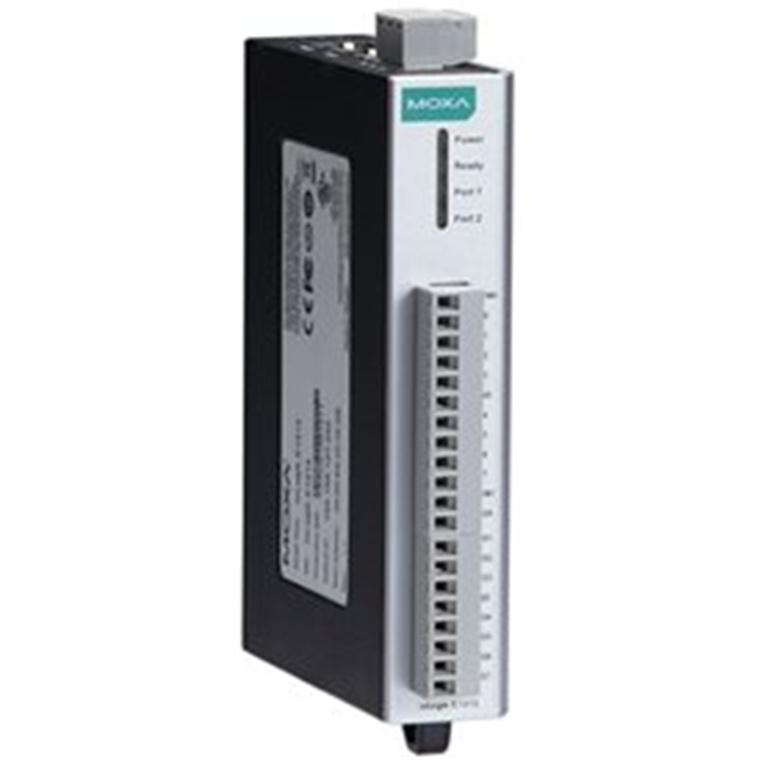

MOXA Universal Controller ioLogik E1240-T Universal I/O, 8 AIs, -40 to 75°C operating temperature - Universal Controllers & I/Os, ioLogik E1200 Series
- Brand: MOXA
- MPN: ioLogik E1240-T
- Part #: IPCMXAIOE1200004

Product URL: https://www.pbtech.com/pacific/product/IPCMXAIOE1200004/MOXA-Universal-Controller-ioLogik-E1240-T-Universa
Features
Data sheet Download Here: https://www.moxa.com/getmedia/368c4382-67cf-4a6a-8457-ac5c7ce10230/moxa-iologik-e1200-series-datasheet-v2.1.pdf
Universal I/O, 8 AIs, -40 to 75°C operating temperature
- User-definable Modbus TCP Slave addressing
- Supports EtherNet/IP Adapter mode1
- Supports RESTful API for IIoT applications
- 2-port Ethernet switch for daisy-chain topologies
- Saves time and wiring costs with peer-to-peer communications
- Active communication with MX-AOPC UA Server
- Supports SNMP v1/v2c
- Easy mass deployment and configuration with ioSearch utility
- Friendly configuration via web browser
- Simplifies I/O management with MXIO library for Windows or Linux
- Class I Division 2, ATEX Zone 2 certification2
- Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Specifications
Input/Output Interface
Analog Input Channels
ioLogik E1240 models: 8
ioLogik E1242 models: 4
Analog Output Channels
ioLogik E1241 models: 4
Configurable DIO Channels (by jumper)
ioLogik E1212 models: 8
ioLogik E1213/E1242 models: 4
Digital Input Channels
ioLogik E1210 models: 16
ioLogik E1212/E1213 models: 8
ioLogik E1214 models: 6
ioLogik E1242 models: 4
Digital Output Channels
ioLogik E1211 models: 16
ioLogik E1213 models: 4
Isolation
3k VDC or 2k Vrms
Relay Channels
ioLogik E1214 models: 6
RTD Channels
ioLogik E1260 models: 6
Thermocouple Channels
ioLogik E1262 models: 8
Buttons
Reset button
Digital Inputs
Connector
Screw-fastened Euroblock terminal
Counter Frequency
250 Hz
Digital Filtering Time Interval
Software configurable
Dry Contact
On: short to GND
Off: open
I/O Mode
DI or event counter
Points per COM
ioLogik E1210/E1212 models: 8 channels
ioLogik E1213 models: 12 channels
ioLogik E1214 models: 6 channels
ioLogik E1242 models: 4 channels
Sensor Type
Dry contact
Wet contact (NPN or PNP)
Wet Contact (DI to COM)
On: 10 to 30 VDC
Off: 0 to 3 VDC
Digital Outputs
Connector
Screw-fastened Euroblock terminal
Current Rating
ioLogik E1211/E1212/E1242 models: 200 mA per channel
ioLogik E1213 models: 500 mA per channel
I/O Mode
DO or pulse output
I/O Type
ioLogik E1211/E1212/E1242 models: Sink
ioLogik E1213 models: Source
Over-Current Protection
ioLogik E1211/E1212/E1242 models: 2.6 A per channel @ 25°C
ioLogik E1213 models: 1.5 A per channel @ 25°C
Over-Temperature Shutdown
175°C (typical), 150°C (min.)
Over-Voltage Protection
35 VDC
Pulse Output Frequency
500 Hz (max.)
